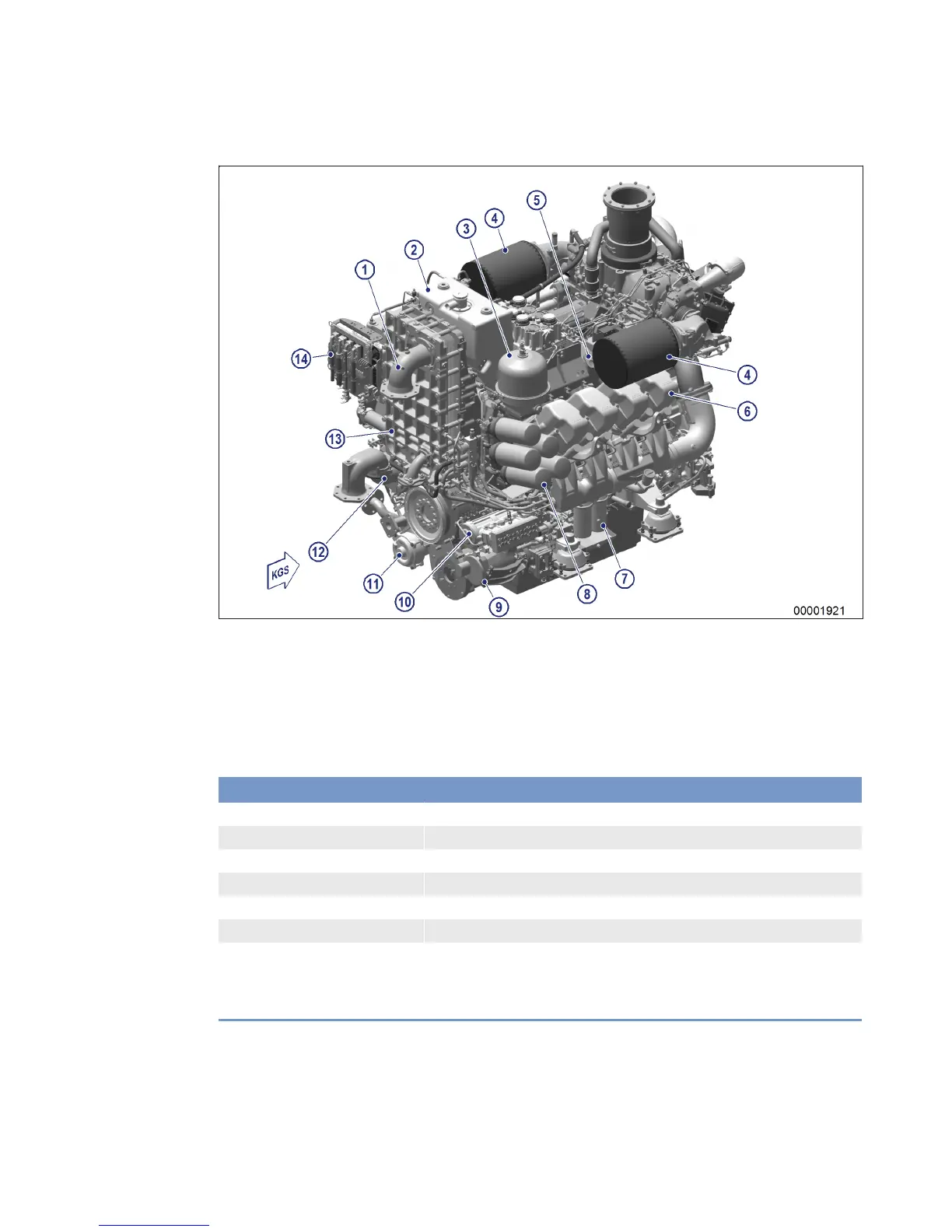

Overview with engine-mounted heat exchanger, free end
1 Raw-water outlet
2 Coolant expansion tank
3 Centrifugal oil filter
4 Dry-type air filter
5 Exhaust manifold
6 Cylinder head
7 Fuel filter
8 Oil filter
9 Battery-charging generator
(optional)
10 HP fuel pump
11 Bilge pump (option)
12 Raw water pump
13 Plate-core heat exchanger
14 Engine management and
monitoring
KGS Free end
Engine model designation
Key to engine model designation 8V4000Mxyz
8 Number of cylinders
V Cylinder arrangement: V engine
4000 Series
M Application (M= Marine)
x Application load profile (0, 1, 2, 3 ... 9)
y Design index (0, 1, 2, 3, ..., 9)
z R (power / speed reduction)
L (enhanced power / speed)
S (60 Hz)
F (50 Hz)
