MTU 8V4000Mx4 - Page 53

Designation Connection
Adaptation X1 Governor ECU
X3 Governor ECU Power
X11 EMU Power
X37 Start interlock
X52 EIM engine box
XB19 Starting-air pressure
XD1 Dialog unit
XY1 Starter

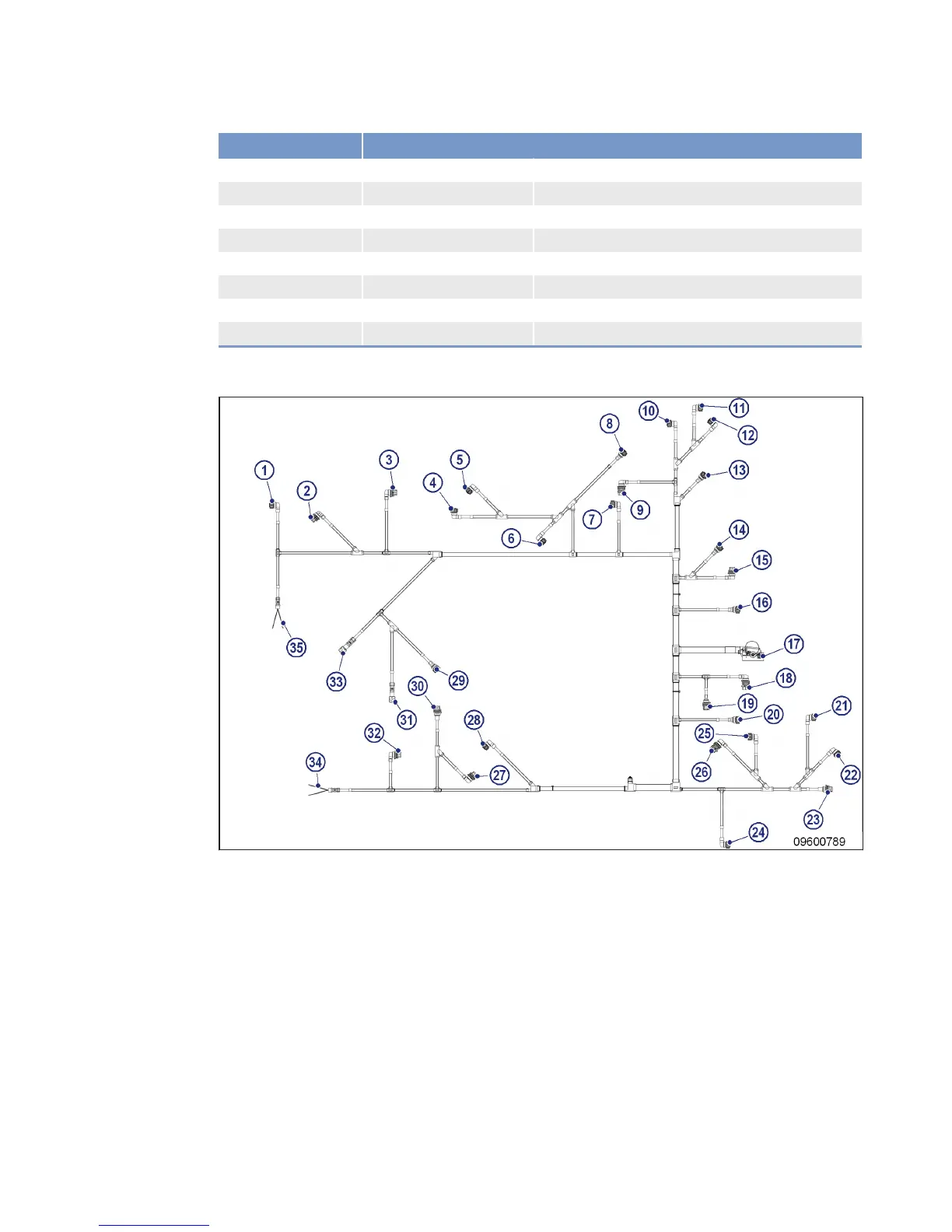

Engine wiring harness for sensors
1 B10
2 B4.21
3 B44.2
4 B5.1
5 B7
6 B5.3
7 B33
8 B48
9 XG03
10 B34.1
11 B34.3
12 B34.2
13 F46
14 M8
15 B1
16 B6
17 X2
18 X37
19 XF33
20 B54
21 B5.8
22 B3
23 B49
24 B16
25 F33
26 XXF33
27 B4.22
28 B9
29 B50
30 B44.1
31 Y26
32 B13
33 Y27
34 S37.2
35 S37.1
