Basic control principles
Operating the terminal
Pushing the rotary
encoder
Clicks on the marked line.
Activates the marked parameter.
Confirms the input.

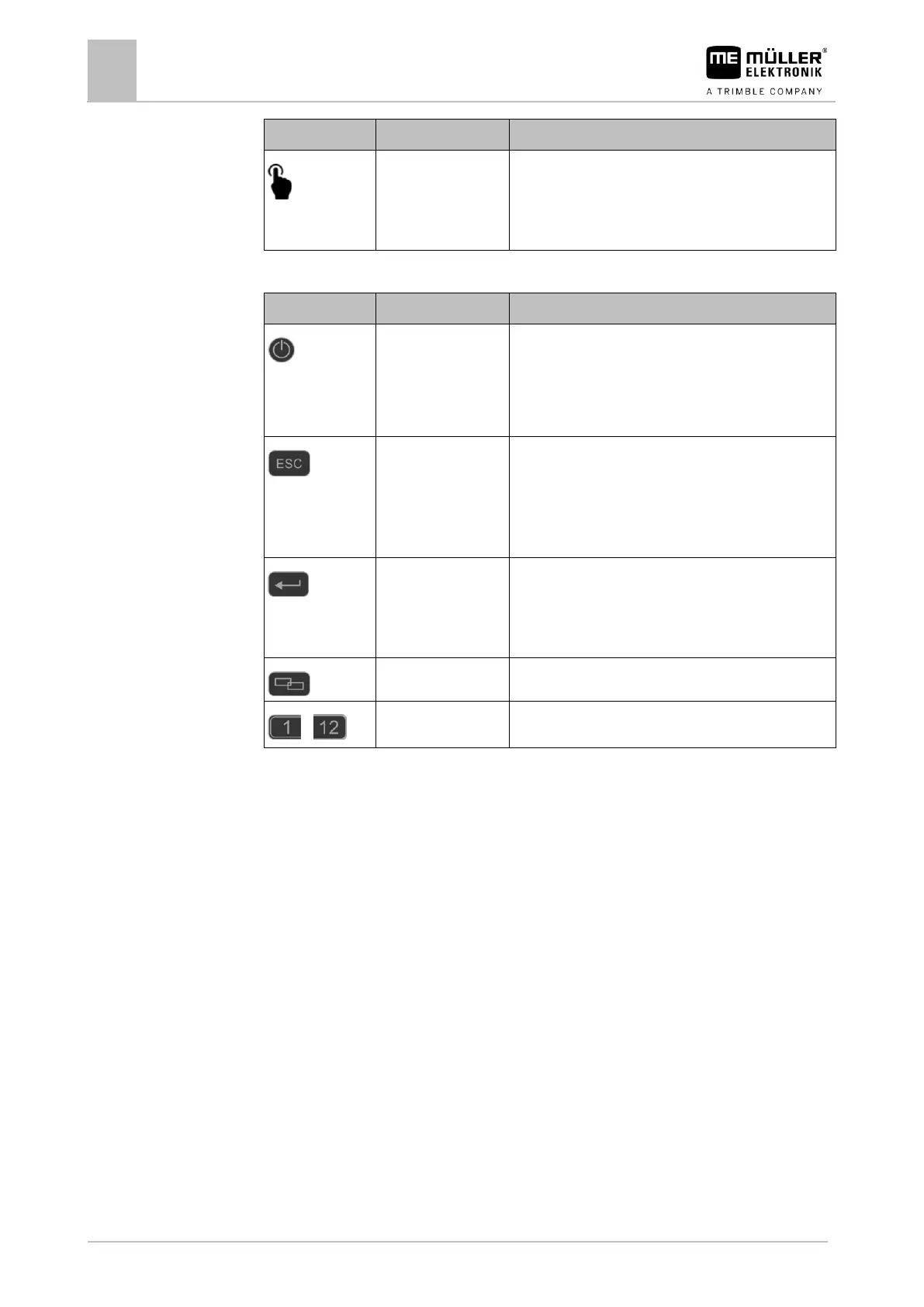

The following functions can be executed with the buttons on the casing:
Pressing the button for 1 second: Switches the terminal
on.
Pressing the button for 2 seconds: Switches the terminal
off.
Sends a cancel signal to the job computer.
Cancels the input of a value. The input box is exited and
the previous valid value is restored.
Acknowledges alarms.
Opens an input box.
Confirms the input.
Acknowledges alarms.
Switches to a different app.
Performs the respective function shown on the screen.
Operating the terminal using the screen
With the touch function of the screen, you can execute the following actions directly by pressing on
the respective area of the screen:
▪ Executing of functions using the respective function icons.
▪ Selecting parameters.
▪ Changing values for individual parameters.
