Examples,

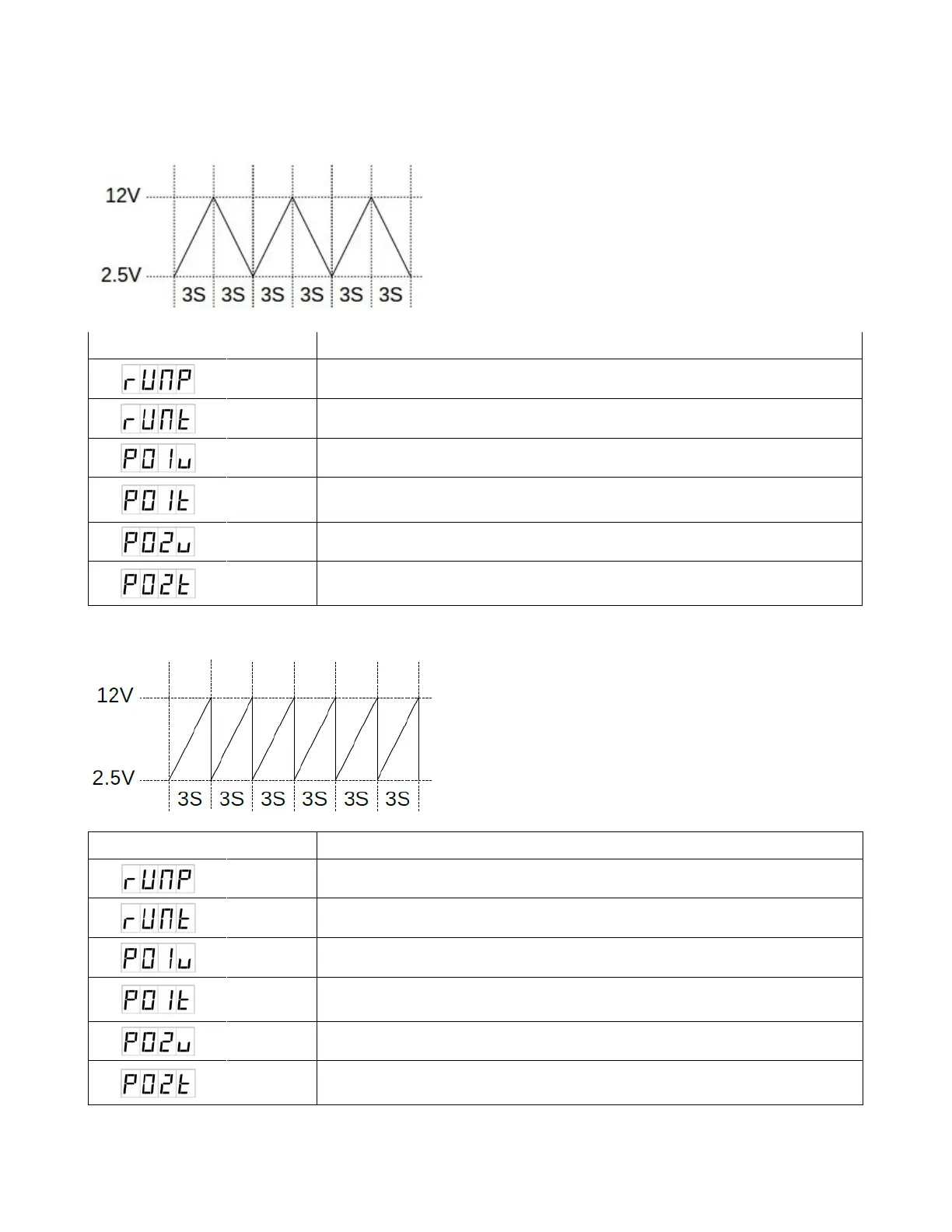

Example 1 – Triangular Waveform.
Setting value
Set Item Value Explaination
2
Set 2 steps to run. Step 1 and Step 2
3
Run 3 cycle only
2.5
Set Step 1 voltage to 2.5V
3
Set Step 1 run time to 3s
(Ramp UP from step 1 voltage to step 2 voltage in 3s)
12
Set Step 2 voltage to 12V
3
Set Step 2 run time to 3s
(Ramp DOWN from step 2 voltage to step 1 voltage in 3s)
Example 2 – Saw-tooth waveform
Setting value
Set Item Value Explaination
2
Set 2 steps to run. Step 1 and Step 2
6
Run 6 cycle only
2.5
Set Step 1 voltage to 2.5V
3
Set Step 1 run time to 3s
(Ramp UP from step 1 voltage to step 2 voltage in 3s)
12
Set Step 2 voltage to 12V
0
Set Step 2 run time to 0s
(Edge DOWN from step 2 voltage to step 1 voltage in 0s)
P.12
