5. INDICATORS AND CONTROLS

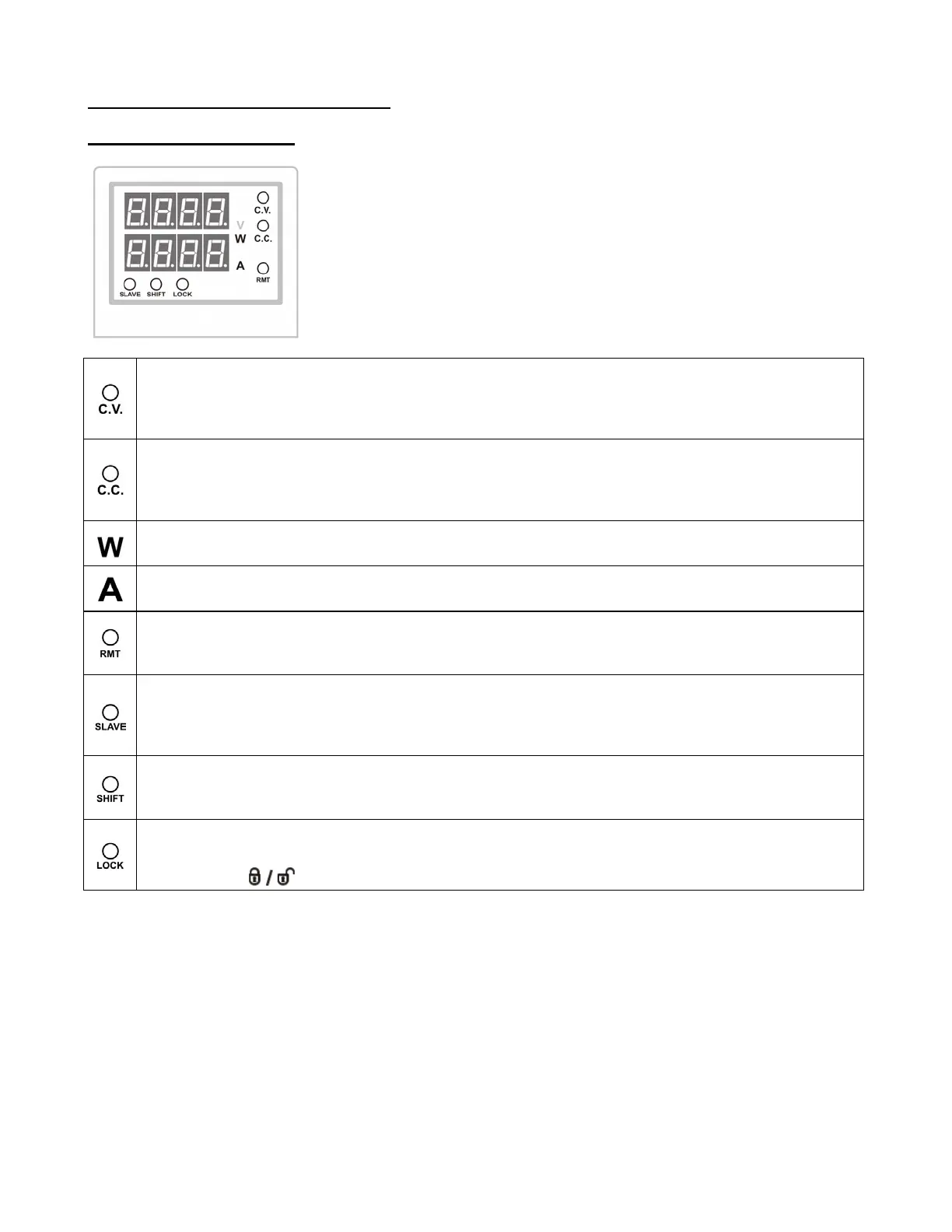

5.1 Display and Indications
Constant Voltage Mode
Indicate the Power Supply is working in Constant Voltage mode. The output voltage of power supply is
remains constant at the set voltage in this mode. The power supply will be working in this mode while
the loading current is least than the set current.
Constant Current Mode
Indicate the Power Supply is working in Constant Current mode. The output current of power supply is
remains constant at the set current provided that the loading is sufficient to draw current equal
to or larger than set current.
Watt-meter
Indicate the lower part 4 digits LED is watt-meter. The value is showing output power.
Amp-meter
Indicate the lower part 4 digits LED is watt-meter. The value is showing output power.
Remote Control
Indicate the Power Supply is under remote control. Whenever you connection power supply using
control software through USB or Ethernet. This LED will be ON.
SLAVE
Indicate the Power Supply is in slave mode and control by master unit. The voltage and current setting
of slave units are being set to value of master unit. The button and knob of slave units are being locked.
All the adjustment should be done in master unit. (Details refer to Factory reset section)
SHIFT
Indicate the Shift key is pressed and the second function of buttons will be used. The second function of
buttons include ∆V/∆t, A/W, UVL, UCL
LOCK
Indicate the panel of power supply is being locked. This LED will being ON in 2 conditions. The first is
manually press button. The other condition is the power supply is under remote control.
