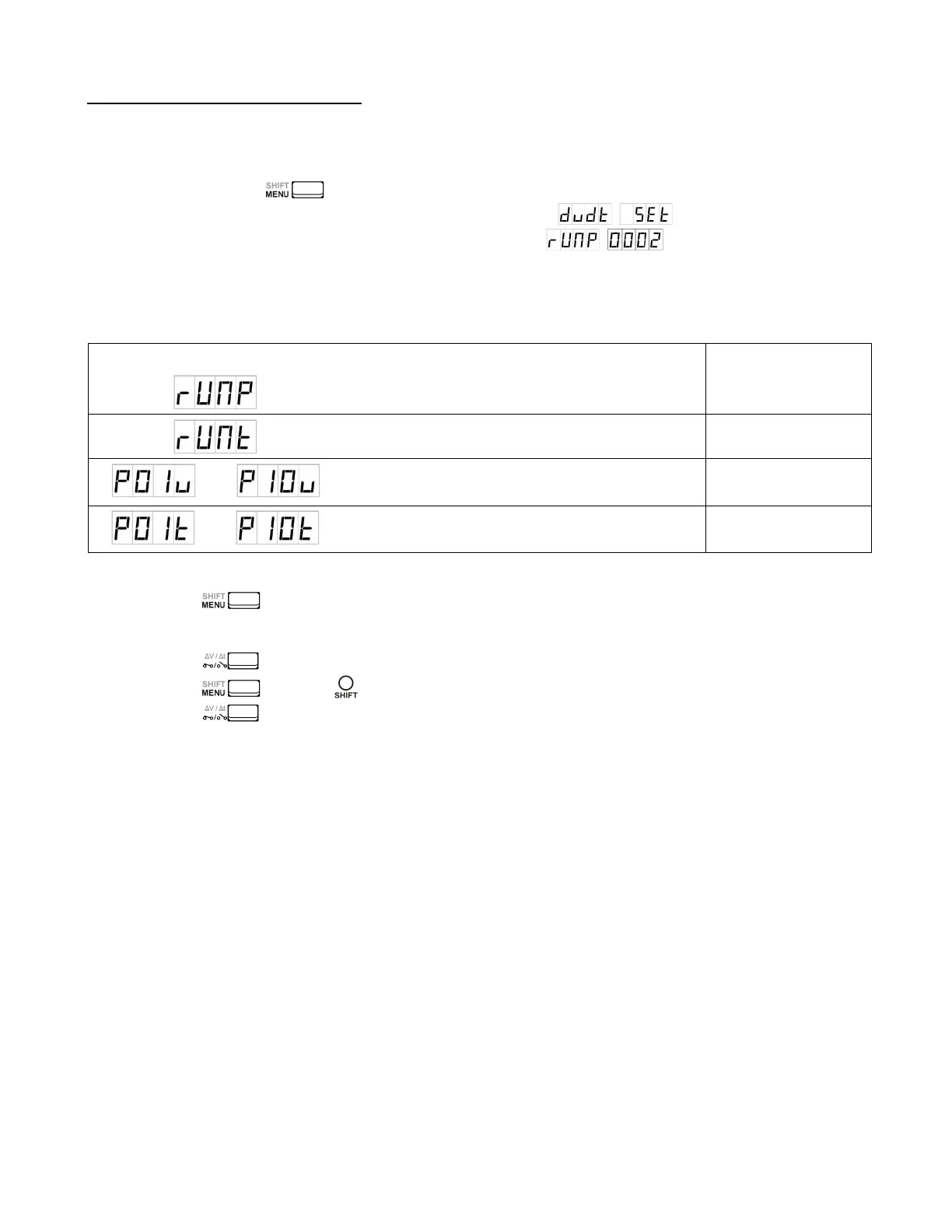

6.7 Ramp Up/ Ramp Down generator
The MP710083 has function to generate waveform with ramp up and ramp down. It allow to set 10 steps for wave.
Steps to setup ramp up/ramp down wave;
Step 1 - Press and hold to enter menu
Step 2 - Rotate Volt. Knob to select dvdt menu. The display shows
Step 3 - Press Volt. Knob to enter dvdt setting. The display show
Step 4 - Rotate VOLT. Knob to set items.
Step 5 - Rotate Curr. Knob to change value of set items
The below table shows the available set items and value range for dvdt menu.
Set Item Description Value Range
Number of steps to be use for wave form
generation. Must start from step 1.
2-10
Number of cycle to run for wave form 0 to 999
0 means run forever
…..
Step 1 to Step 10 Voltage setting (in V) 0 to 36V
…..
Step 1 to Step 10 run time length (in S) 0 to 1200s
Step 6 - Press Volt. Knob to confirm and exit.
Step 7 - Press to exit menu.
Steps to Run ramp up/ramp down wave;
Step 1 - Press to switch on output
Step 2 - Press and see LED ON.
Step 3 - Press to run dvdt program.
P.11
