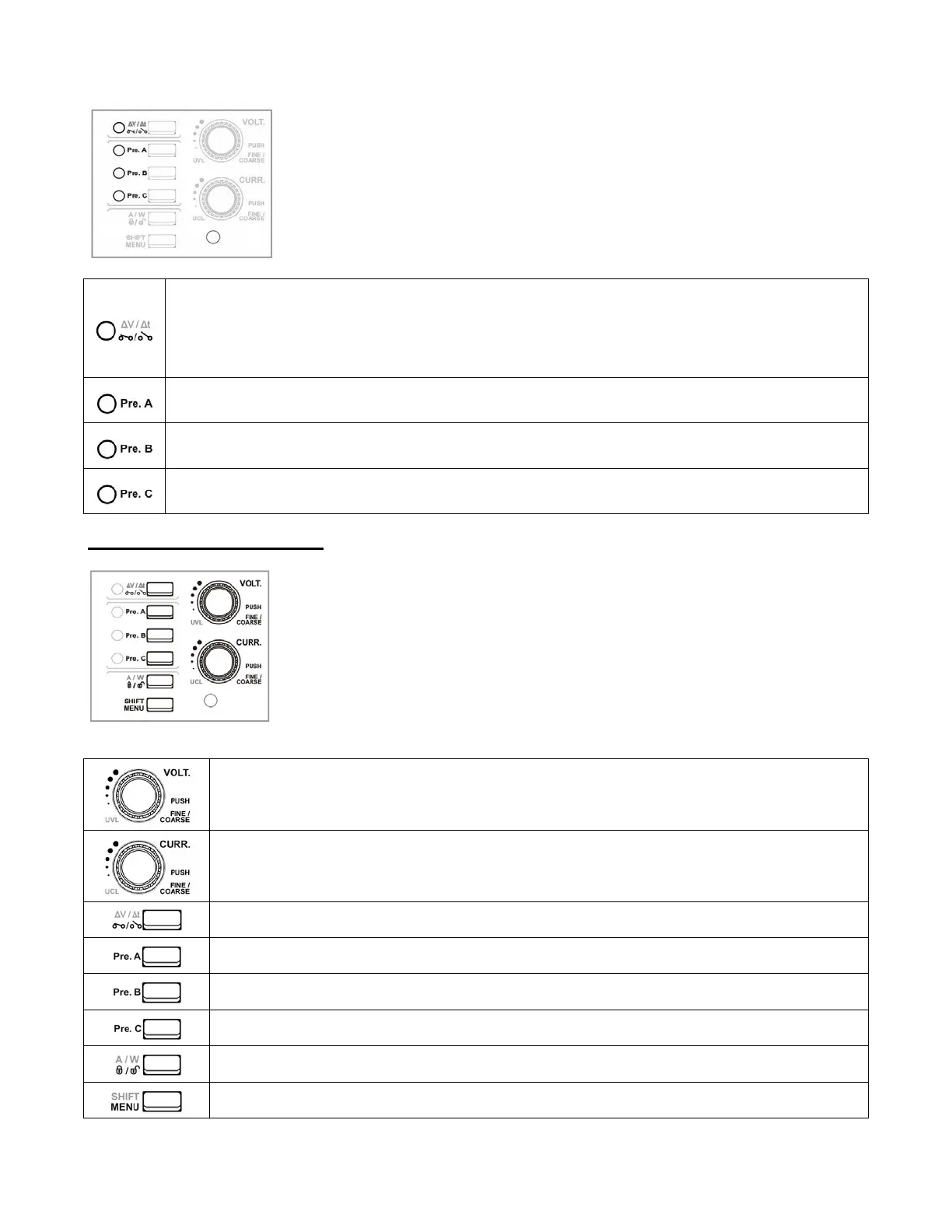

Output ON/OFF or Ramp UP/Ramp Down program running
This LED has two indications.
a. When it is solid ON, it indicate output ON/OFF status.
b. When it is Flashing, it indicate ramp up/ramp down program is running (Refer to Ramp Up / Ramp
Down generator section)
Preset A
Indicate Preset A is selected, the output voltage and current will set preset A value.
Preset B
Indicate Preset B is selected, the output voltage and current will set preset B value.
Preset C
Indicate Preset C is selected, the output voltage and current will set preset C value.
5.2 Control Buttons and Knobs
The power supply has 2 knobs and 6 buttons.
Voltage adjust knob
Current adjust knob
Output ON / OFF button
Preset program A selection button
Preset program B selection button
Preset program C selection button
LOCK / UNLOCK button
Menu button
P.7
