MD-1000I / MD-2000I / MD-3000I System Function
MD Series 54
5.2 UPS Operating Mode - Normal

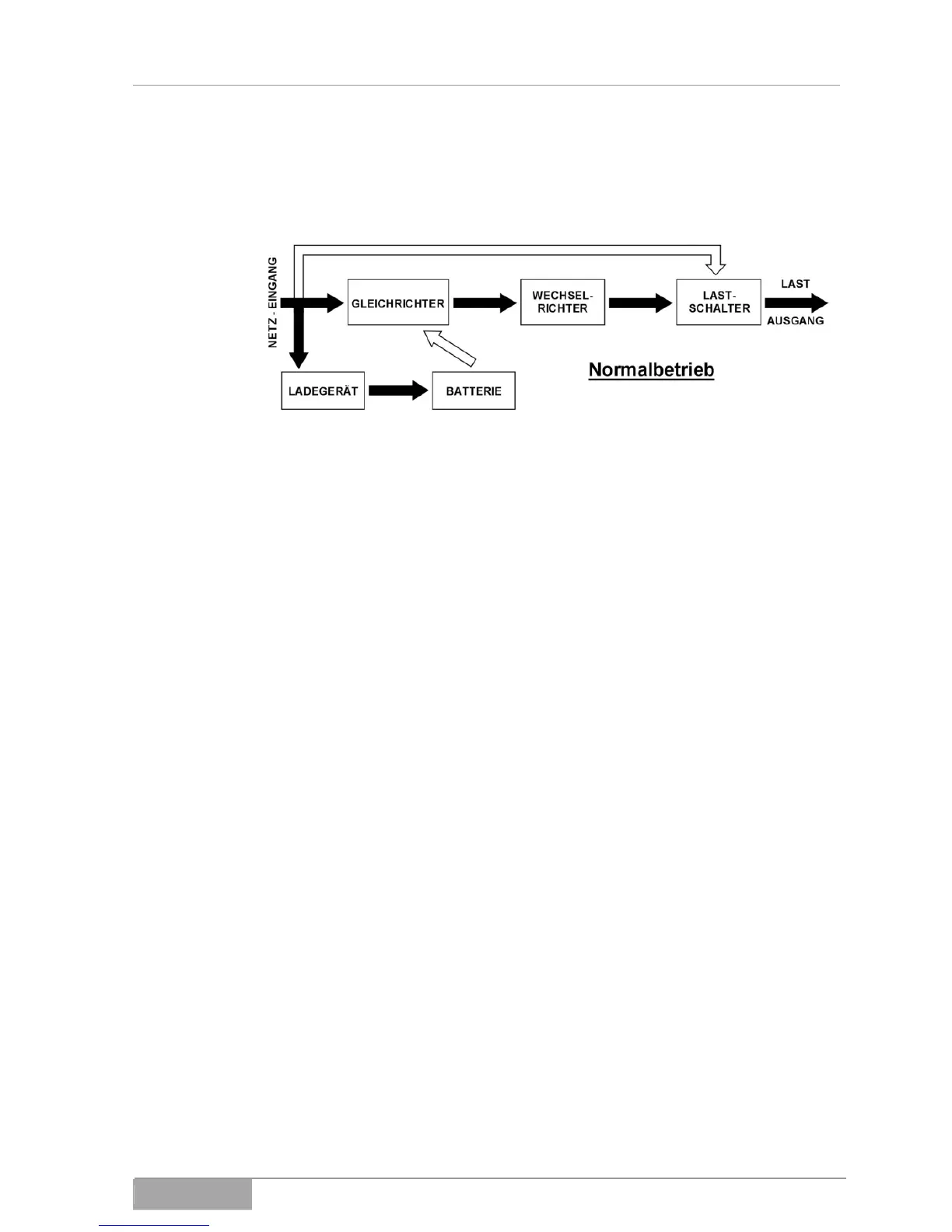

Normal UPS operation is as shown below:
Fig. 5-2 - 1 During normal power supply
The inverter converts DC into clean, stable AC. Output LEDs 2 and 4 light.
