13

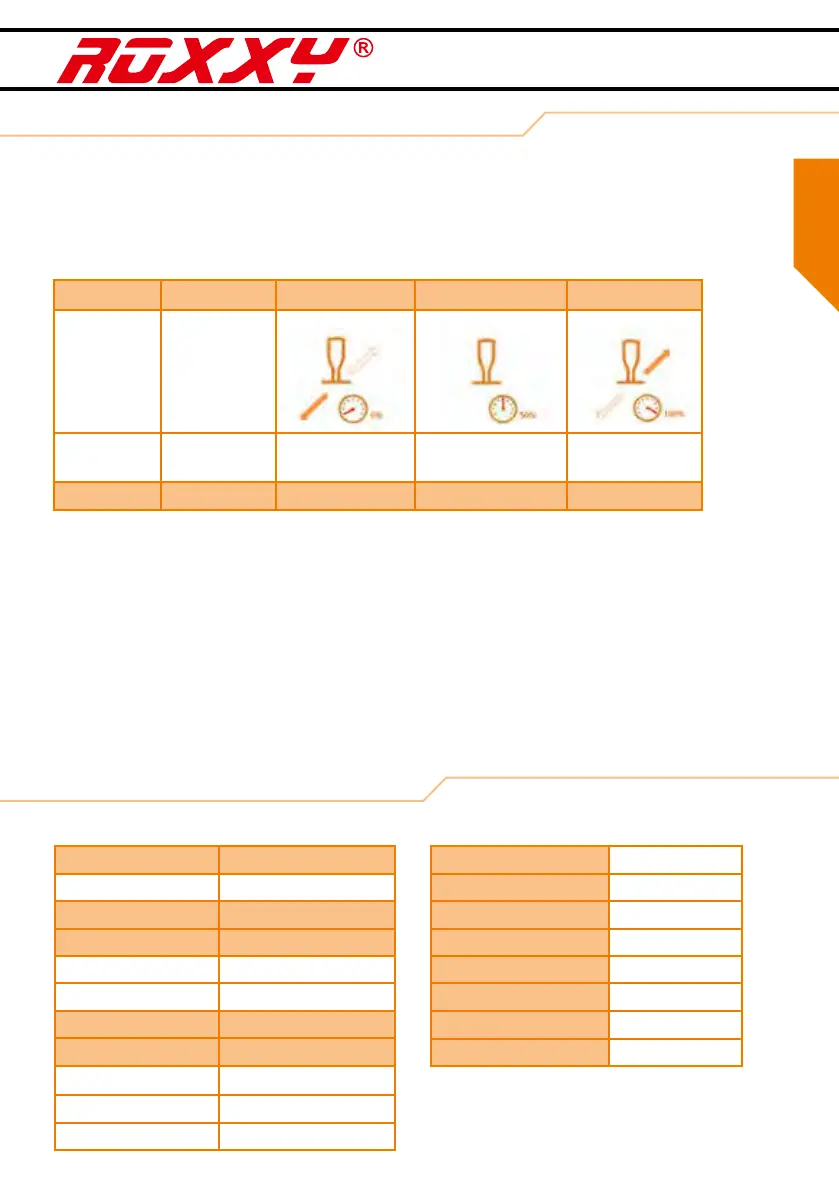

7.1 Conguring the controller using the throttle stick
Select level Parameter Idle Centre Full throttle
9.1
9 x
Car / boat mode* On On
End of programming
Disconnect the battery from the controller when
programming is complete.
Additional notes:
Programming the controller using the throttle stick ena-
bles you to activate / disable the standard functions as
listed in the table.
The basic functions for braking power, soft-start, torque,
governor mode, governor response, motor pole count
and gearbox reduction ratio are set up at the factory
as standard. If you wish to congure the controller in a
different, expanded manner, you can quickly and simply
do this using MULTIPLEX Launcher and the appropriate
MULTIPLEX USB lead (Order No. #85149).
Continuation of table on page 12 - car / boat mode
If you have previously activated car / boat mode (for-
ward / reverse function), this step deliberately leaves
the mode in the stick centre position.
Please note:
Once you have completed the programming proce-
dure, the throttle Off position is always located at
the Centre position of the stick.
7.2 Conguration options using a PC
Telemetry settings
Voltage Address
Warning threshold
Current Address
Battery charge Address
Warning threshold
Reset voltage
Temperature Address
RPM Address
Warning threshold
Reduction ratio
2 ...32 poles
Supplementary adjustment facilities
Braking power 4 stages
Start-up torque 5 stages
Soft-start 5 stages
Motor timing 0-25°
Governor response 5 stages
Low-voltage cut-off 5 ... 60 Volt
Governor Stabilize On / Off
BEC voltage 5.0 ... 8.0 Volt
GB
