Multiplex Royal SX 9

Manual
99
21.1.4. DELTA model template
Suitable for:
Deltas / flying wings, powered or unpowered, jets.
Typical models:
TWIN-JET, FunJet, TWISTER.
Assigned transmitter controls and switches:
Assignment used: POWER
Not used: Combi-Switch (N),
Spoiler (E), Flap (F)
You will find an overview of the global assignment of
transmitter controls and switches in Chapter ( 22.1.).

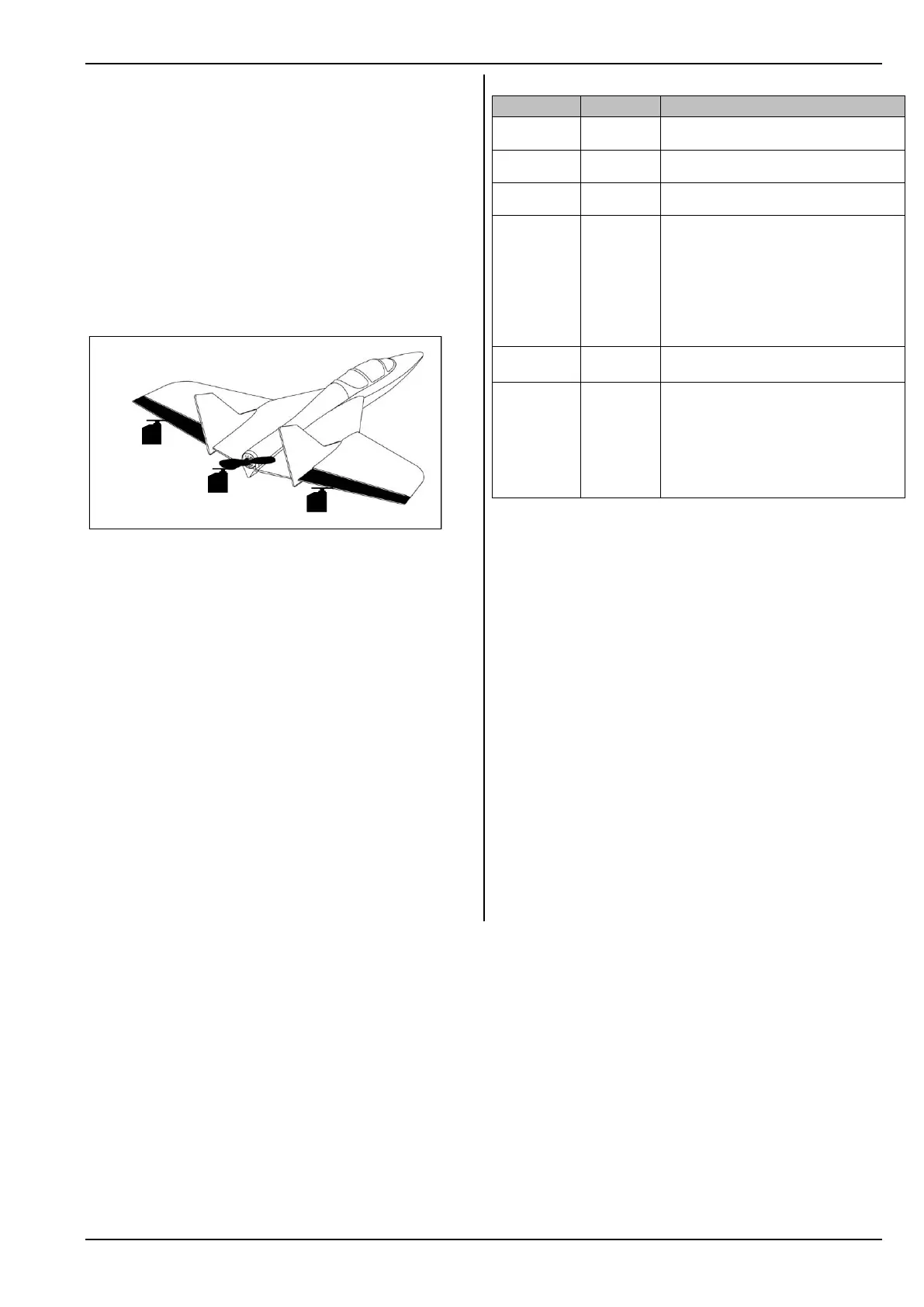

Assigned servos / receiver outputs:
1
5
4
DELTA+
Throttle
DELTA+
Servo configuration MPX-UNI
Timer setting: Motor run time
Sum timer ´ controlled by Throttle (‡).
Fine-tuning:
!
Steps a. and b. ( 21.1.),
Check functions.
c. Using receivers with fewer than five channels
Change servo assignment: K Servo, Assign-
ment:
e.g. 1 DELTA+, 2 DELTA+, 3 Throttle.
d. Control surface travels too large or too small
G , select DELTA+ mixer, adjust Elevator and / or
Aileron inputs.
e. Activate throttle to elevator mixer
G, select DELTA+, select Thr -Tr input,
set 10% down-elevator.
If you wish to adjust the value in flight, allocate it to
one of the 3-D digi-adjusters ( 20.1.).
Mixers:
Mixer
Input
Note
Combi Sw.
Mixer: Combi-Switch
 12.11.2.
Ail.Diff.
Aileron differential
 12.6.
Controls
Mix
Mixer: Controls Mix
 16.1.3.
DELTA+
Aileron
Setting for maximum deflection of the
elevons (opposite directions) when the
transmitter control Aileron is moved:
trv = Symmetrical travels
(Same aileron travels up and
down)
If you require differential aileron travel,
use Ail.Diff.
Elevator
trv' = Elevon travel for down-elevator
trv# = Elevon travel for up-elevator
Thr. -Tr
Elevator trim correction for throttle (mo-
tor):
dead. = Dead-zone / from which
point does elevator
correction take effect?
trv = Elevator compensation for full-
throttle
