Multiplex Royal SX 9

Manual
95
21.1.1. BASIC model template
Suitable for:
Simple power models
with one or two aileron servos,
with spoilers (airbrakes or landing flaps).
Typical models:
EASYCUB, MiniMag, Mentor,
TwinStar, Big Lift.
Assigned transmitter controls and switches:
Assignment used: POWER
Not used: Flap (F)
You will find an overview of the global assignment of
transmitter controls and switches in Chapter ( 22.1.).

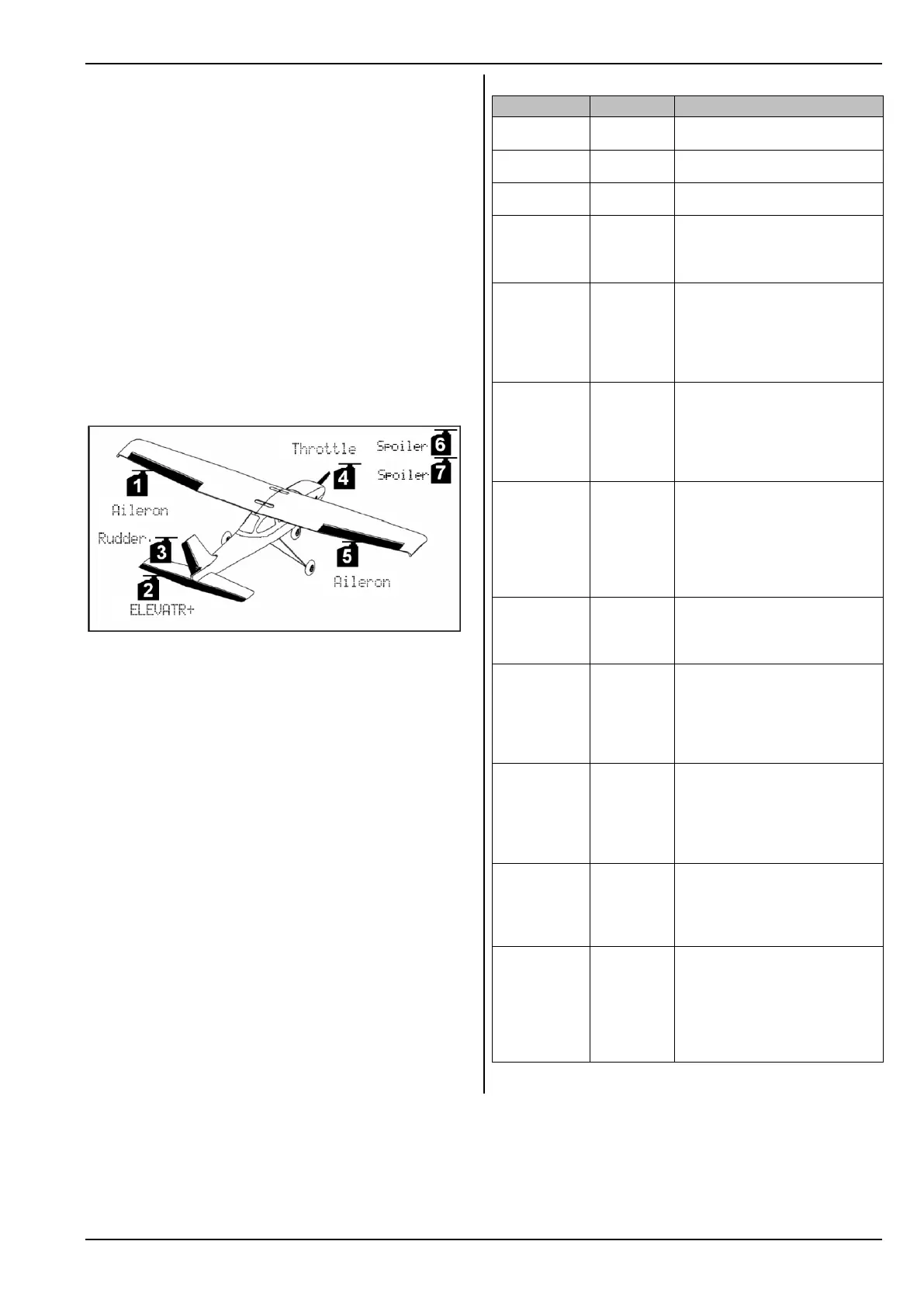

Assigned servos / receiver outputs:
To ensure that the template can be used for as many
models as possible, more servos are assigned than
are required for the model shown in the illustration:
Servo configuration MPX-UNI
Timer setting: motor run time
Sum timer ´ controlled by Throttle (‡).
Fine-tuning:
!
Steps a. and b. ( 21.1.),
Check functions.
c. Activate throttle to elevator mixer
G, select ELEVATR+, select Thr -Tr input,
set 10% down-elevator.
If you wish to adjust the value in flight, allocate it to
one of the 3-D digi-adjusters ( 20.1.).
Mixers:
Mixer
Input
Note
Combi Sw.
Mixer: Combi-Switch
 12.11.2.
Ail-Diff.
Aileron differential
 12.6.
Controls
Mix
Mixer: Controls Mix
 16.1.3.
ELEVATR+
Elevator
trv' = Control surface deflection
for down-elevator
trv# = Control surface deflec-
tion for up-elevator
Spoiler
Elevator trim correction for Spoiler
(airbrakes):
pt1 = Elevator compensation for
half-deployed spoilers
pt2 = Elevator compensation for
fully deployed spoilers
Flap
Elevator trim correction for Flap
(Flaperon):
trv' = Elevator compensation for
(e.g.) thermal setting
trv# = Elevator compensation for
(e.g.) speed setting
Thr -Tr
Elevator trim correction for throttle
(motor):
dead = Dead-zone / from which
point does elevator cor-
rection take effect?
trv = Elevator compensation for
full-throttle
V-TAIL+
*
Elevator
trv' = Control surface deflection
for down-elevator
trv# = Control surface deflection
for up-elevator
Rudder
trv' = Control surface deflection
for rudder in one direction
(e.g. up)
trv# = Control surface deflection
for rudder in the other di-
rection (e.g. down)
Spoiler
Elevator trim correction for Spoiler
(airbrakes):
pt1 = Elevator compensation for
half-deployed spoilers
pt2 = Elevator compensation for
fully deployed spoilers
Flap
Elevator trim correction for Flap:
trv' = Elevator compensation for
(e.g.) Thermal setting
trv# = Elevator compensation for
(e.g.) Speed setting
Thr -Tr
Elevator trim correction for throttle
(motor):
dead = Dead-zone / from which
point does elevator cor-
rection take effect?
trv = Elevator compensation for
full-throttle
* only appears if V-TAIL+ is active
