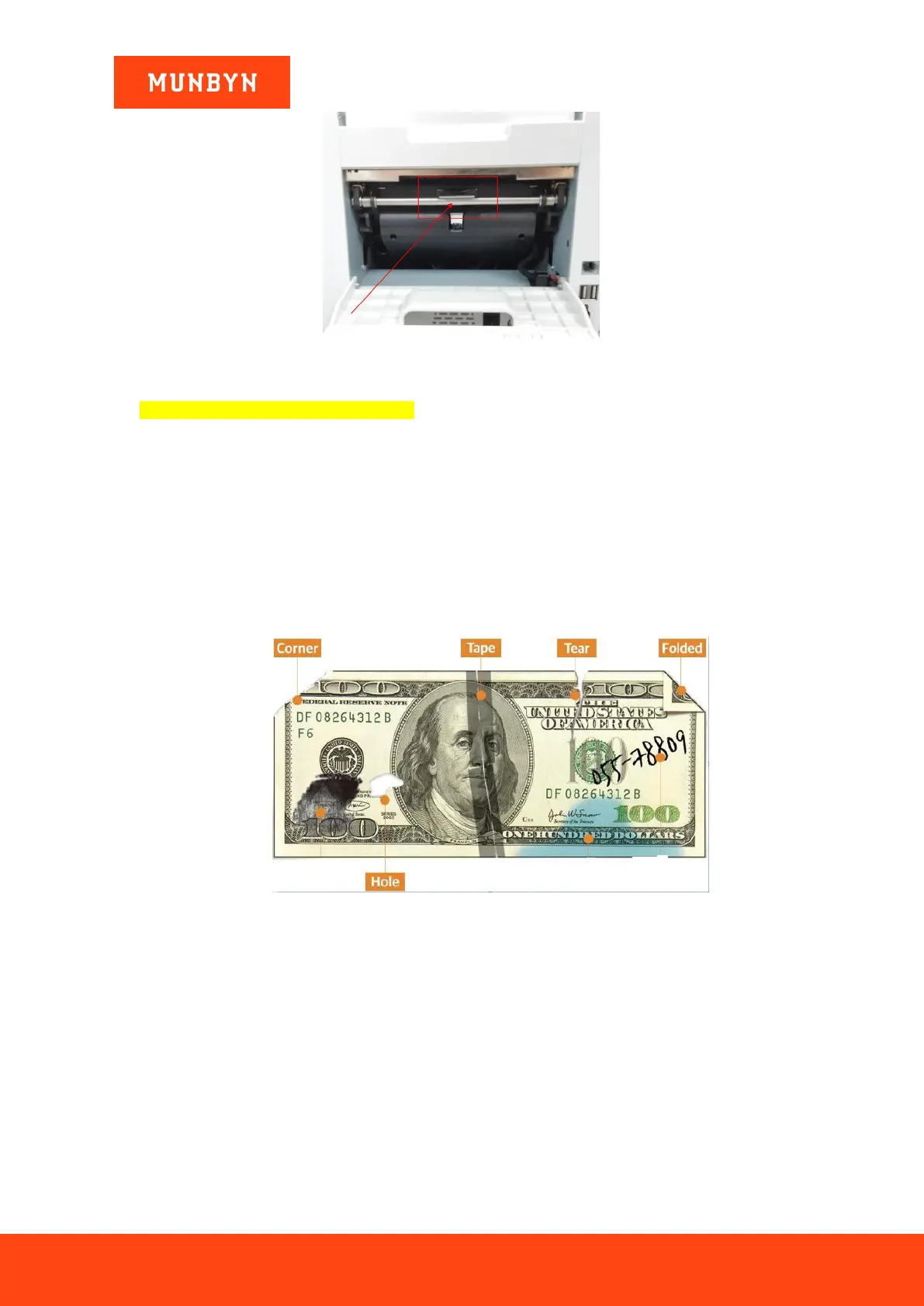

Figure 2- 27 Handle of Internal Back Cover
3) Click the link below to view the tutorial video.
Tutorial video: munbyn.biz/IMC01jamming
4) If the problem is still not resolved, please contact us.
2.14. What should I do if Image/IR/UV/MT/MG Error is frequently
displayed on the screen?
2.14.1.Check bills
There are several conditions to make the Image/IR/UV/MT/MG Error happened.
1) The bill size is out of the range according to IMC01 specification.
2) The banknote is damaged with different ways such as lack of corner, tape, hole, tear and folded. As shown
in Figure 2-28, it is not recommended to count this kind of bills.
Figure 2- 28 Bill Damaged Ways
3) The banknote entrance is so small that the banknote cannot pass through it smoothly. In this case, you need
to fine tune the screw by rotating it clockwise according to the following section.
4) Other abnormal operation or there is unknown thing inside the IMC01.If something inside the IMC01, you
need to open the back cover to check, and clean the internal sensors.
2.14.2.Perform CIS calibration
After cleaning the IMC01, refer to Section 2.7 for CIS calibration.
2.14.3.Adjust the detection level
If there is still an error after CIS calibration, it means that the sensitivity of IMC01 is too high. We can adjust
the detection level according to the following steps to increase the acceptance of IMC01 to some old banknotes.
To Next Page
