Murphy HelmView HV1000 - Engine Diagnostics Function

Section 78 00-02-0604
08-08-07 - 18 -

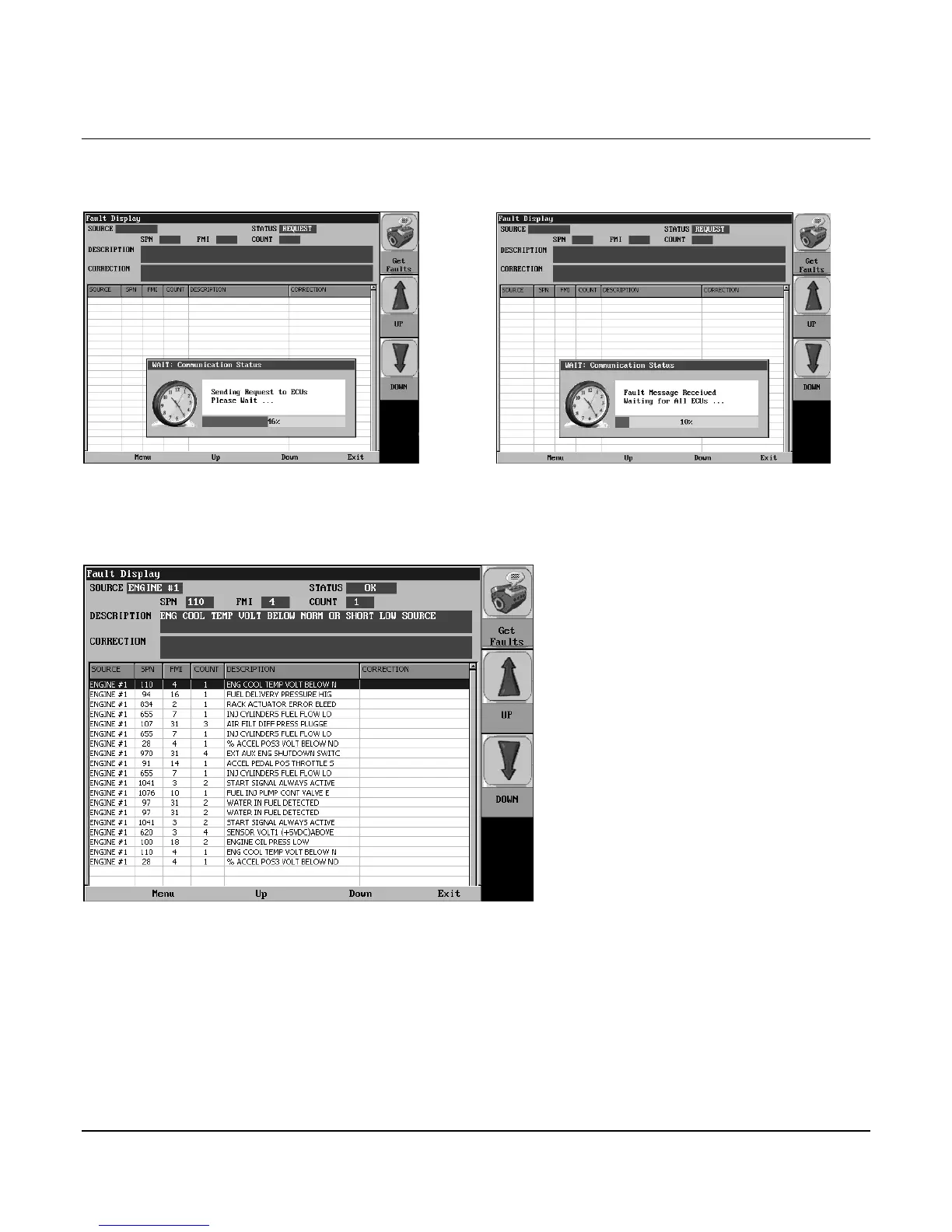

Engine Diagnostics
When choosing this selection, the display will query the engine(s) ECU and provide feedback
on any diagnostic codes that have been activated and stored in the ECU for service needs.
The Engine Diagnostics option displays faults based on engine or auxiliary source. A
description of the fault as well as the suggested action for correction is provided for each fault
occurrence.
