Section 78 00-02-0604
08-08-07 - 2 -

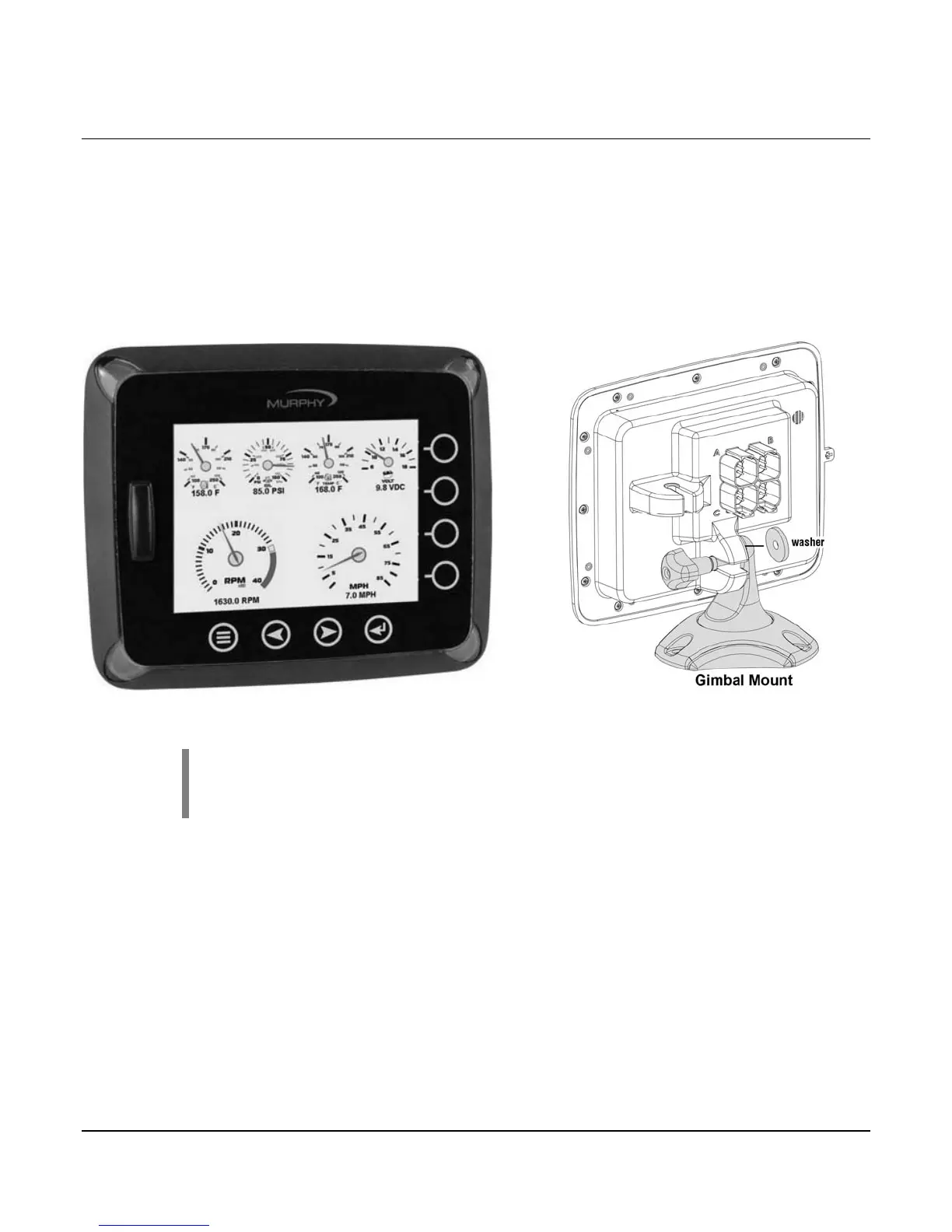

Mounting Options
Two mounting options are provided for the HV1000 display. The in-dash mounting option will
require a hole to be cut for insertion of the display. A template is provided with the depth and
dimensions of the display for easy installation. The gimbal-mount method enables the display
to be installed on top of the dash. The gimbal design allows rotating and tilting the unit for the
best display position for the operator’s viewing.
For complete installation and wiring instructions, refer to the “HelmView Installation Manual”
included with your HV1000 display.
NOTE: Do not leave plastic installation template installed with the display.
This will create a condition where the protective cover will engage too
tightly.
