Section 78 00-02-0604
08-08-07 - 1 -
Product Information
The HelmView™ Model HV1000 display is designed for instrumentation and control on
electronically controlled engines communicating using SAE J1939 and NMEA 2000. The
HV1000 display is a multifunction tool that enables equipment operators to view many different
engine or transmission parameters and service codes, and can support up to four engines
simultaneously.

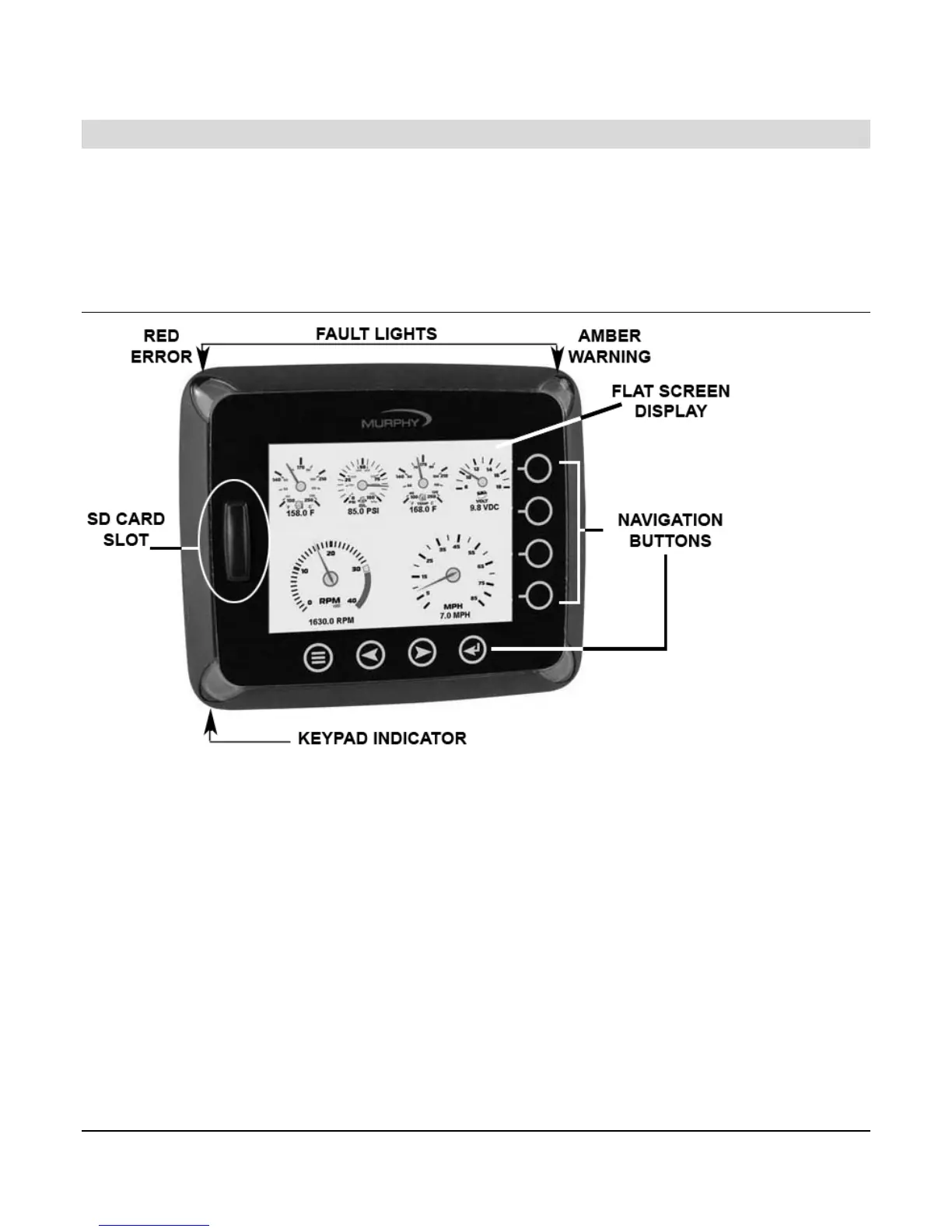

Display Features
Fault Lights
These indicators, located in the top two corners of the unit, will light up when a fault occurs.
The unit will display an amber light for a warning or a red light for a shutdown condition. A
corresponding pop-up message describing the fault may also be displayed on the screen.
Keypad Indicator Light
Located on the bottom left of the unit, the keypad indicator lights up each time one of the touch
capacitive buttons is pressed.
SD Card Slot
This slot is used for reprogramming the unit. If using the GPS Maps package, it is also used
for the Navionics map cards to retrieve the maps. It is sealed from the rest of the unit. It
should remain covered to keep out water, dust, and other contaminants.
