Depending on the module variant, two additional bytes are available to parameterize the
channel diagnostic data. The figure below shows parameterization of the IMPACT67-P DO16
55348 module. All diagnostics are always signaled as default. The short-circuit message can be
switched on (bit to "0") or off for each channel. Channel assignment in the diagnostic bytes is
described in section 4.2.

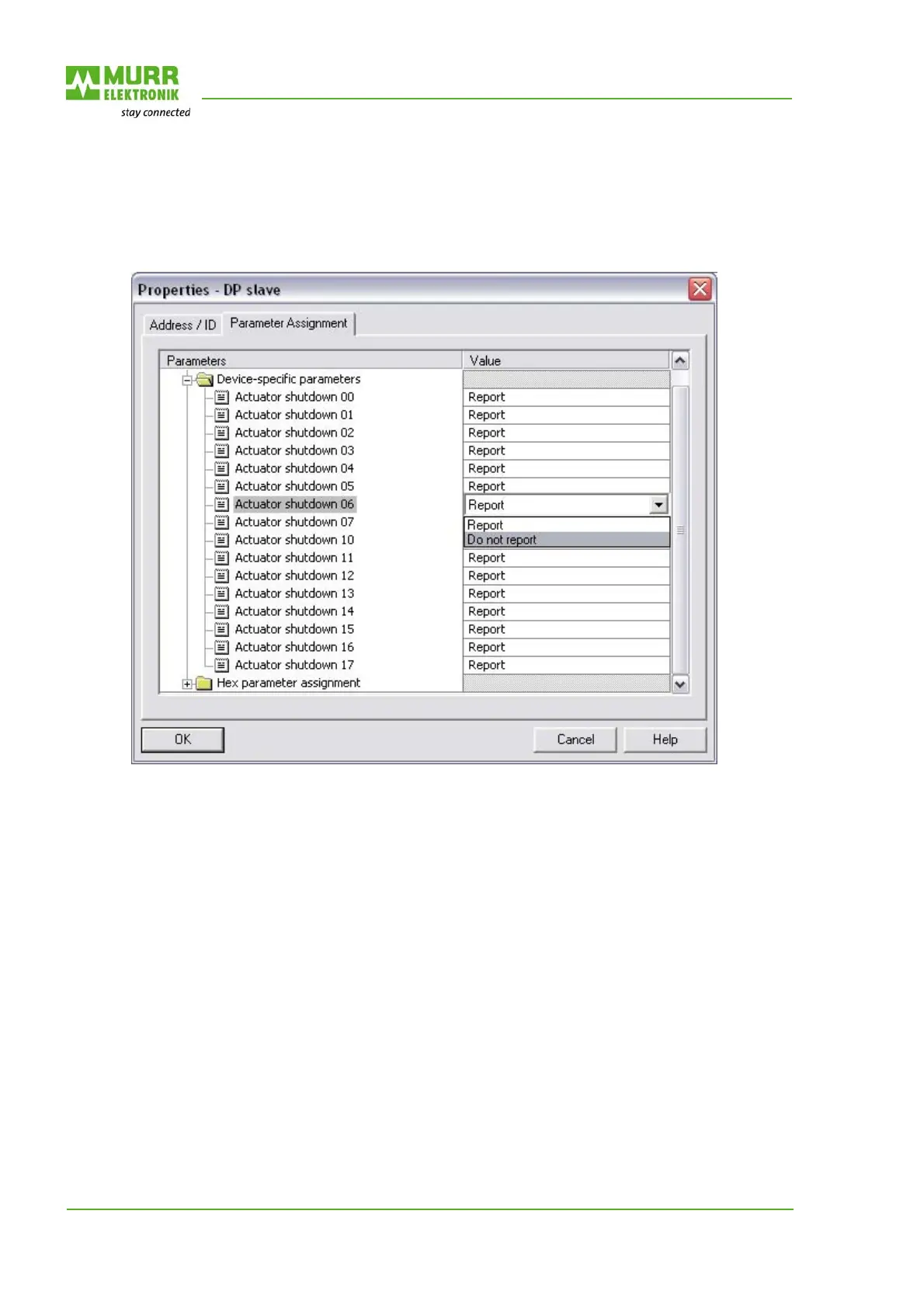

Fig. 13: Parameterization of actuator switchoff message
