Murr Elektronik IMPACT67-P User Manual

V 1.6 21
Example: Configuration of an IMPACT67-P with the S7 Hardware Manager
 The IMPACT67-P is under "Other Field Devices" and "I/O" in the Simatic Manager hardware
catalog.

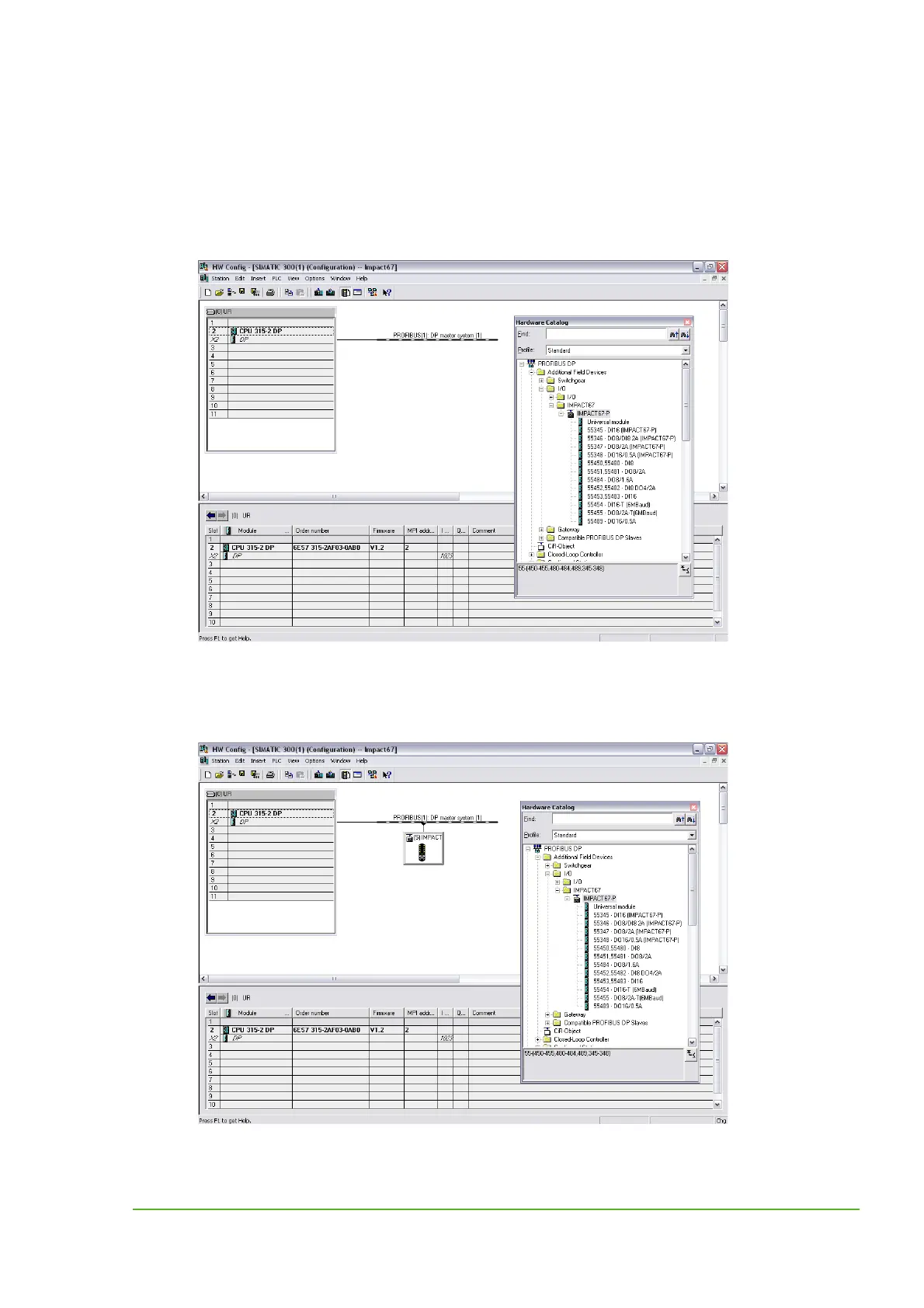

Fig. 14: 1st step: Configuration of an IMPACT67-P with the S7 Hardware Manager
 Select the "IMPACT67-P" and drag the entry while holding down the left mouse button, or
double-click on the Profibus string.
Fig. 15: 2nd step: Configuration of an IMPACT67-P with the S7 Hardware Manager
