Holding of signal waveform
When collection of data is continuing, the waveform of signals will be constantly refreshed. When the data
collection is stopped, the display content will be held. The main purpose of holding waveform is to hold the current
data or waveform, so as to make close observation easier. There are two methods for holding waveform data: Press
"S" button or use single trigger scanning mode.

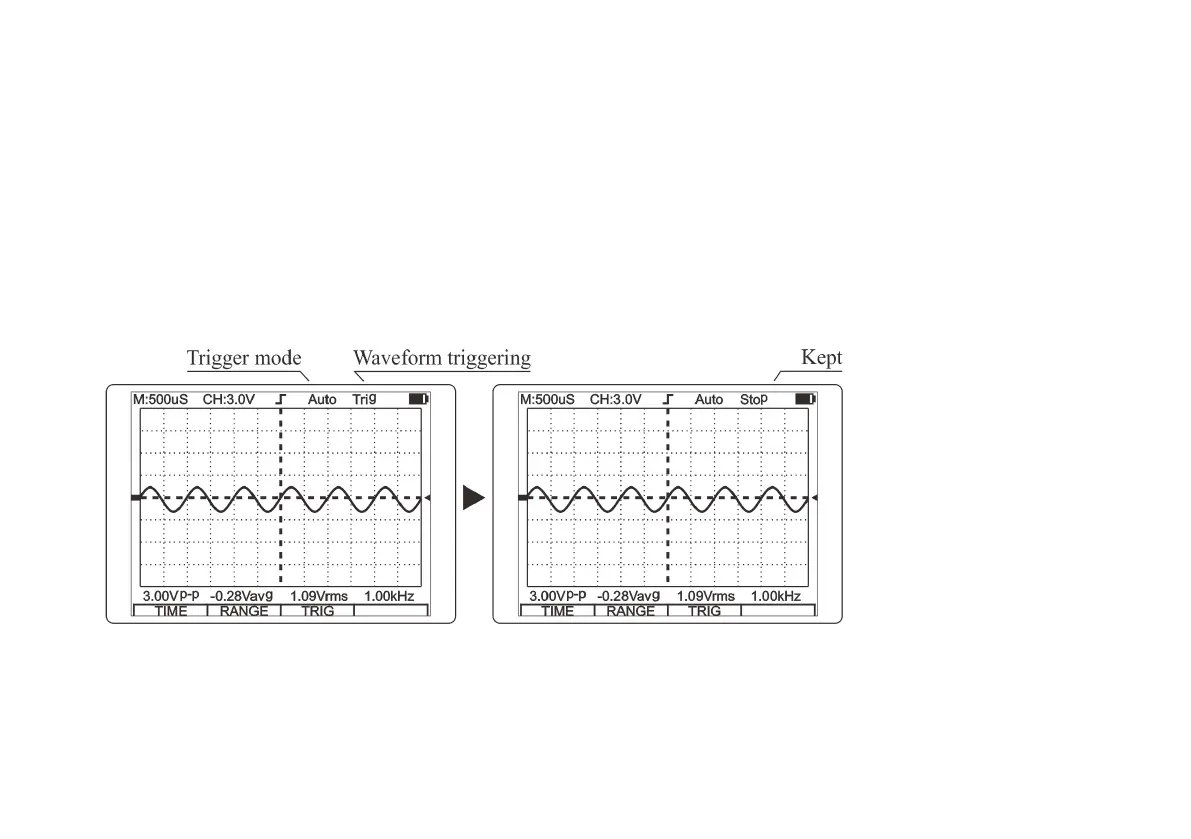

Press "S" button to start or stop the collection of waveform data. The last waveform on the screen can be
maintained immediately after pressing the "S" key.Once the collection of waveform data by the oscilloscope is
ceased, the display is held.
Storage and reading of waveform of signals
The OSC database of the instrument is provided with a memory space for 10 OSC waveform data. The
operation method of the storage is as follows:
