2 Overview of the lift

2�1 General description

This oor plate two posts lift is composed of posts, carriages, lifting arms, cylinders and motor unit, etc.

It is driven by an electro-hydraulic system. The gear pump delivers hydraulic oil to oil cylinders and pushes upwards its piston.

The piston drives the chain to raise the carriage and the lifting arms. During lifting process, the safety latch will automatically

and rmly bite with the safety teeth block in the posts. Therefore, no slipping will happen in case the hydraulic system beaks

down.

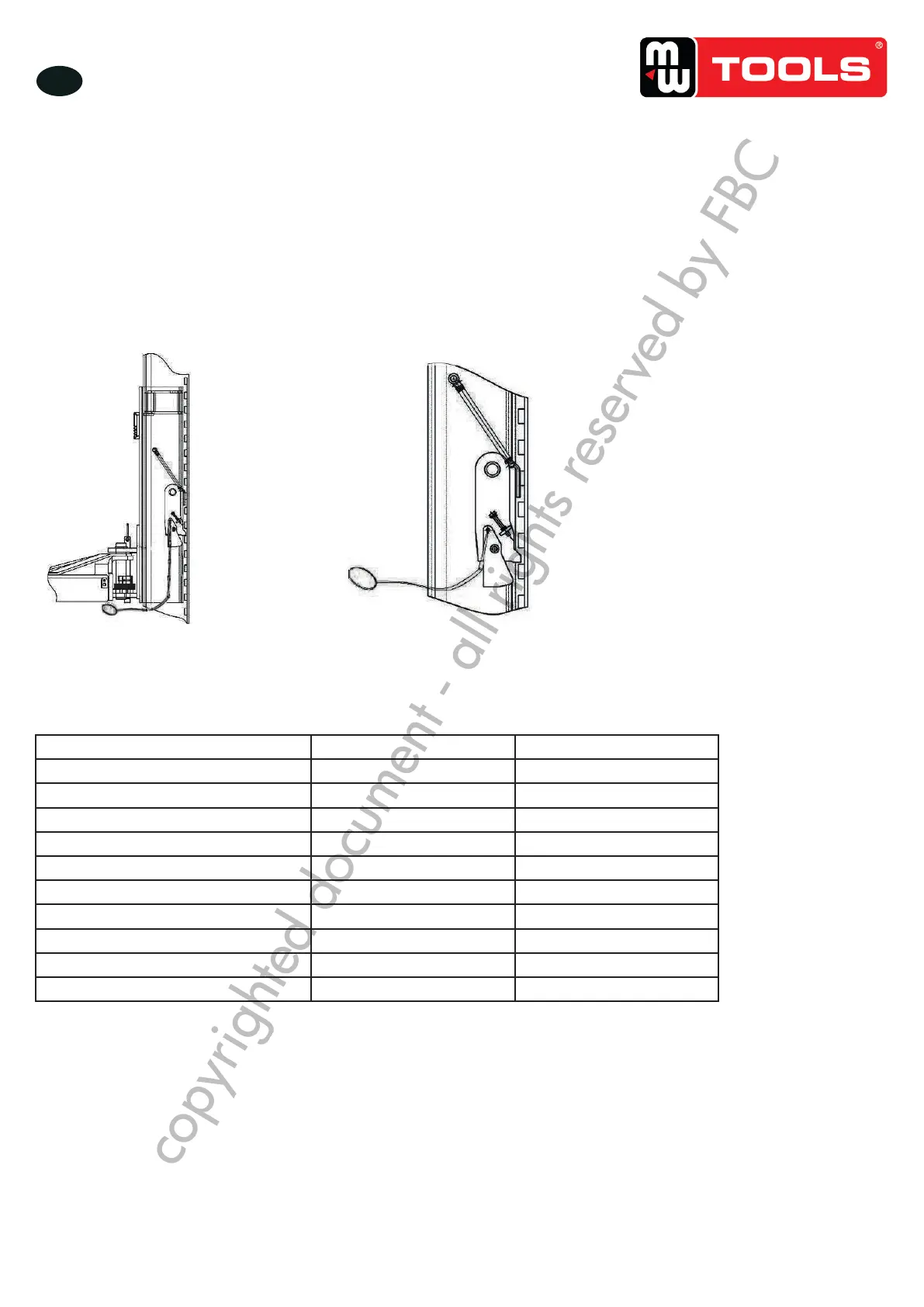

Fig� 1 Safety structure

2�2 Technical data

Model HB240 HB240M

Lifting capacity 4 ton 4 ton

Power 2.2 kW 2.2 kW

Voltage 3 x 400 V 230 V

Maximum height 1930 mm 1930 mm

Minimum height 110 mm 110 mm

Maximum car width 2576 mm 2576 mm

Lifting duration 55 s 55 s

Drop down duration 26 s 26 s

Weight 630 kg 630 kg

Dimensions (width x depth x height) 3426 x 700 x 2824 mm 3426 x 700 x 2824 mm

USER’S GUIDE V1.0 201511

- 5 -

OVERVIEW OF THE LIFT

2.1 General descriptions

This floor plate two posts lift is composed of posts, carriages, lifting arms, cylinders and motor unit, etc.

It is driven by an electro-hydraulic system. The gear pump delivers hydraulic oil to oil cylinders and pushes upwards its piston. The

piston drives the chain to raise the carriage and the lifting arms. During lifting process,

the safety latch will automatically and firmly bite with the safety teeth block in the posts. Therefore, no slipping will happen in

case the hydraulic system beaks down.

Safety structure

2.2 Technical data

Model Lifting capacity Full rise time Full rise Height Width Inside columns

Two post lift 4000kg 50s 1930mm 2824mm 3365mm 2780mm

2.3 Construction of the lift
