8 Hydraulisch systeem

8 Système hydraulique

8 Hydraulic system

USER’S GUIDE V1.2 201503

- 17 -

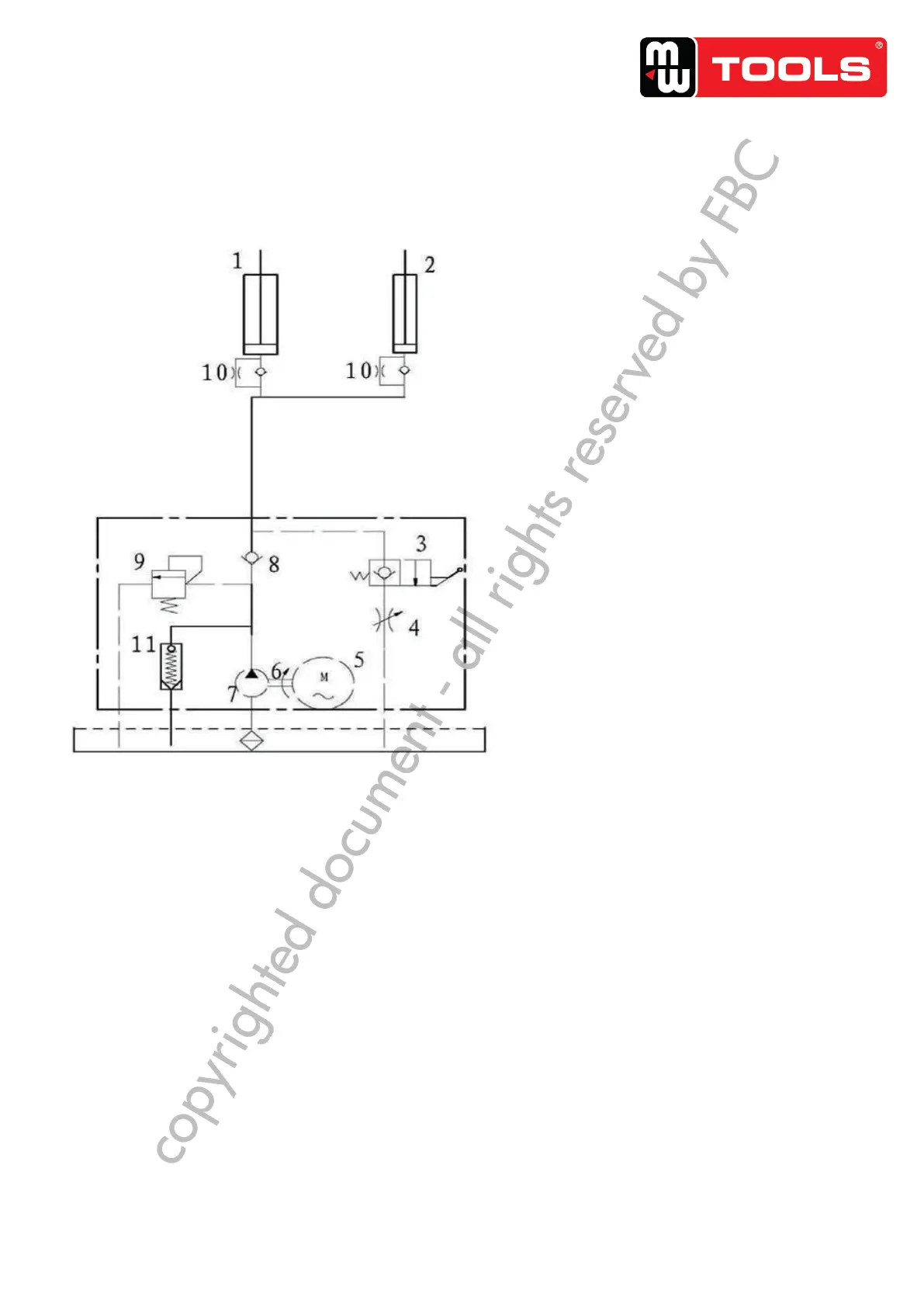

Annex 3, Hydraulic wo rking system

Annex4, Wiring diagram

1. Drive oil cylinder

2. Assistant oil cylinder

3. Manual unloading valve

4. Throttle valve

5. Motor

6. Coupling

7. Gear pump

8. Single –way valve

9. Over-flow valve

10. Anti-surge valve

11. Cushi on va lve
