mycom 1612LSC series User Manual

2202L5JE-DA-C5-N_2015.05.
7 Related Documents
Compound 2-stage Screw Compressor 7.5 Disassembly Tools
1612LSC Speed Increaser Type
7-12
7.5 Disassembly Tools

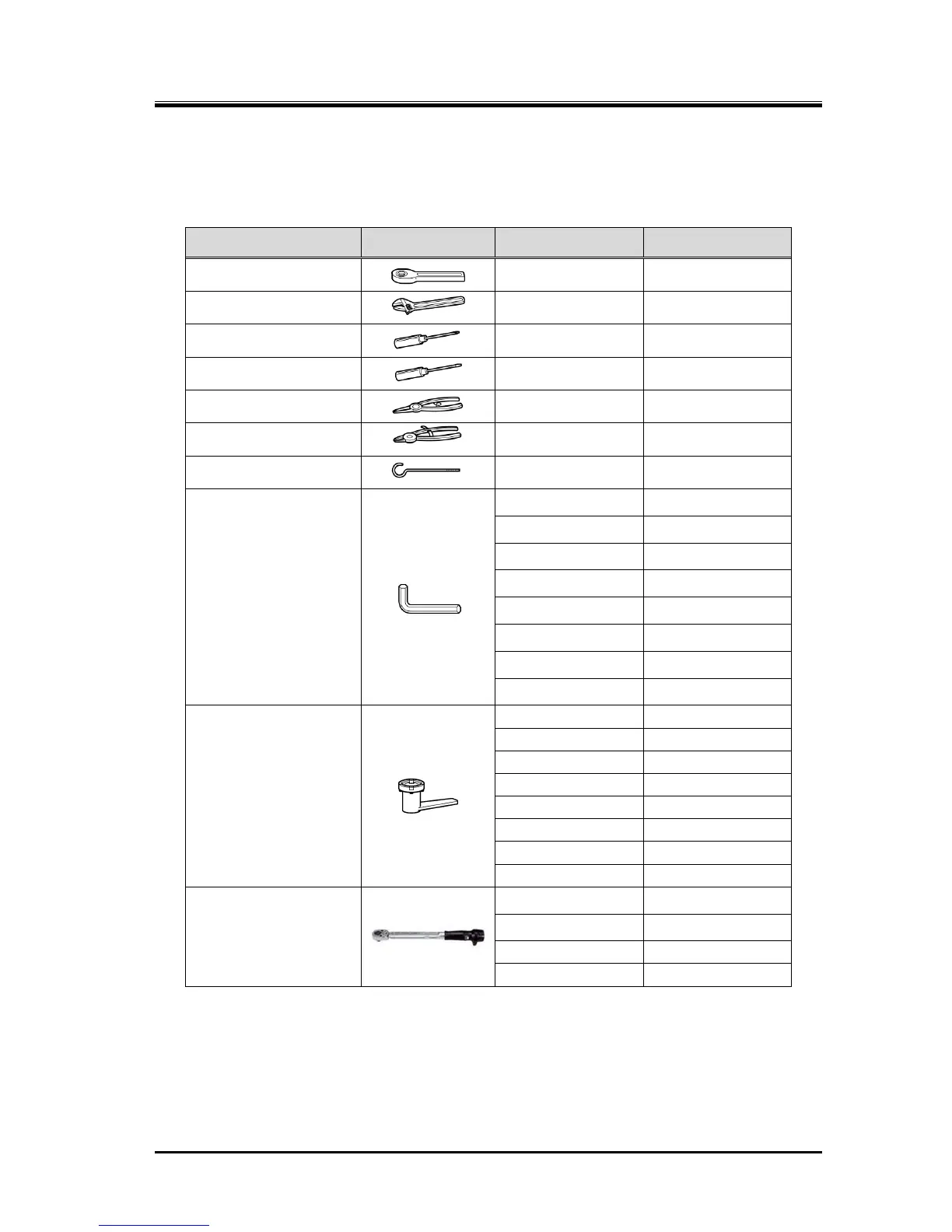

Table 7-6 List of Tools for Standard Disassembly
Tool name size, etc.; Code No.
Ratchet wrench 1/4” SG261-08
Adjustable wrench 250 mm SG231-250
Screwdriver Phillips SG112-075
Screwdriver Flat blade SG111-075
Snap ring pliers external for shaft ST-2N SG311-02N
Snap ring pliers internal for groove RT-4 SG312-04
Eye bolt M8 two-peace-set UHT0016
Allen wrench key
Across flats
2 mm
SG241-02
3 mm
SG241-03
4 mm
SG241-04
5 mm
SG241-05
6 mm
SG241-06
8 mm
SG241-08
10 mm
SG241-10
12 mm
SG241-12
Lock nut wrench
AN-05 SAS111-05
AN-06
SAS111-06
AN-8
SAS111-08
AN-9
SAS111-09
AN-12
SAS111-12
AN-13
SAS111-13
AN-14
SAS111-14
AN-17
SAS111-17
Torque wrench
for assembly
5-25 N･m
-
20-100 N･m
SG132-0900
40-280 N･m SG132-2800
500-1500 N･m -
