Chapter 7 Related Documents
Compound 2-stage Screw Compressor 2016**C 7.1 Development Views, Assembly Sectional Views, and Parts Configuration Tables
7-4

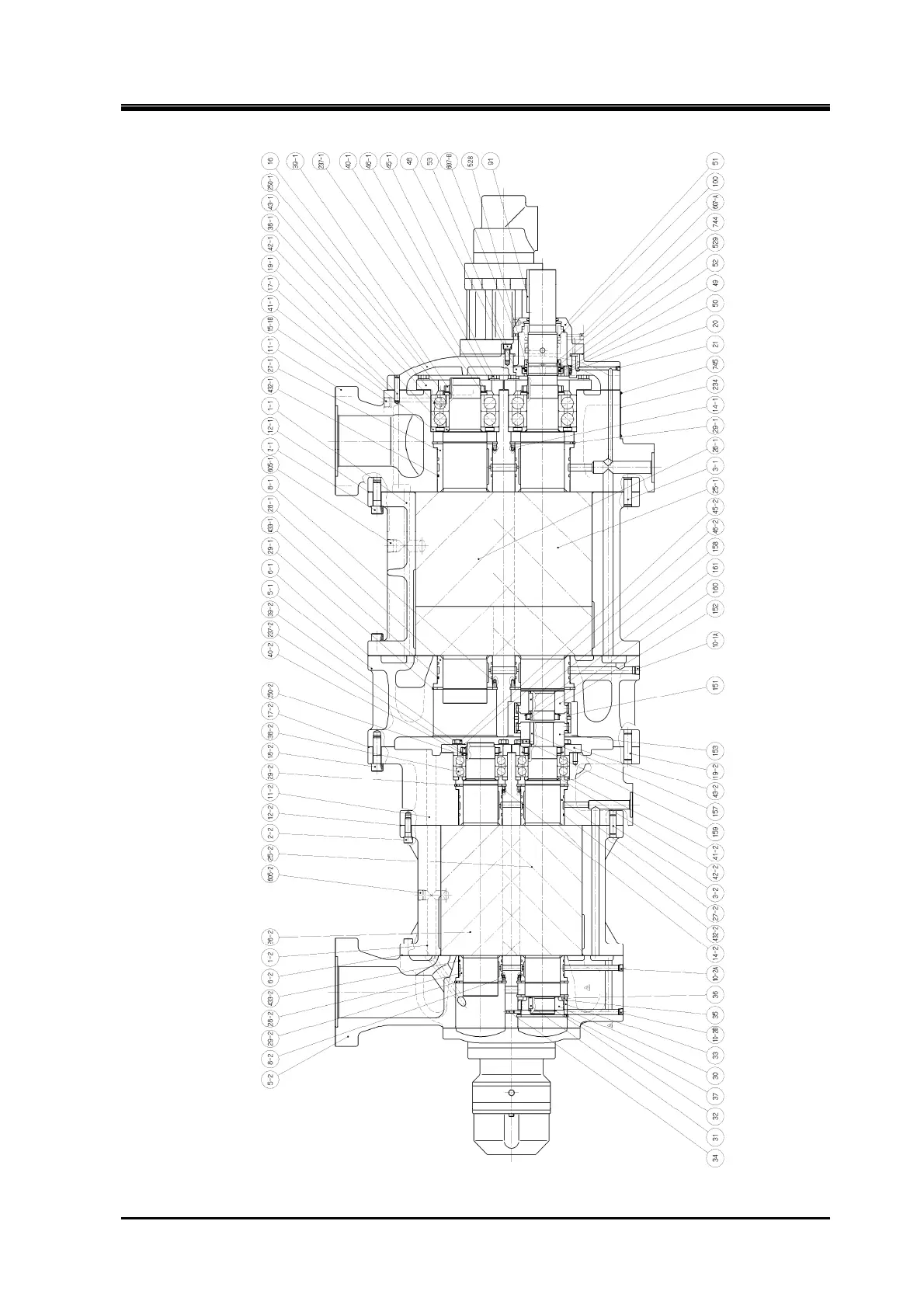

Figure 7-4 2016LLC Assembly Sectional View (Horizontal)
