Chapter 7 Related Documents
Compound 2-stage Screw Compressor 4032**C Tools for Disassembly
7-16
7.5 Tools for Disassembly

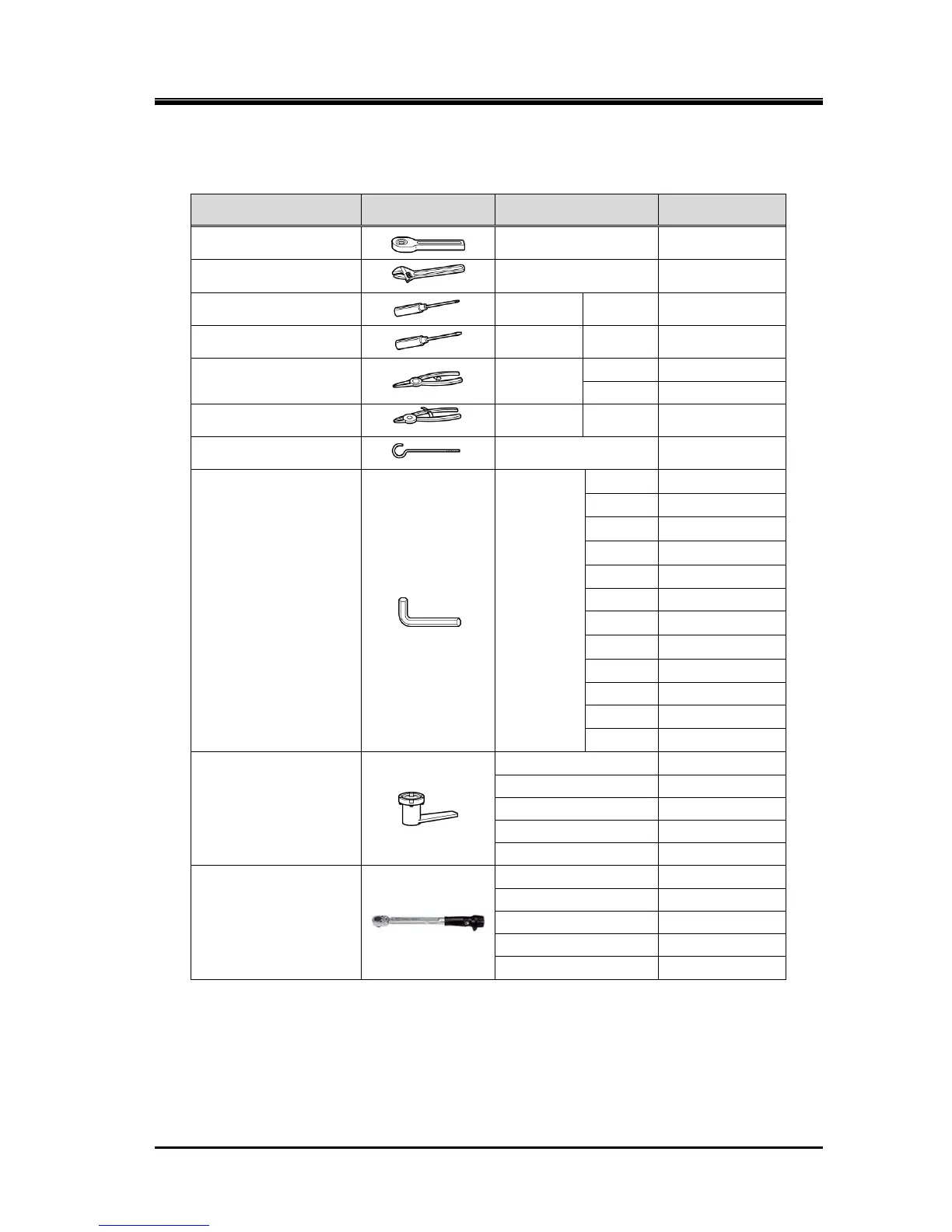

Table 7-5 List of Tools for Disassembly (example)
Tool name
Illustration
size, etc.;
Parts Center
Code No.
Ratchet wrench
1/4”
SG261-08
Adjustable wrench
250 mm
SG231-250
Screwdriver
Phillips
75 mm
SG112-075
Screwdriver
Flat blade
75 mm
SG111-075
Snap ring pliers
External
ST-1
SG311-01
ST-3
SG311-03
Snap ring pliers
Internal
RT-4
SG312-04
Eye bolt
M8×200
two-peace-set
UHT0016
Allen wrench key
Across
flats
1.5 mm
-
2 mm
SG241-02
4 mm
SG241-04
5 mm
SG241-05
6 mm
SG241-06
8 mm
SG241-08
10 mm
SG241-10
12 mm
SG241-12
14 mm
SG241-14
17 mm
SG241-17
19 mm
SG241-19
22 mm
SG241-22
Lock nut wrench
AN-10
SAS111-10
AN-12
SAS111-12
AN-20 Note 2
SAS113-20
AN-21
SAS111-21
AN-28
SAS111-28
Torque wrench
for assembly
5-25 N･m
-
20-100 N･m
SG132-0900
60-420 N･m
SG132-4200
200- 800 N･m
400-2000 N･m
Note 1: For disassembly and assembly work of a mechanical seal is required the special jigs.
Note 2: In case of M rotor axis end is taper shaped, this wrench is required.
