Chapter 2 Compressor Specifications and Structure
Compound 2-stage Screw Compressor 4032**C 2.5 Mechanisms
2-11
(A) Properly adapted Vi to load condition
(B) Improperly adapted Vi to load condition

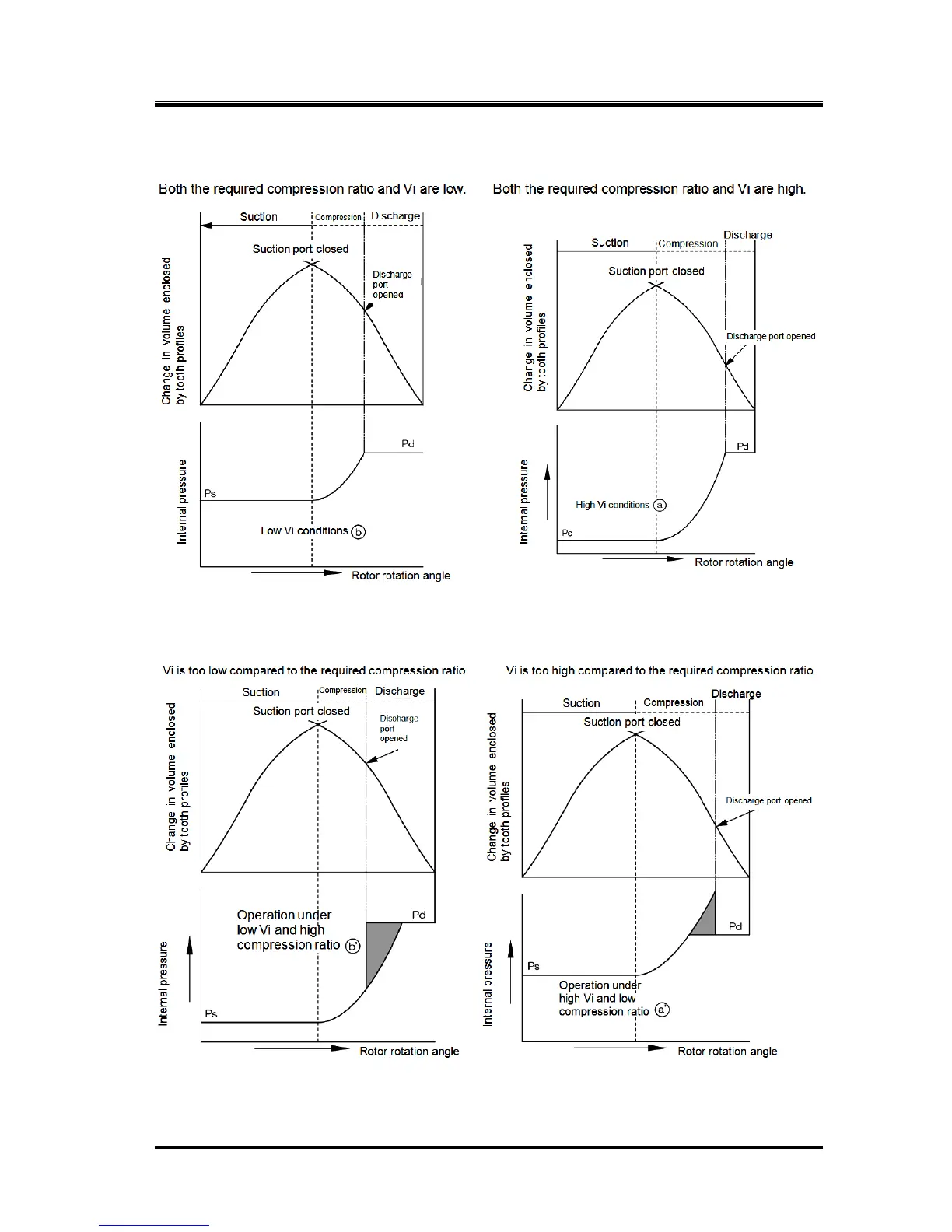

Figure 2-8 Relationship between Volume ratio (Vi) and Operation Conditions
Internal pressure
Change in volume enclosed by tooth profiles
