Chapter 2 Compressor Specifications and Structure
Compound 2-stage Screw Compressor 4032**C 2.6 Gas and Oil Flow
2-14
 Oil Supply Route
As shown in Figure 2-12, oil supply route for the low-stage is split into six flows including the flow
to the shaft seal block lubrication. After completing each role, the oil flows to the high-stage via the
low-stage rotor messing part.
Oil supply system in the high-stage is split into three flows. Eventually, the oil mixed with
compressed gas and the oil from the low-stage are discharged from the compressor via the
high-stage rotor messing part.
In standard configuration, oil injection is not performed at the high-stage.

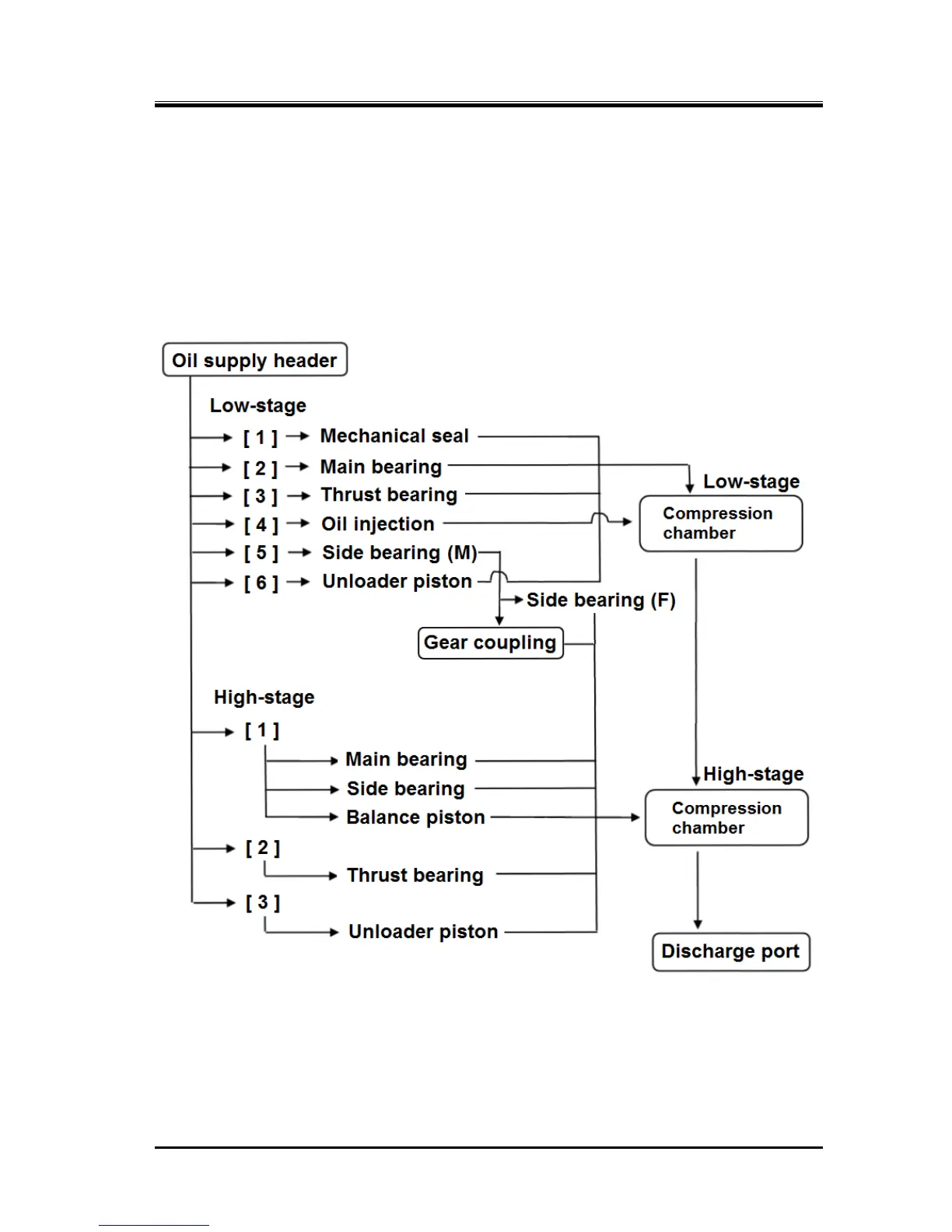

Figure 2-12 4032**C Oil Supply Route
