2201Q4JE-MY-C9-N_2018.01.
Chapter 3 Installation
Compound 2-stage Screw Compressor 4032**C 3.2 Installation Works
3-3

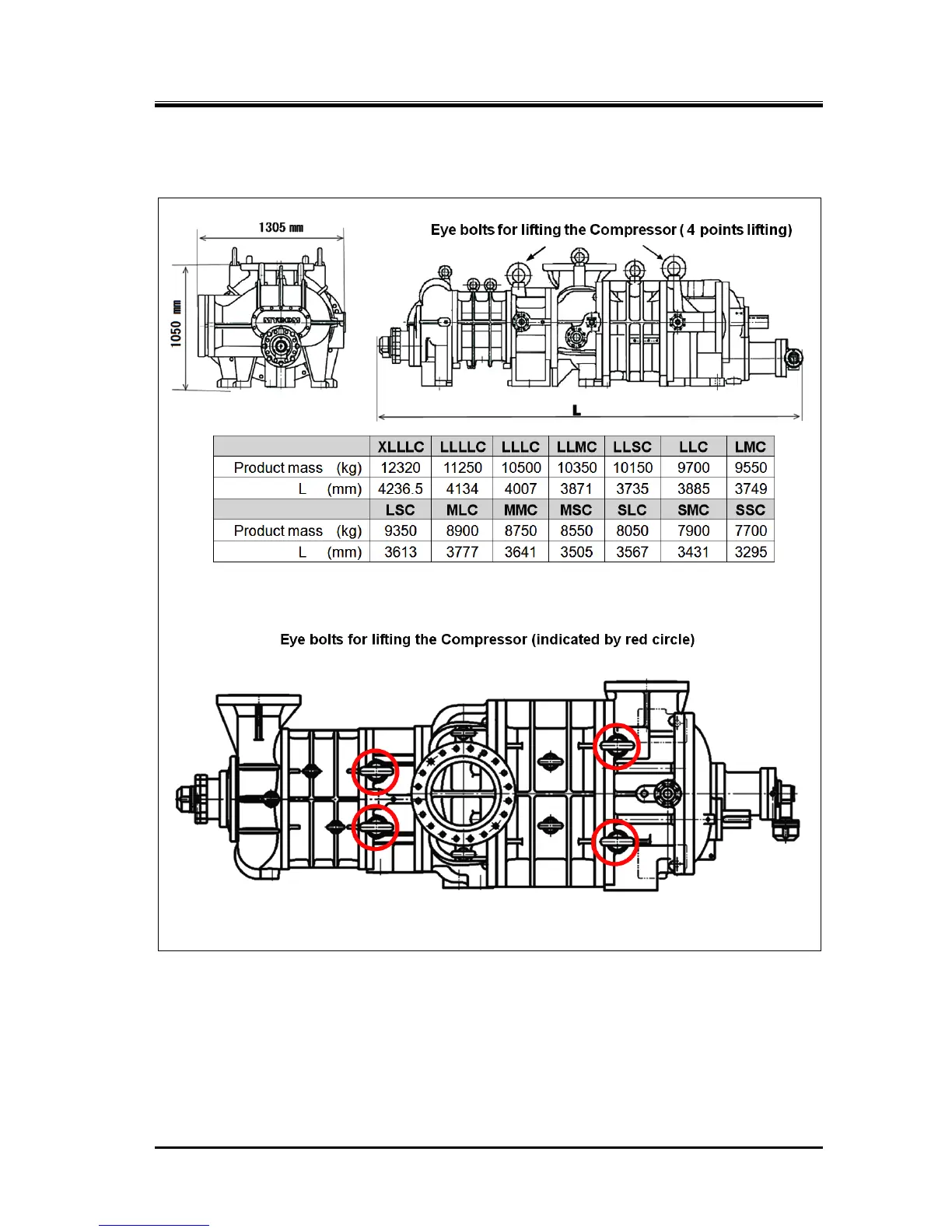

Outer Dimensions, Mass and Lifting Position
Figure 3-1 Outer Dimensions, Mass and Lifting Position of Compressor
