TECHNICAL MANUAL - hyperion X5
EN
CALIBRATION
39

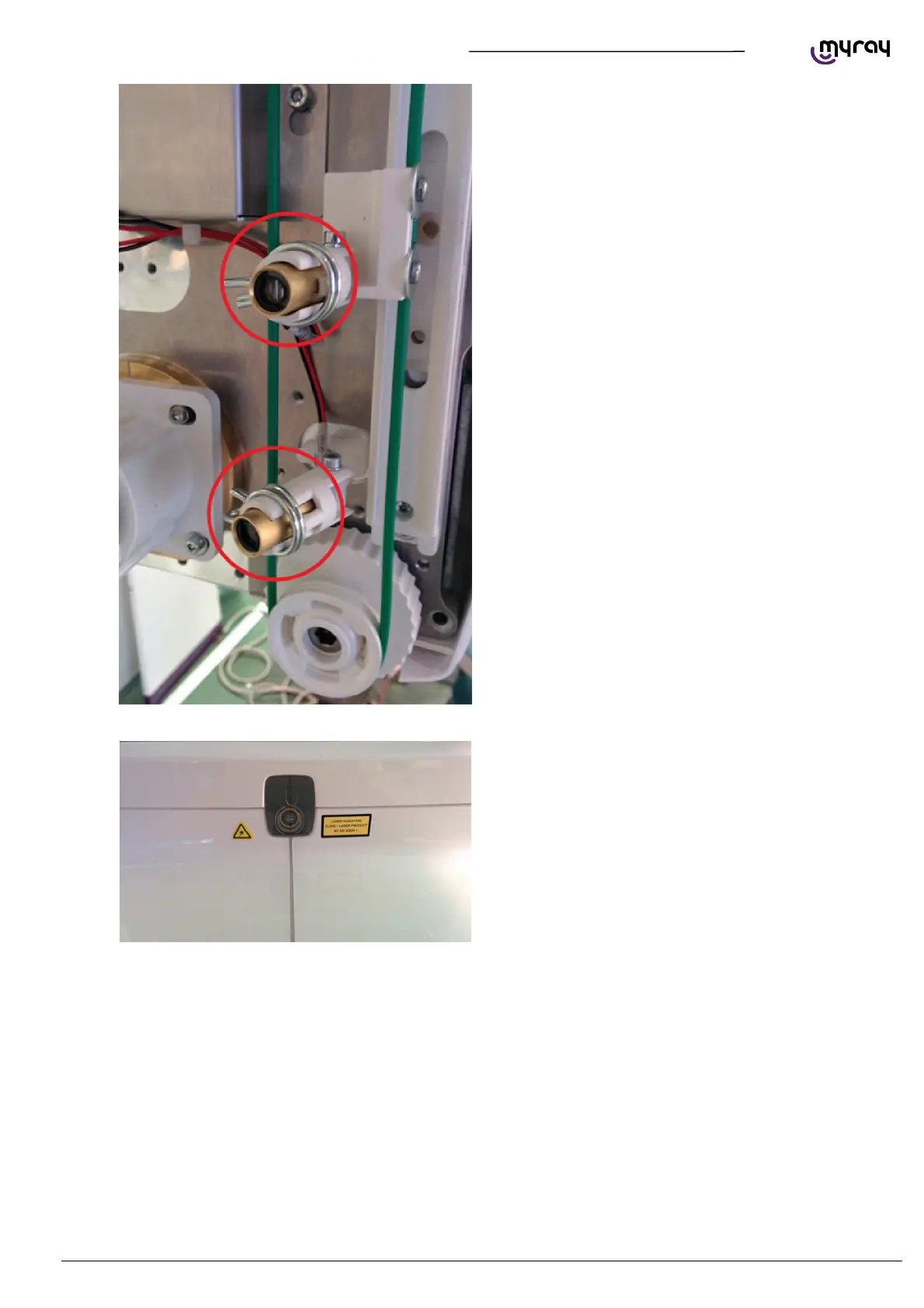

If one or more of the laser beams is not aligned,
use pliers to loosen the spring around the
projector support and align the beam manually.
The frankfurt plane and canine lasers are under
the generator cover.
The sagittal laser is below the mirror.
Press “Exit ” at the end of the procedure.
