EV-020 Rev. 11 – 2014
18
Warning
ALWAYS DISCONNECT THE BATTERY PRIOR TO INSTALLATION.
• The chain counter must be positioned so that the display will be easy to read. It should not be
exposed to direct sunlight.

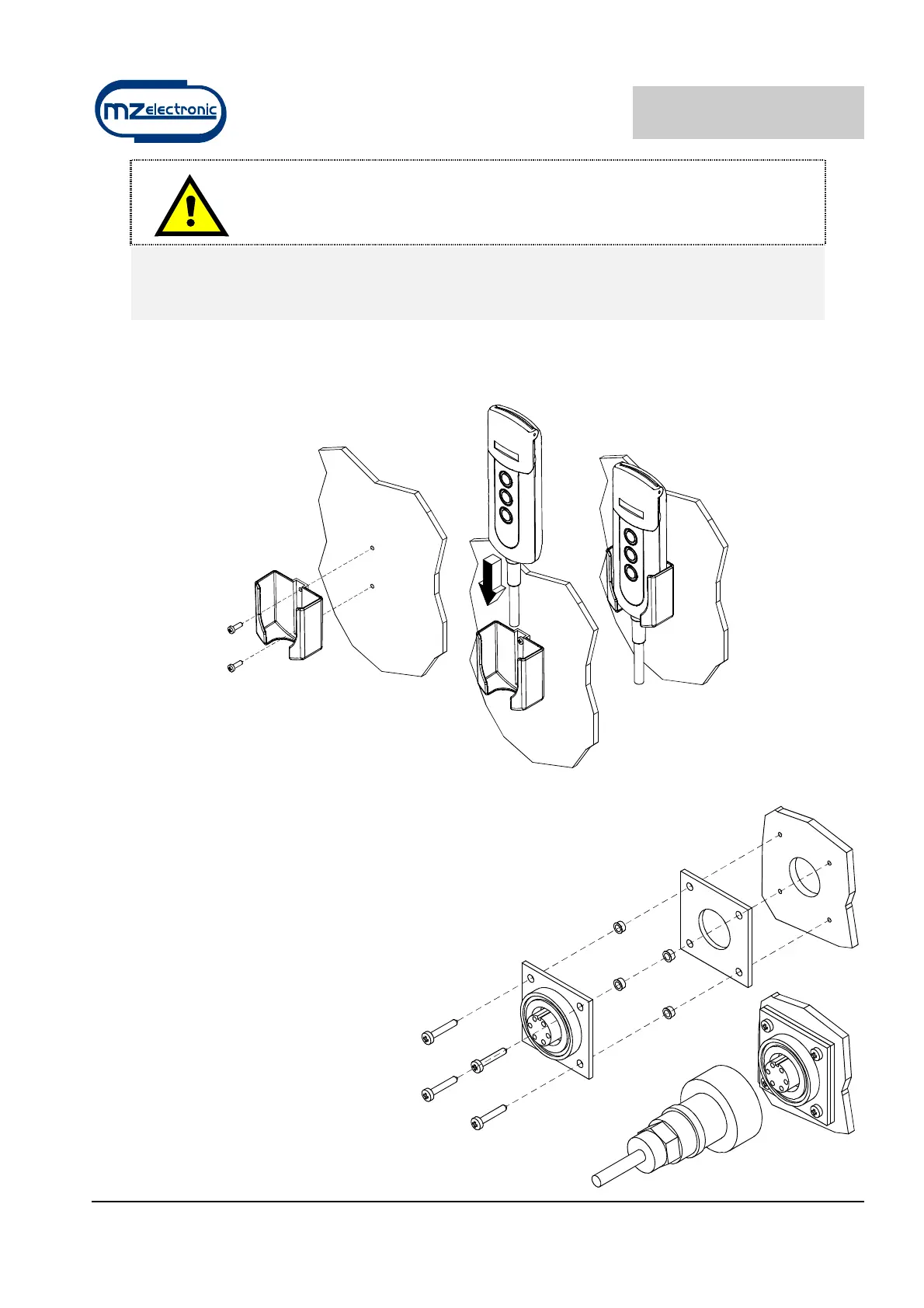

• Secure the instrument in place with the bracket provided, tightening the two screws using a
cross screwdriver.
• Drill on the dashboard one hole of 20.5 mm (~13/16”) and 4 holes of 2.2 mm (~3/32”) to fasten
the connector tap.
• Put the gasket between the rear part
of tap and the dashboard.
• The rear part must be protected from
contact with water or moisture.
• For instructions on making electrical
connections, see the attached
diagram. The wires must have a
minimum cross section size of 1.5
mm².
• Install a 3 A (ampere) fast safety
fuse on the + wire of the battery. Do
not use the voltage generated by the
engine battery set to provide power.
• The instrument complies with EMC
standards (EN55022) and must be
positioned at a distance of:
− 30 cm (~1 Ft) from the compass;
− 50 cm (~1.5 Ft) from radio
