N4L PPA55 Series User Manual

PPA55xx Quick User Guide
Page 53

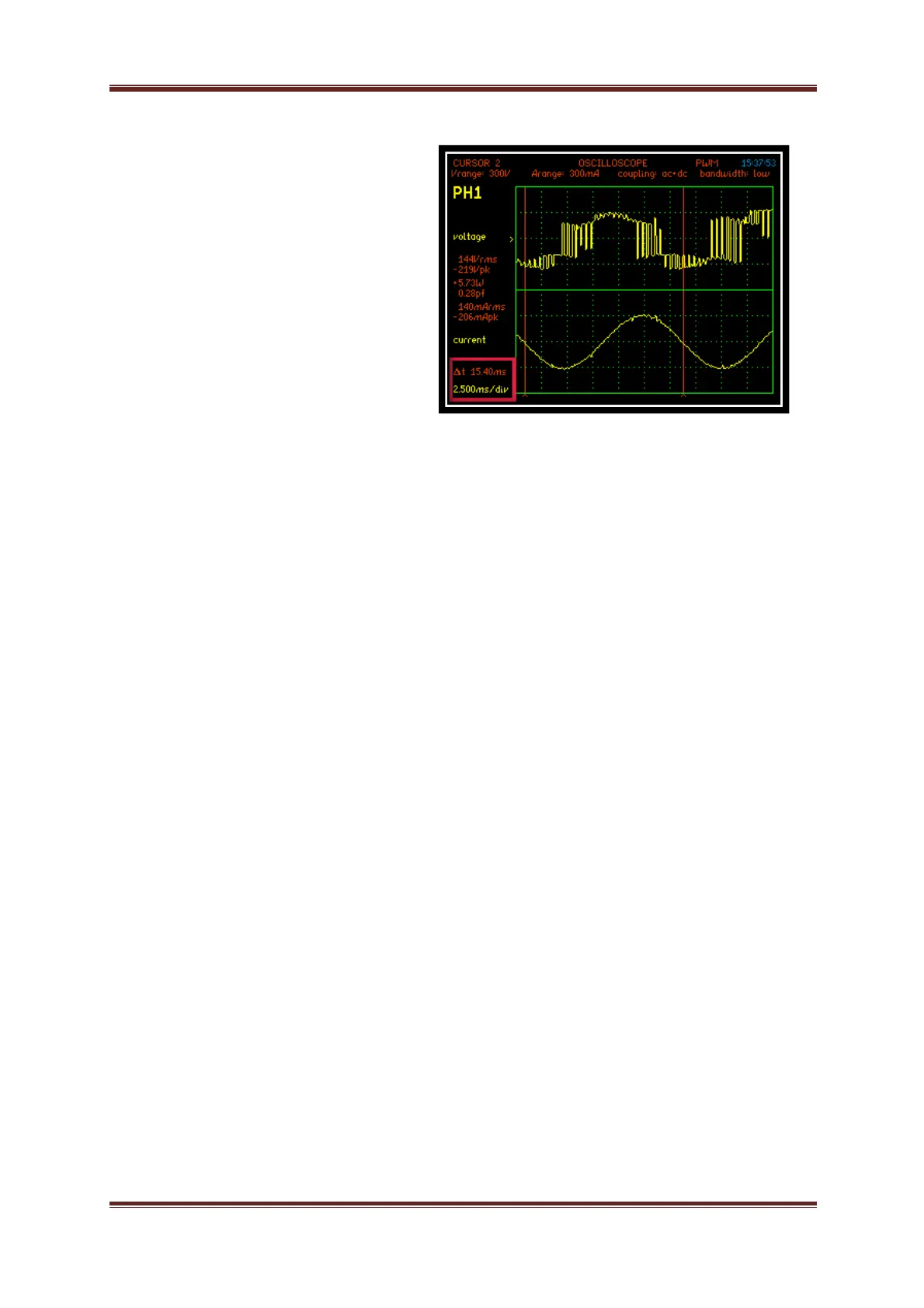

By viewing the waveforms in the
Oscilloscope mode we can see the
switching frequency of the Voltage
and a smoother sine wave Current
waveform
The Current waveform shows the
time for 1 cycle approximately
15.40ms
Therefore 1s ÷ (15.40x

) =
64.9Hz Fundamental Frequency
Frequency reference:
Select from the drop down menu which waveform the fundamental frequency is
to be synchronised with Voltage or Current
Low Frequency:
Set this parameter to ON, switching on will open up the minimum frequency
parameter
Minimum Frequency:
Manually input a value to allow the results window to extend automatically if the
fundamental frequency time period is longer than the time period of the data
window. This is recommended
