PPA55xx Quick User Guide
Page 91
Note:

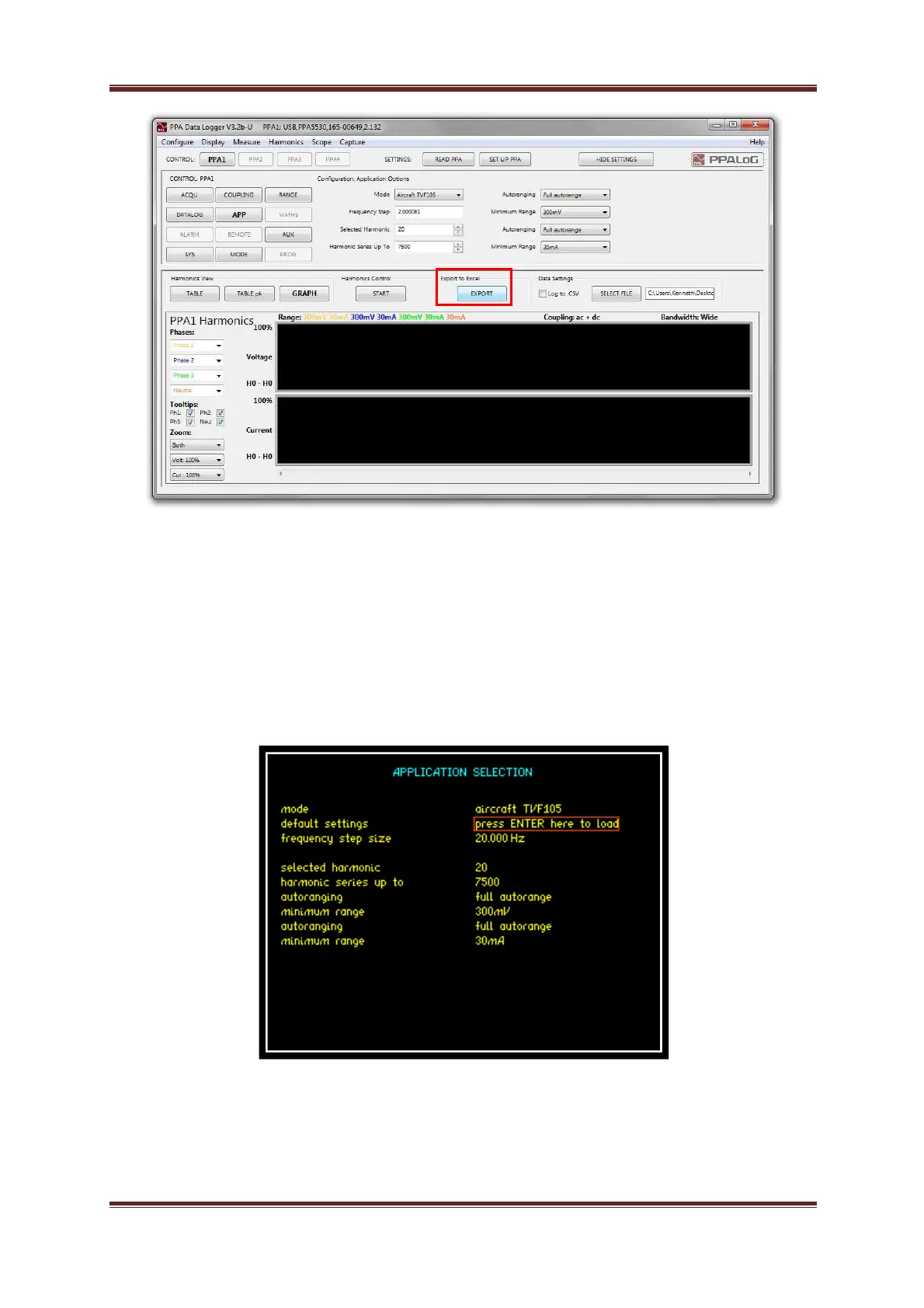

Rather than performing steps 1-5 above the settings can instead be entered on
the PPA. Press the APP button and set the mode to “Aircraft TVF105”
Use the arrow keys to move the cursor to the default settings. Press the enter
key on the PPA to enter the default settings. Finally click on the “Read PPA”
button in the software to transfer the settings from the PPA into the software.
Ensure the software is displaying the Harmonic test window and then proceed
from step 6 above.
6.5.10 Interharmonic Sweeps
Interharmonic voltages and currents can be measured and displayed in an
Excel report using PPA Datalogger software.
