PPA55xx Quick User Guide
Page 77

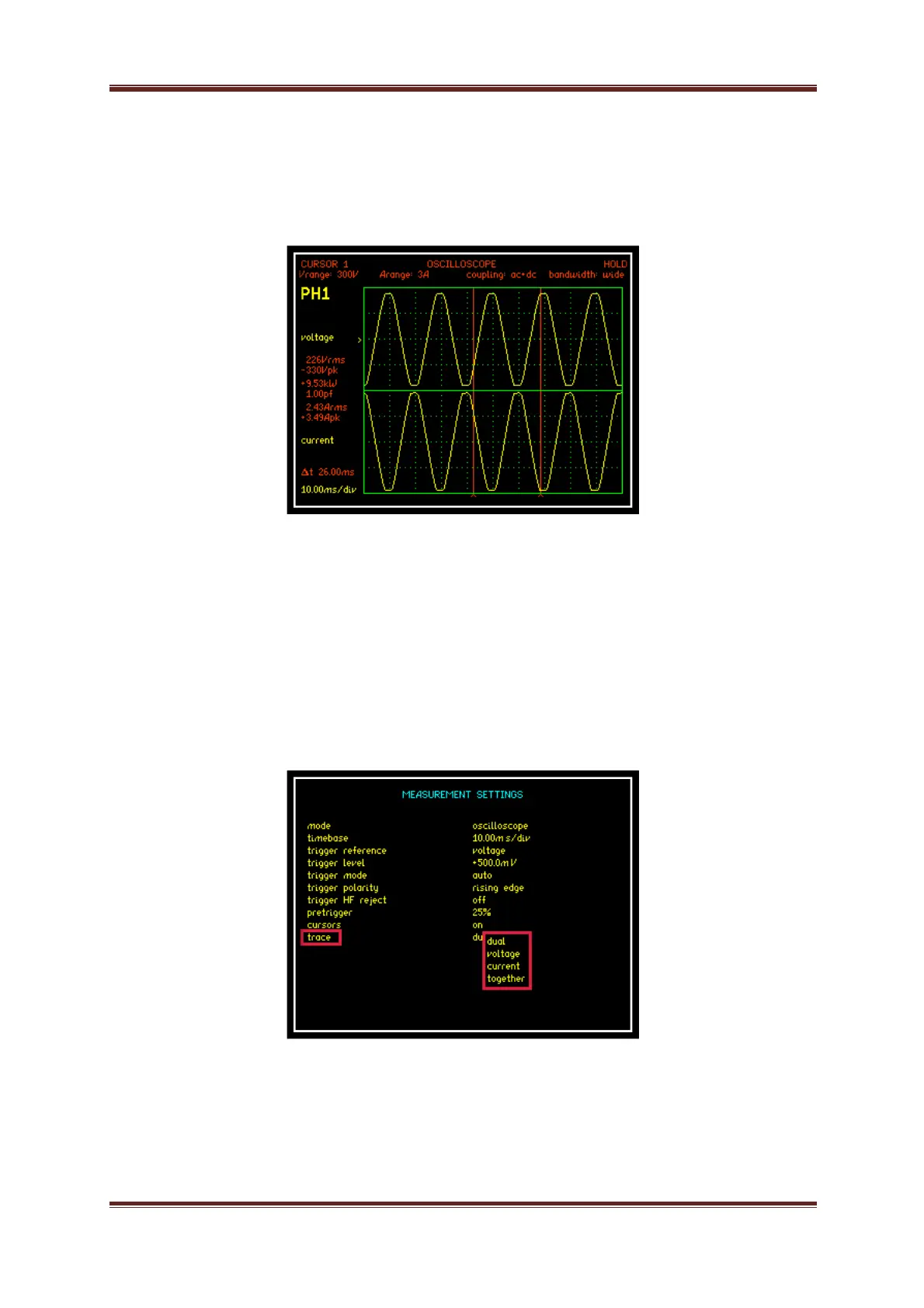

Screenshot from Scope display with “Dual” cursors configured
From the screenshot above the display shows all fundamental measurements
from the position of cursor 1. Also displayed is the time difference between the 2
cursors, “delta t” = 26.00ms with the timebase set to 10ms/div
Trace: Set which waveform the user wishes to be displayed at any one time
from the 4 options within the drop down menu
