PPA55xx Quick User Guide

Page 98

External current shunts can be used as an alternative to the instruments internal

shunt as a fixed value Impedance circuit. Note do not use both shunts together

Test equipment for demonstration:

1 x Inverter/Motor test unit (single phase)

1 x HF 003 Current Shunt (shunt resistance = 470mΩ)

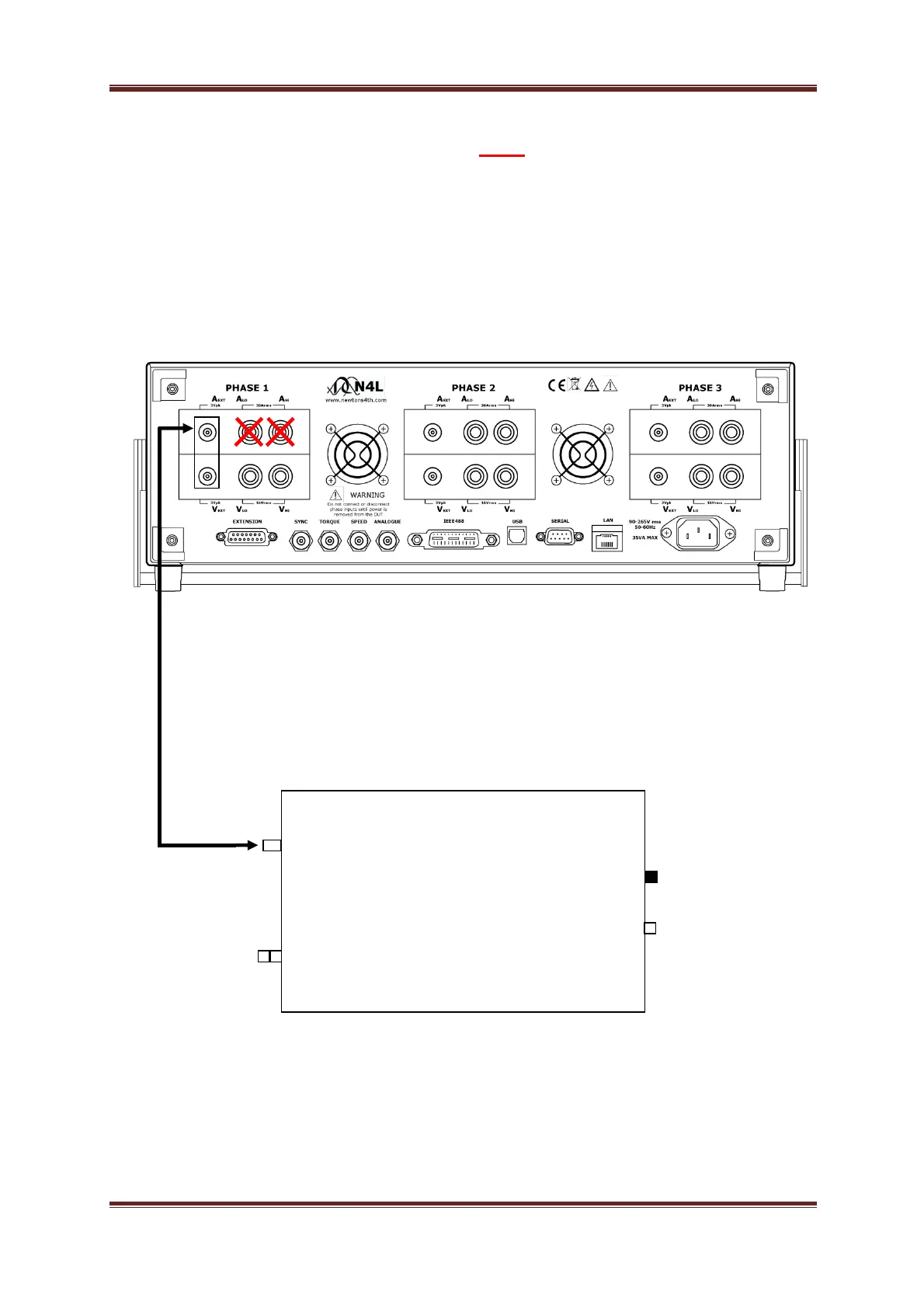

Wiring Configuration:

Connect BNC safety lead between the “A EXT” BNC on the

rear of the PPA55xx and the BNC connector on the HF shunt

*Remember disconnect all leads to appropriate channels internal current shunt*

Set up PPA to read the external current shunt:

Press “RANGE” button

HF003 Current Shunt

A Low

A High

BNC

Earth

Stud

Connect Yellow

4mm lead from

source

Connect Black

4mm lead from

Load

Shunt Resistance = 470mΩ

Continuous Current = 3A rms

Max
