Page-6

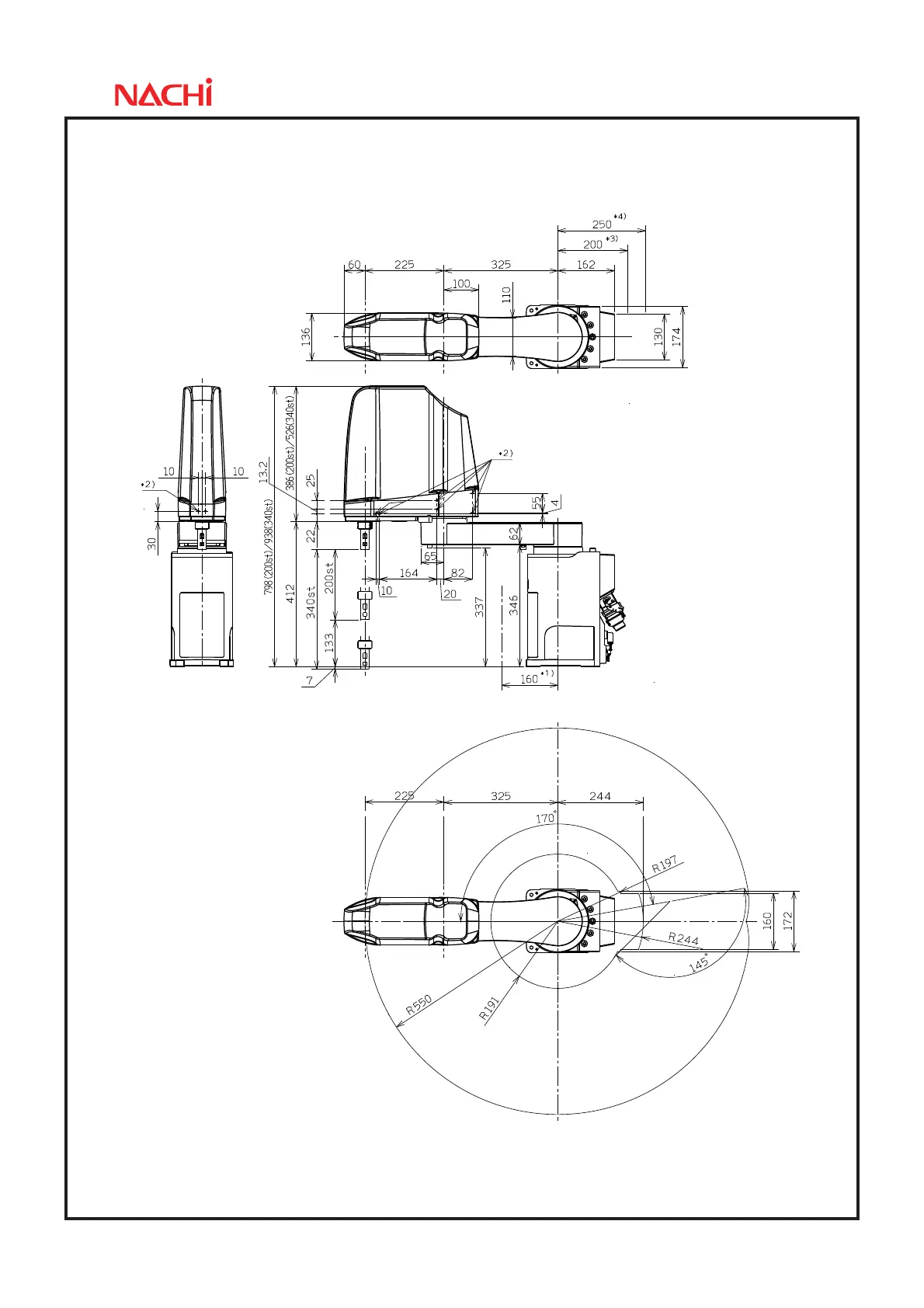

【ES06-5520-01】【ES06-5534-01】
*1) Needed space to replace battery.
*2) Screws to fix tube and pipe for customer.
*3) Minimum bending radius of wire harness.
*4) Needed space to connect wire harness.
