Page-7
【

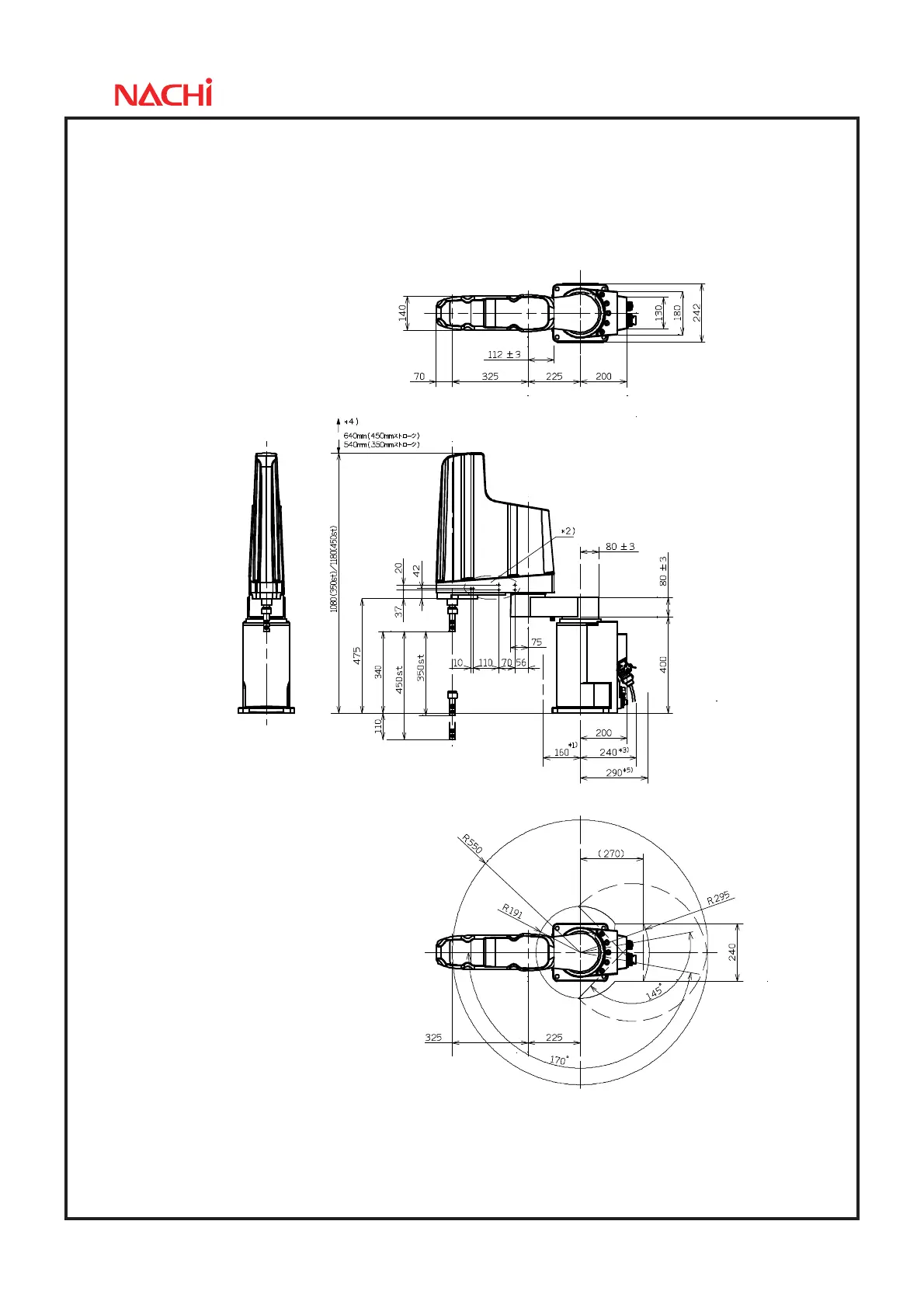

ES12-5535-01
】【
ES12-5
545-01
】
*1) Needed space to replace battery
.
*2) Screws to fix tube and pipe for customer.
*3) Minimum bending radius of wire harness.
*4) Needed space to mount/dismount cover
.
*5) Needed space to connect wire harness.
8
10
