NAD 300 - Disassembly Instructions; Dial Stringing Detail

1)
2l

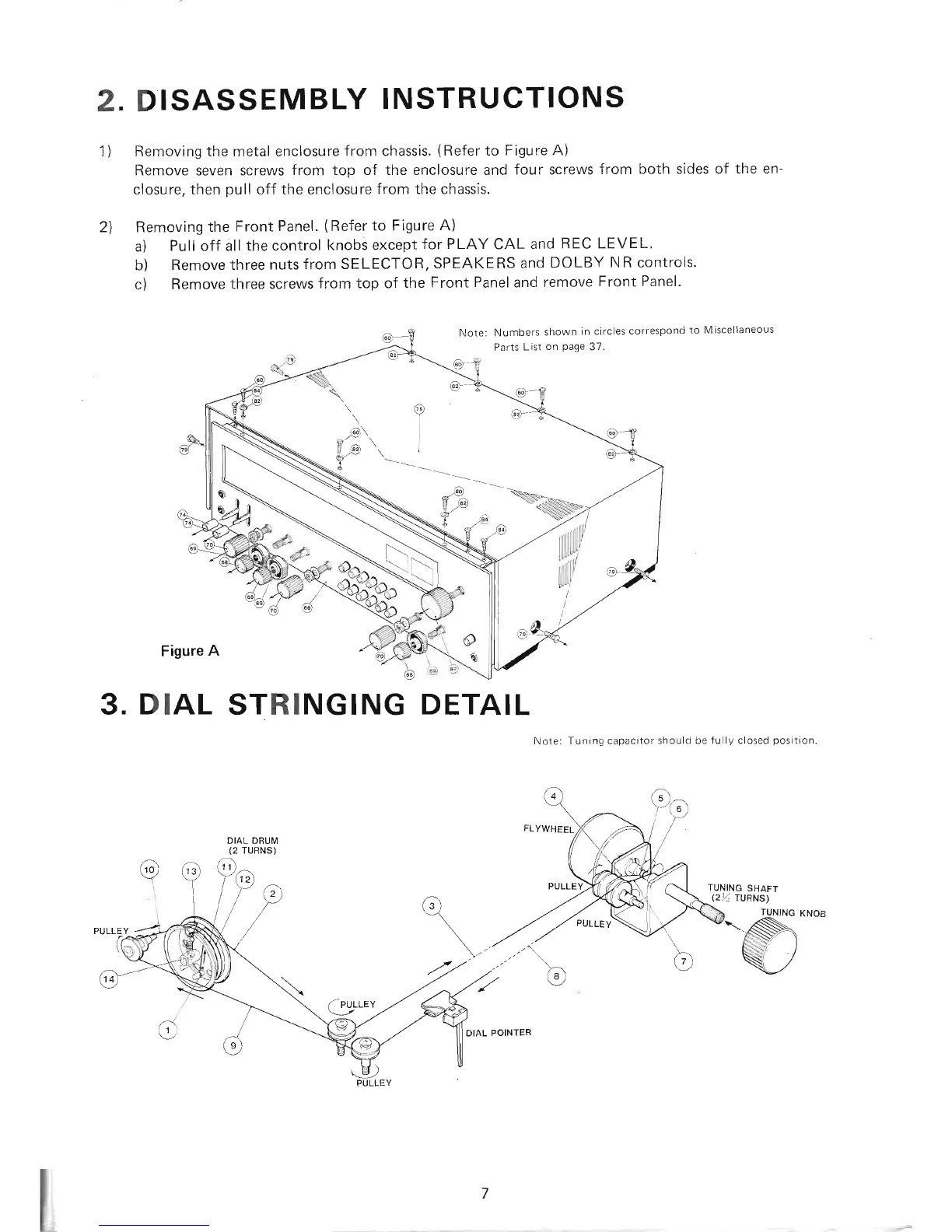

2. DISASSEMBLY
INSTRUCTIONS
Removing the metal enclosure
from chassis.
(Refer
to Figure
A)
Remove
seven screws
from top
of the enclosure and
four screws
from both sides
of
the en-
closure, then
pull
off
the
enclosure
f rom the chassis.
Removing
the
Front
Panel.
(Refer
to
Figure A)
a)
Pull
off
all the
control
knobs except
for
PLAY
CAL
and
REC LEVEL.
b) Remove
three nuts
from
SELECTOR,
SPEAKERS
and
DOLBY
NR controls.
c)
Remove
three screws
from top of
the
Front
Panel
and
remove
Front
Panel.
Note: Numbers
shown
in circles
correspond
to
Miscellaneous
Parts
List
on
Page
37.
Figure
A
'-V)
PIJLLEY
DIAL
DRUM
(2
TURNS)
6l)
Y6;)
l'/e
t/r
\i' /
3.
DIAL
STRINGING
DETAIL
. PULLEY
Note: Tuning capacitor
should be
fully
closed
position
!D\
Er^ \
q.P9
,
I
r
