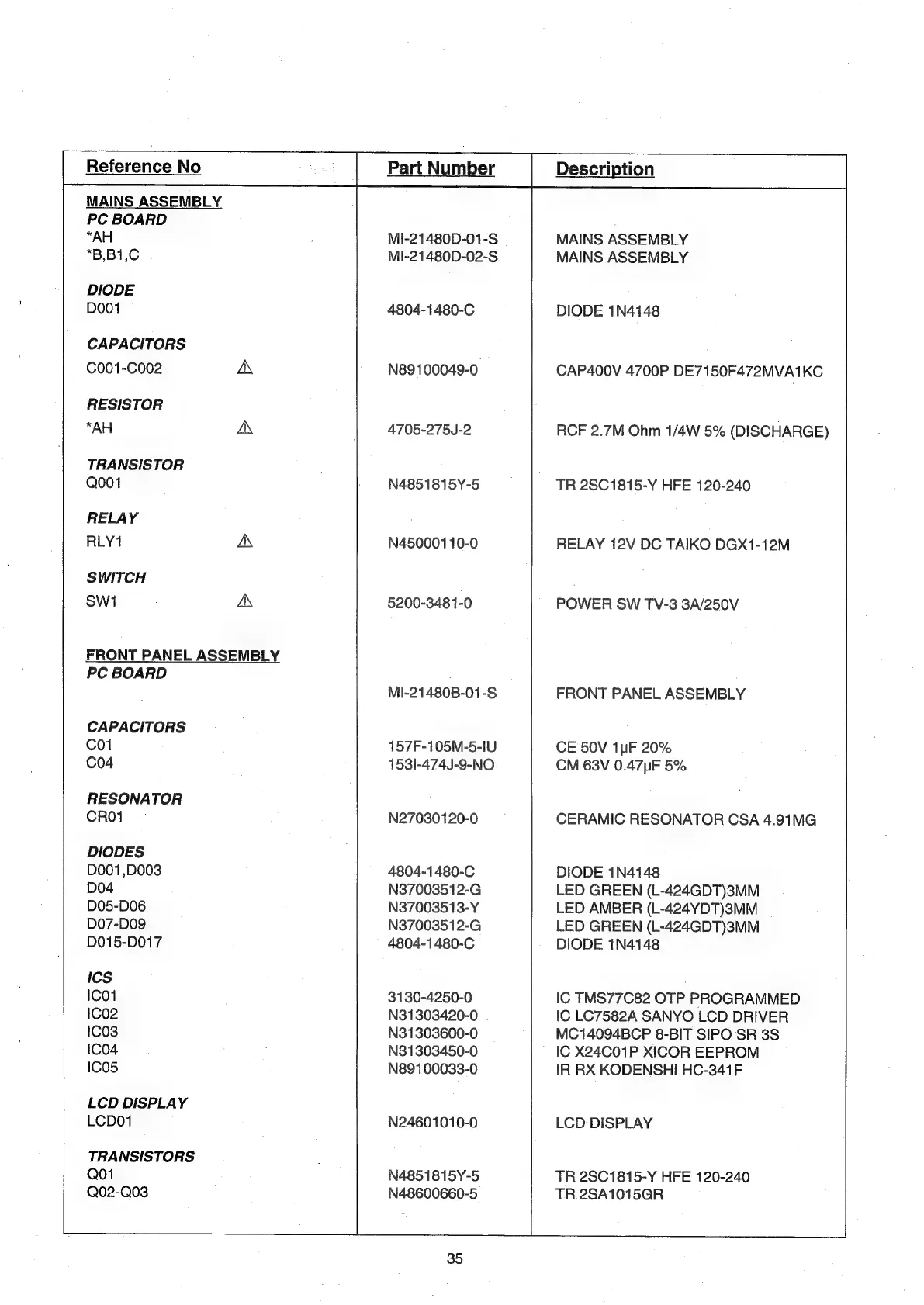

MAINS ASSEMBLY
PC BOARD
“AH
“B,B1,C
DIODE
DOO1
CAPACITORS
C001-C002 A
RESISTOR
*AH A
TRANSISTOR
Q001
RELAY
RLY1 A
SWITCH
Swi A
FRONT PANEL ASSEMBLY
PC BOARD
CAPACITORS
Co1
C04
RESONATOR
CRO1
DIODES
D001 ,D003
DO04
DO5-D06
DO07-D09
D015-D017
Ics
ICO1
ICO2
ICO3
IC04
ICO5
LCD DISPLAY
LCDO1
TRANSISTORS
Q01
Q02-Q03
Part Number
Mi-21480D-01-S
MI-21480D-02-S
4804-1480-C
N89100049-0
4705-275J-2
N4851815Y-5
N450001 10-0
5200-3481 -0
MI-21480B-01-S
157F-105M-5-IU
1531-474J-9-NO
N27030120-0
4804-1480-C
N37003512-G
N37003513-Y
N37003512-G
4804-1480-C
3130-4250-0
N31303420-0
N31303600-0
N31303450-0
N89100033-0
N24601010-0
N4851815Y-5
N48600660-5
35
Description
MAINS ASSEMBLY
MAINS ASSEMBLY
DIODE 1N4148
CAP400V 4700P DE71 50F472MVA1KC
RCF 2.7M Ohm 1/4W 5% (DISCHARGE)
TR 28C1815-Y HFE 120-240
RELAY 12V DC TAIKO DGX1-12M
POWER SW TV-3 3A/250V
FRONT PANEL ASSEMBLY
CE 50V 1pF 20%
CM 63V 0.47uF 5%
CERAMIC RESONATOR CSA 4.91MG
DIODE 1N4148
LED GREEN (L-424GDT)3MM
LED AMBER (L-424YDT)3MM
LED GREEN (L-424GDT)3MM
DIODE 1N4148
IC TMS77C82 OTP PROGRAMMED
IC LC7582A SANYO LCD DRIVER
MC14094BCP 8-BIT SIPO SR 3S
IC X24C01P XICOR EEPROM
IR RX KODENSHI HC-341F
LCD DISPLAY
TR 28C1815-Y HFE 120-240
TR 2SA1015GR
