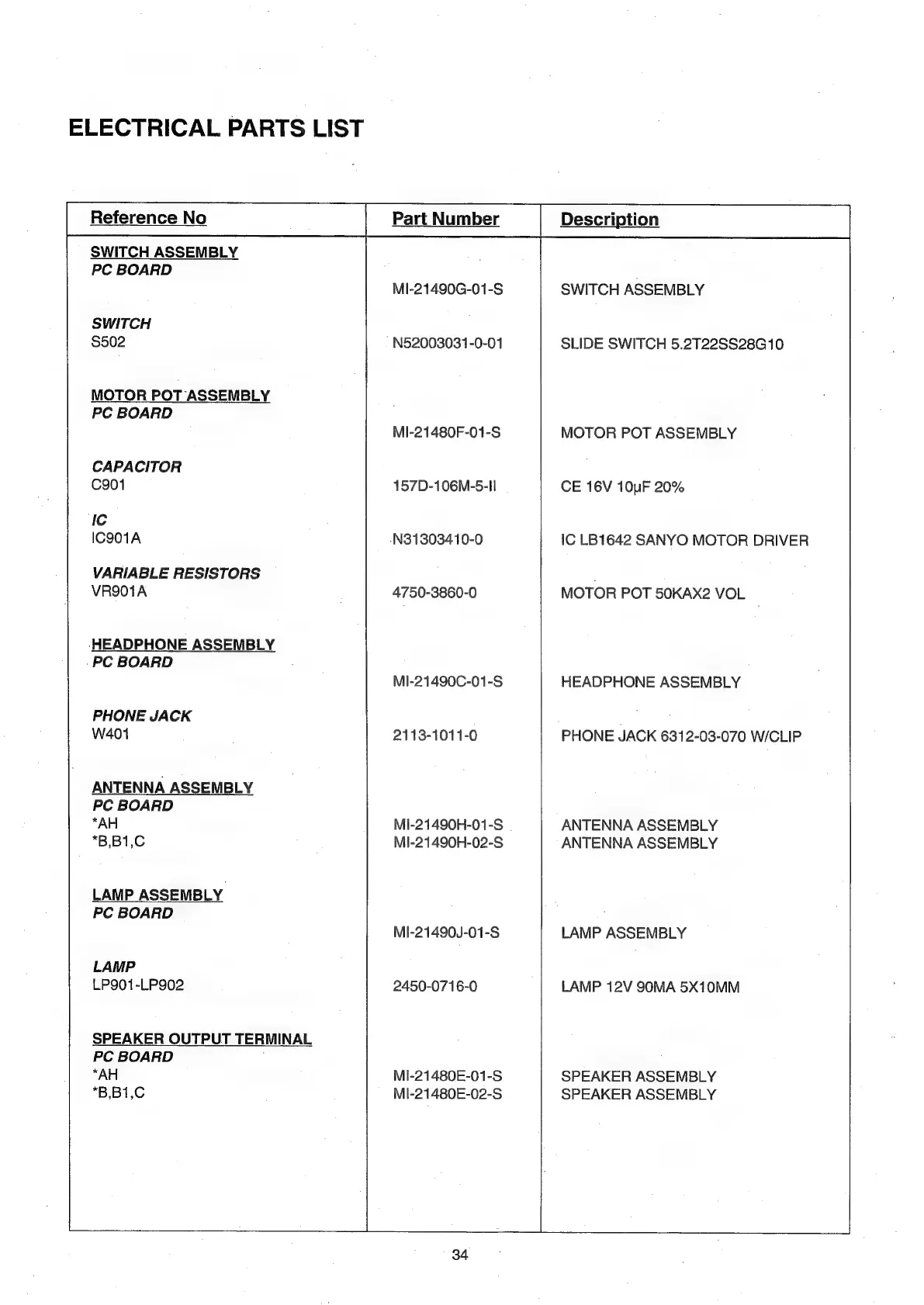

ELECTRICAL PARTS LIST
SWITCH ASSEMBLY
PC BOARD
SWITCH
$502
MOTOR POT ASSEMBLY
PC BOARD
CAPACITOR
C901
Ic
ICQ01A
VARIABLE RESISTORS
VROO1A
‘HEADPHONE ASSEMBLY
PC BOARD
PHONE JACK
w401
ANTENNA ASSEMBLY
PC BOARD
*AH
“B,B1,C
LAMP ASSEMBLY
PC BOARD
LAMP
LP901-LP902
SPEAKER OUTPUT TERMINAL
PC BOARD
“AH
“B,B1,C
Part Number Description
MI-21490G-01-S
SWITCH ASSEMBLY
~N52003031-0-01 SLIDE SWITCH 5.2T22SS28G10
MI-21480F-01-S MOTOR POT ASSEMBLY
157D-106M-5-Il CE 16V 10yF 20%
-N31303410-0 iC LB1642 SANYO MOTOR DRIVER
4750-3860-0 MOTOR POT 50KAX2 VOL
MI-21490C-01-S HEADPHONE ASSEMBLY
2113-1011-0 PHONE JACK 6312-03-070 W/CLIP
MI-21490H-01-S ANTENNA ASSEMBLY
Ml-21490H-02-S ANTENNA ASSEMBLY
Ml-21490J-01-S LAMP ASSEMBLY
2450-0716-0 LAMP 12V 90MA 5X10MM
SPEAKER ASSEMBLY
SPEAKER ASSEMBLY
MI-21480E-01-S
MI-21480E-02-S
