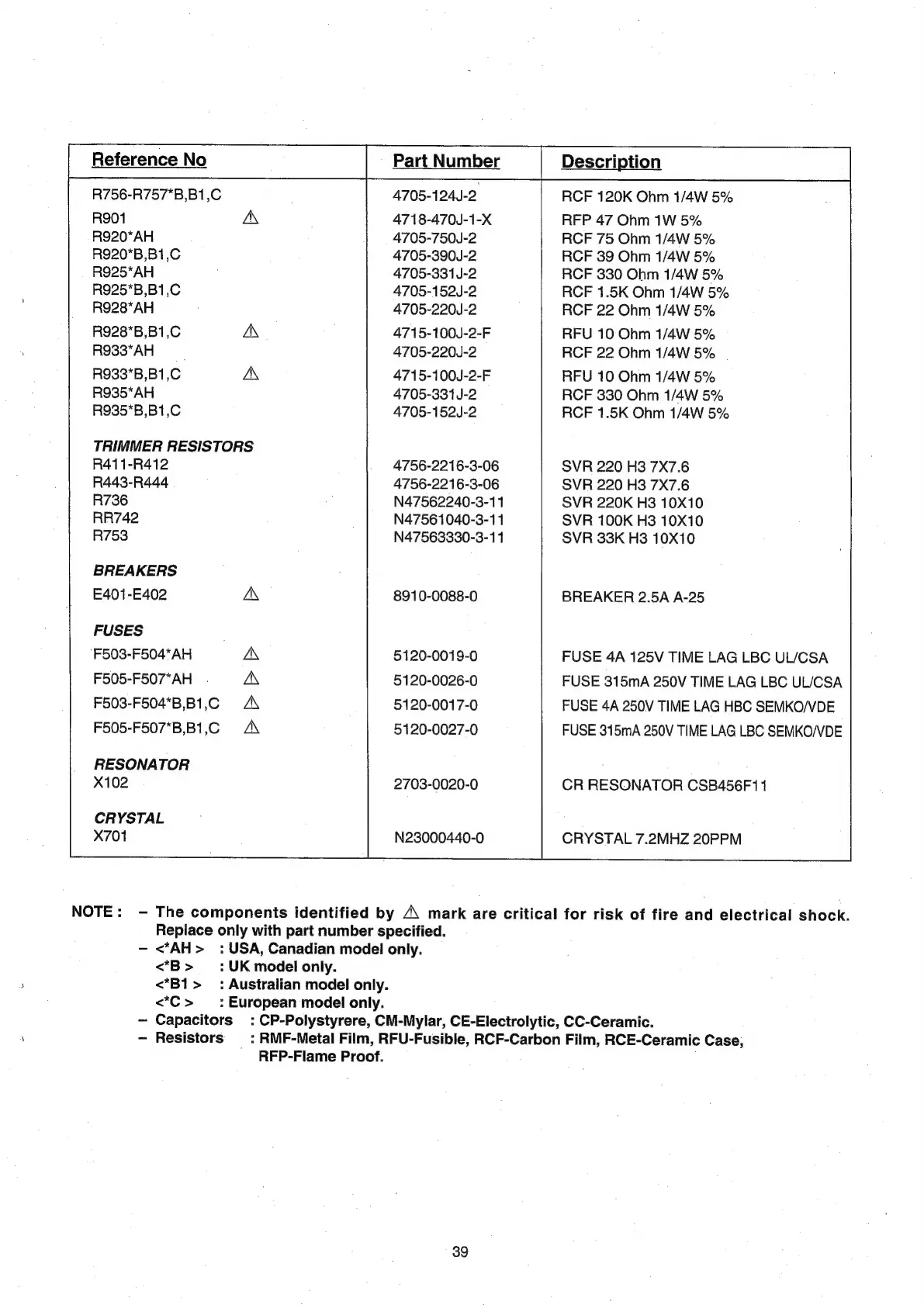

NAD 712 - Electrical Parts List (Continued); Resistors, Trimmers, and Breakers; Fuses, Resonator, and Crystal

R756-R757*B,B1,C
4705-124J-2
RCF
120K
Ohm
1/4W
5%
R901
A
4718-470J-1-X
RFP 47
Ohm
1W 5%
R920*AH
4705-750J-2
RCF
75
Ohm 1/4W
5%
R920*B,B1,C
4705-390J-2
RCF
39
Ohm
1/4W
5%
R925*AH
4705-331J-2
RCF
330
Ohm
1/4W
5%
R925*B,B1,C
4705-152J-2
RCF
1.5K
Ohm
1/4W
5%
R928*AH
4705-220J-2
RCF
22
Ohm
1/4W
5%
R928*B,B1,C
A
4715-100J-2-F
RFU
10
Ohm
1/4W
5%
R933*AH
4705-220J-2
RCF
22
Ohm
1/4W
5%
R933*B,B1,C
A
4715-100J-2-F
RFU
10
Ohm
1/4W
5%
R935*AH
4705-331
J-2
RCF
330
Ohm
1/4W
5%
R935*B,B1,C
4705-152J-2
RCF
1.5K
Ohm
1/4W
5%
TRIMMER RESISTORS
R411-R412
4756-2216-3-06
SVR
220
H3
7X7.6
R443-R444
4756-2216-3-06
SVR
220
H3
7X7.6
R736
N47562240-3-11
SVR
220K
H3
10X10
RR742
N47561040-3-11
SVR
100K
H3
10X10
R753
N47563330-3-11
SVR
33K
H3
10X10
BREAKERS
E401-E402
8910-0088-0
BREAKER 2.5A A-25
FUSES
‘F503-F504*AH
|
A
5120-0019-0
FUSE
4A
125V
TIME
LAG
LBC
UL/CSA
F505-F507*AH
AN
5120-0026-0
FUSE
315mA
250V
TIME
LAG
LBC
UL/CSA
F503-F504*B,B1,C
AX
5120-0017-0
FUSE
4A
250V
TIME
LAG
HBC
SEMKO/VDE
F505-F507*B,B1,C
A\
5120-0027-0
FUSE
315mA
250V
TIME
LAG
LBC
SEMKO/VDE
RESONATOR
X102
2703-0020-0 CR RESONATOR CSB456F1 1
CRYSTAL
X701
N23000440-0 CRYSTAL 7.2MHZ 20PPM
NOTE:
-
The
components
identified
by
A\
mark
are
critical
for
risk
of
fire
and
electrical
shock.
Replace
only
with
part
number
specified.
-
<*“AH>
:
USA,
Canadian
model
only.
<*B> :UK model only.
<*B1>_ : Australian model only.
<*C> —_: European model only.
~ Capacitors : CP-Polystyrere, CM-Mylar, CE-Electrolytic, CC-Ceramic.
-
Resistors
:
RMF-Metal
Film,
RFU-Fusible,
RCF-Carbon
Film,
RCE-Ceramic
Case,
RFP-Flame Proof.
39
