NAD 712 - Disassembly Procedures; Removing the Top Cover

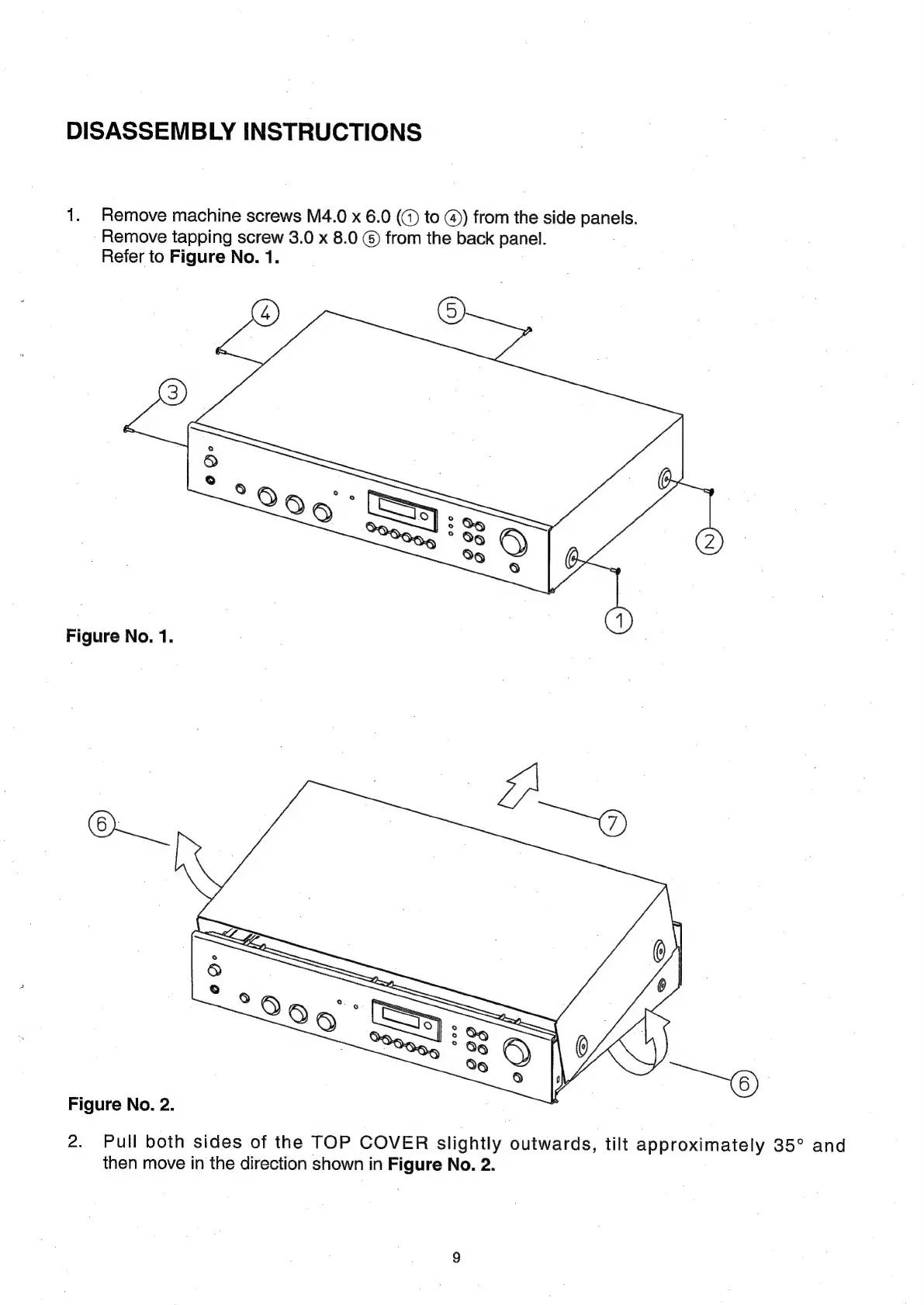

DISASSEMBLY INSTRUCTIONS
1.
Remove
machine
screws
M4.0
x
6.0
(@
to
@)
from
the
side
panels.
Remove
tapping
screw
3.0
x
8.0
©
from
the
back
panel.
Refer
to
Figure
No.
1.
Figure No. 1.
Figure No. 2.
2.
Pull
both
sides
of
the
TOP
COVER
slightly
outwards,
tilt
approximately
35°
and
then
move
in
the
direction
shown
in
Figure
No.
2.
