TRANSISTOR, REGULATOR IC BLOCK DIAGRAM
TO-92L
1. Emitter
2. Collector
3. Base
1. Emitter
2. Collector
3. Base
KSA1175Y
KTA1271Y
DTC144ES
DTA114YS
DTC143TS
2SC4137V
2SD13600
KTD1302T
KTC3200GR
KTC31940
KTA1268GR
KSC2785Y
DTC144TS
KSD811Y
DTA144ES
DTC114YS
DTA144TS
KSC34230
1. Emitter
2. Collector
3. Base
TO-126
TO-92
123
123
123
1. Base
2. Collector
3. Emitter
KSA614Y
2SB1186AE
KSD288Y
2SD1763AE
TO-220
123
1. DC IN
2. GND
3. DC OUT
MC7815C MC7805C
TO-220
123
1. DC IN
2. DC OUT
3. GND
MC7915C
TO-220
123
1. Base
2. Collector
3. Emitter
2SD3856
2SA1492
2SC4468
2SA1695
KSA916Y KSC2316Y
1. Emitter
2. Collector
3. Base
TO-3P
TO-92L
123
123

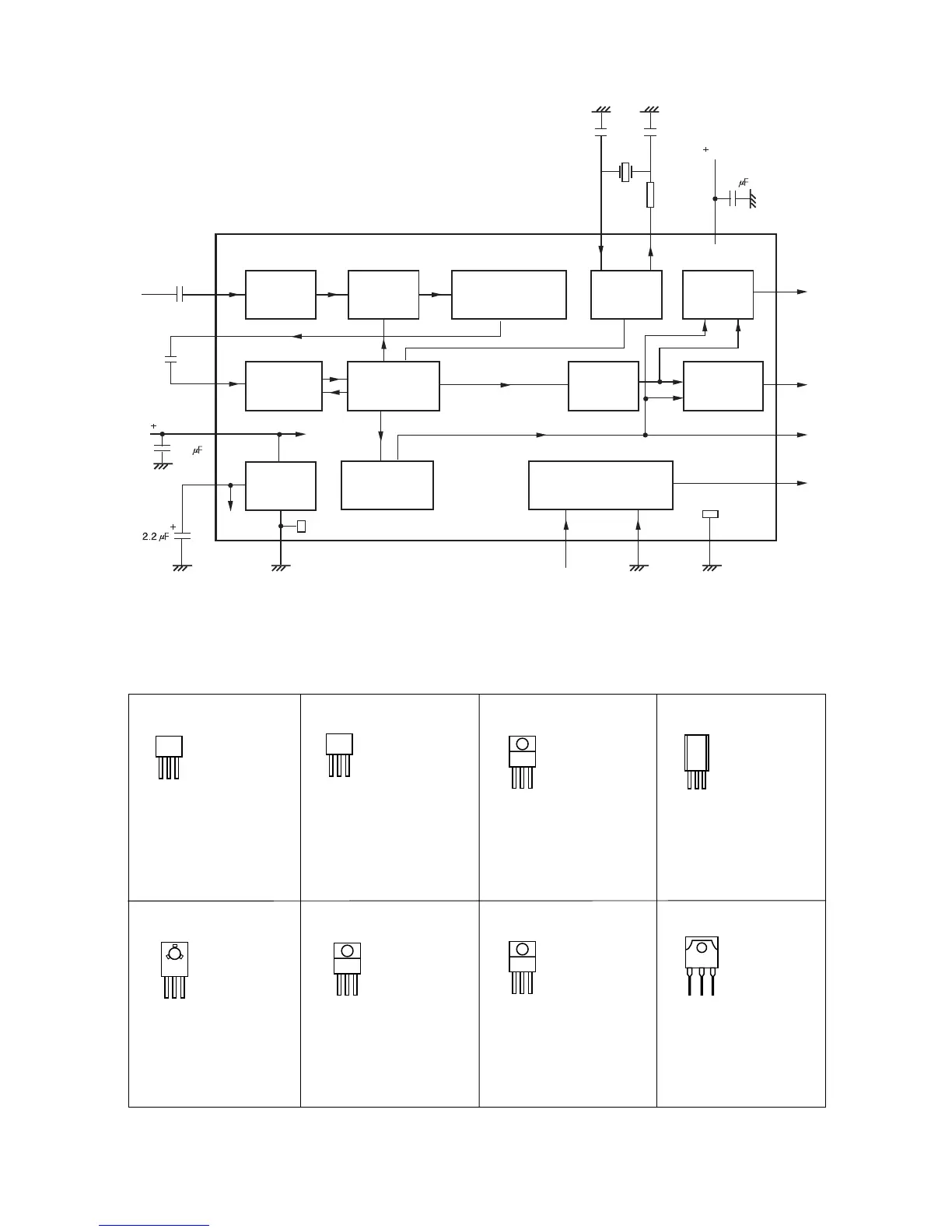

SAA6579TV1 (RDS FILTER IC83)
ANTI-
ALIASING
FILTER
57 kHz
BANDPASS
RECONSTRUCTION
FILTER
OSCILLATOR
AND
DIVIDER
QUALITY BIT
GENERATOR
DIFFERENTIAN
DECODER
BIPHASE
COSTAS LOOP
CLOCKED
COMPARATOR
REFERENCE
VOLTAGE
CLOCK
AND SYNC
TEST LOGIC AND OUTPUT
SELECTOR SWITCH
REGENERATION
VARIABLE AND
FIXED DIVIDER
SYMBOL
MODE TEST
V
SSD
MEH162
SAA6579
V
SSA
V
DDA
0.1
V
ref
V
p1
0.1
2.2 kΩ
82 pF47 pF
4.332/8.664 MHz
RDCL
RDDA
QUAL
12
V
DDD
OSCOOSCI
330 pF
MUX
MPX
signal
SCOUT
560 pF
CIN
1413
4
8
7
5
5V
3
6 9 10 11
15
16
2
1
T57
DECODER
(8th ORDER)
5V
