NAD T 753 - Rear Panel; Front Panel View

6
12 3456789
21
10
20 1119 12 13 14 15 16 17 18
FRONT PANEL

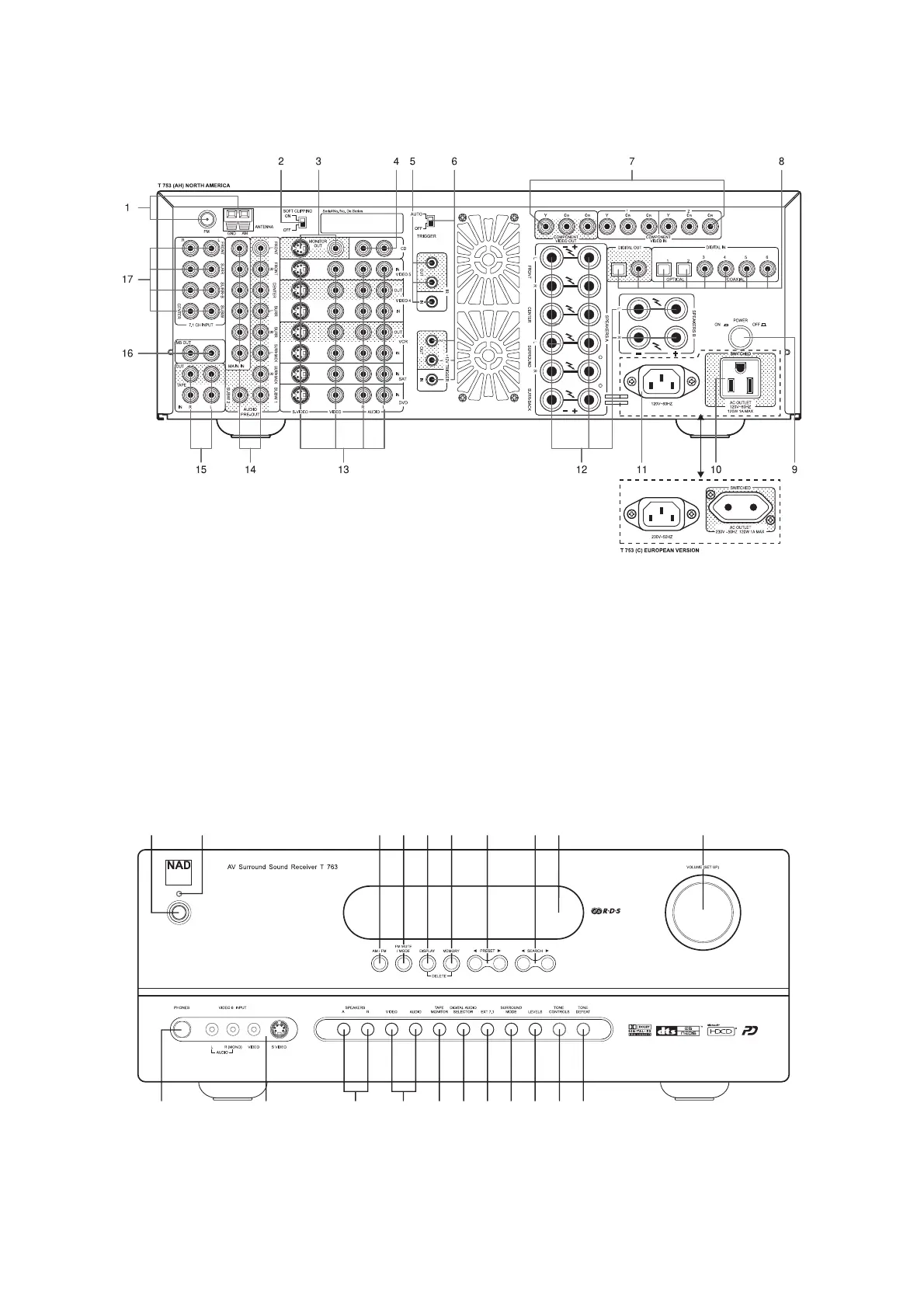

REAR PANEL / FRONT PANEL VIEW
REAR PANEL
1. FM & AM ANTENNA
2. SOFT CLIPPING ON/OFF
3. MONITOR OUT
4. CD INPUT
5. IR INPUT & OUTPUT
6. +12V TRIGGER INPUT & OUTPUT
7. COMPONENT VIDEO IN &
COMPONENT VIDEO OUT
8. DIGITAL AUDIO INPUT &
DIGITAL AUDIO OUTPUT
9. POWER SWITCH
10. SWITCHED AC OUTLETS
11. AC POWER INLET
12. SPEAKERS A & B
13. DVD, SAT, VCR, VIDEO 4 & VIDEO 5
14. MAIN IN / AUDIO PRE-OUTS /
SUBWOOFER OUT
15. TAPE INPUT & OUTPUT
16. MS OUT (MULTISOURCE OUT)
17. 7.1 CH. INPUTS
1. STANDBY SWITCH
2. STANDBY LED
3. AM / FM
4. FM MUTE / MODE
5. DISPLAY
6. MEMORY
7. PRESET DOWN / UP
8. SEARCH DOWN / UP
9. VFL DISPLAY
10. VOLUME (SETUP)
11. SOURCE DOWN / UP
12. SURROUND MODE
13. LEVELS
14. TONE DEFEAT
15. TONE CONTROLS
16. SPEAKERS A & B
17. VIDEO 6 INPUT
18. PHONES
