DETAILS & WAVEFORMS ON SYSTEM TEST & DEBUGGING
DSP

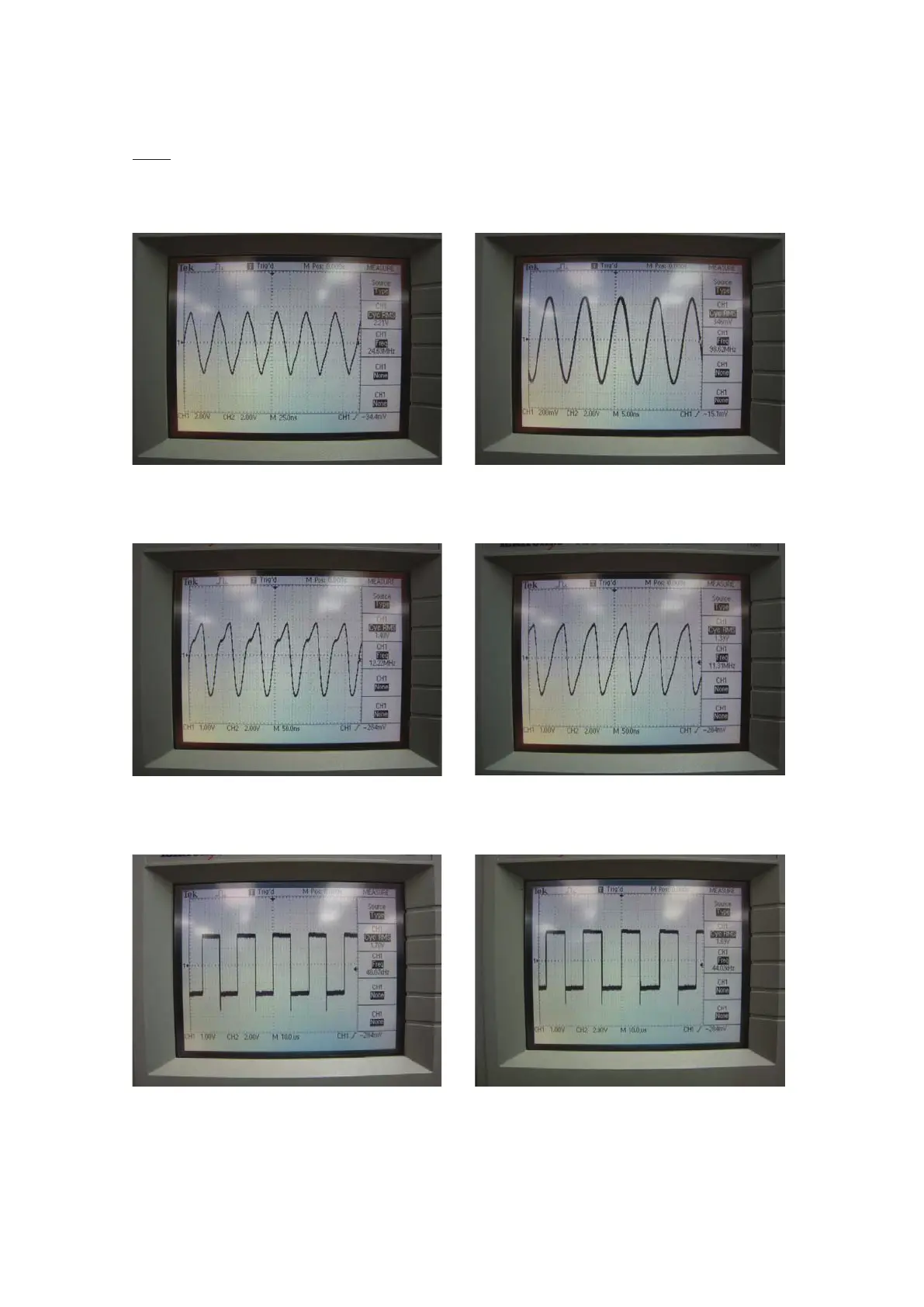

U1007 Pin 70 - Clock for external memory,
100MHz
U1007 Pin 17 - X1001C output, 24.576MHz
U1007 Pin 2 - Master clock (Analog), 12.288MHz U1007 Pin 2 - Master clock (PCM), 11.2896MHz
U1007 Pin 12 – Left/Right clock (Analog), 48kHz U1007 Pin 12 - Left/Right clock (PCM), 44.1kHz
