DISASSEMBLY INSTRUCTIONS
1. Remove machine screws M4.0 x 8.0 (1 to 6) from the side panels.
Remove tapping screw 3.0 x 8.0 (7 to 10) from the back panel.
Refer to Figure No. 1.










2. Pull both sides of the TOP COVER slightly outwards 11 and tilt approx. 35 ° and then
remove in the direction as indicated by the arrow 12. Refer to Figure No. 2.

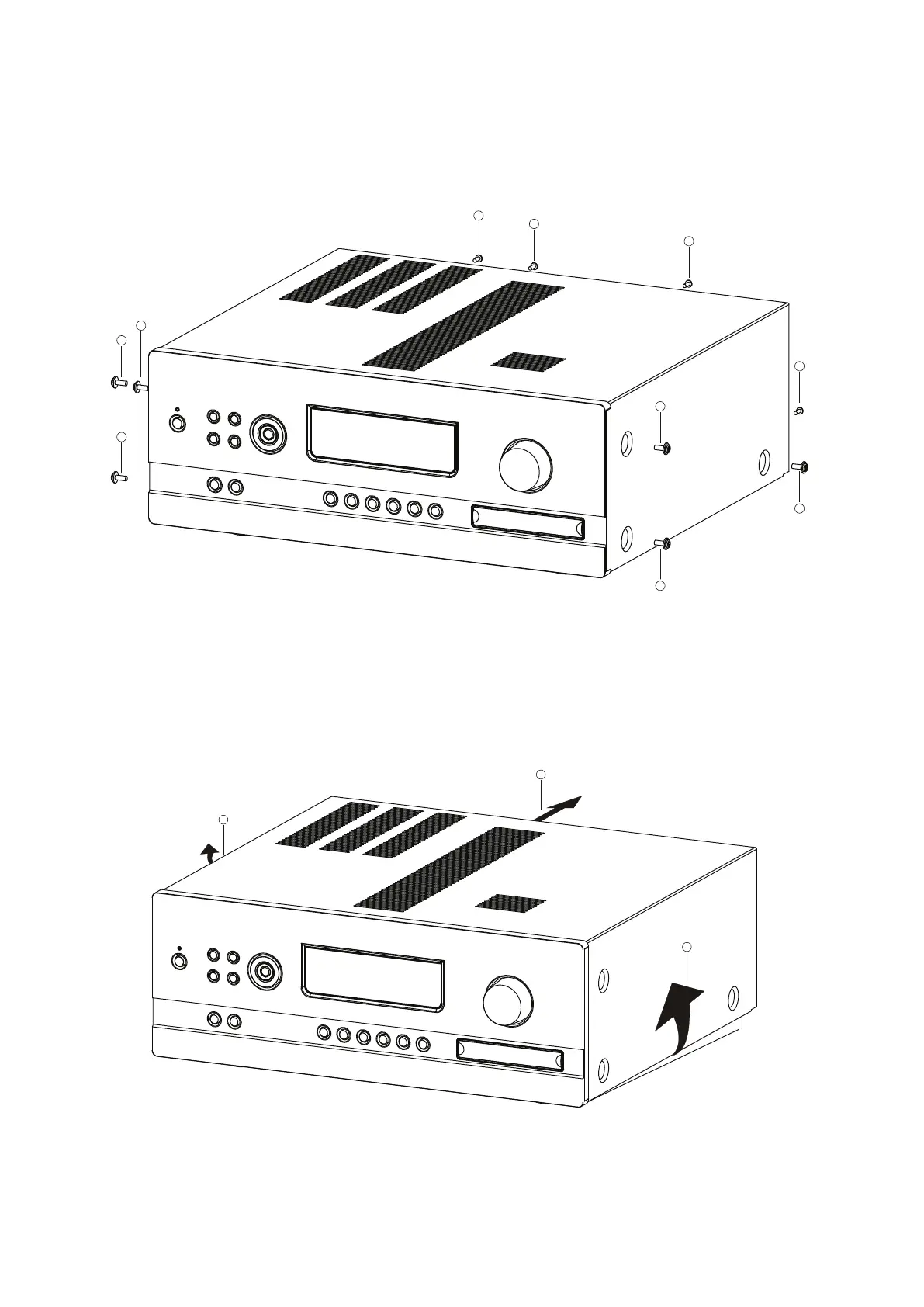

Figure No. 1



Figure No. 2
