NAD T 775 - Page 127

Components in the red boxes are
included in the spare part kit part
number 52-940-0765-90
125

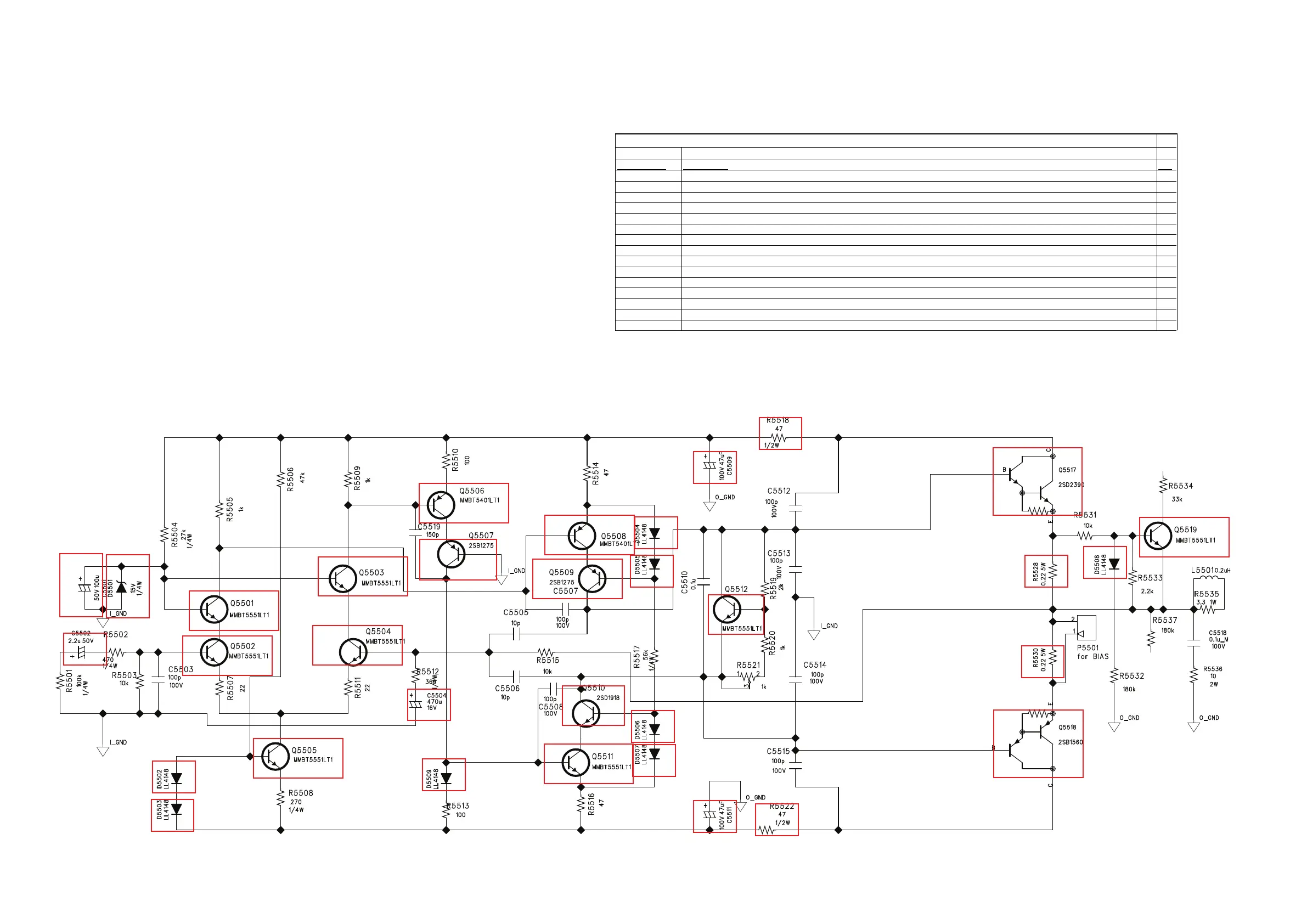

T775 Power amplifier components (single channel)
Part Number Description Qty
02-005-0063-90 RES WW 0.22 OHM 5% 5W 2
02-007-0328-90 RES SMD 47 OHM 5% 1/2W 2
03-009-0137-90
CAP ELEC SMD 100uF 50V +/-20%
1
03-009-0141-90 CAP ELEC SMD 2.2uF 50V +/-20% 1
03-009-0144-90 CAP ELEC SMD 470uF 16V +/-20% 1
03-009-0145-90 CAP ELEC SMD 47uF 100V +/-20% 2
04-006-0021-90 SMD DIODE LL4148 SOD80 8
04-007-0035-90 DIODE ZENER SMD 15V 500mW 5% SOD123 MMSZ5245B 1
05-001-0100-90 TRANSISTOR PW DARLINGTON PNP 10A/150V HFE P 6500-20000 TO-3PB 2SB1560 (w/ MICAx1) 1
05-001-0101-90 TRANSISTOR PW DARLINGTON NPN 10A/150V HFE P 6500-20000 TO-3PB 2SD2390 (w/ MICAx1) 1
05-004-0018-90
SMD Transistor MMBT5551LT1G NPN SOT-23
8
05-004-0019-90
SMD Transistor MMBT5401LT1G PNP SOT-23
2
05-004-0030-90 XTR 2SD1918 NPN POWER 160V/1.5A 80MHz HFE 120-390 1
05-004-0031-90 XTR 2SB1275 PNP POWER 160V/1.5A 50MHz HFE 82-180 2
