3-8-2. Network Types
3-8-2-1. LAN
1. for the use of fixed IP. (See your network administrator if you do not have this
information.)
2. When DVR is installed in IP sharer that is connected with ADSL, a user can assign fixed
IP to DVR from IP sharer itself using “DMZ” function out of such sharer.
Input IP set in DMZ on “IP” field and Gateway of ADSL modem on “Gateway” field. Similarly,
for Subnet Mask, DNS address, input relevant values in IP sharer.

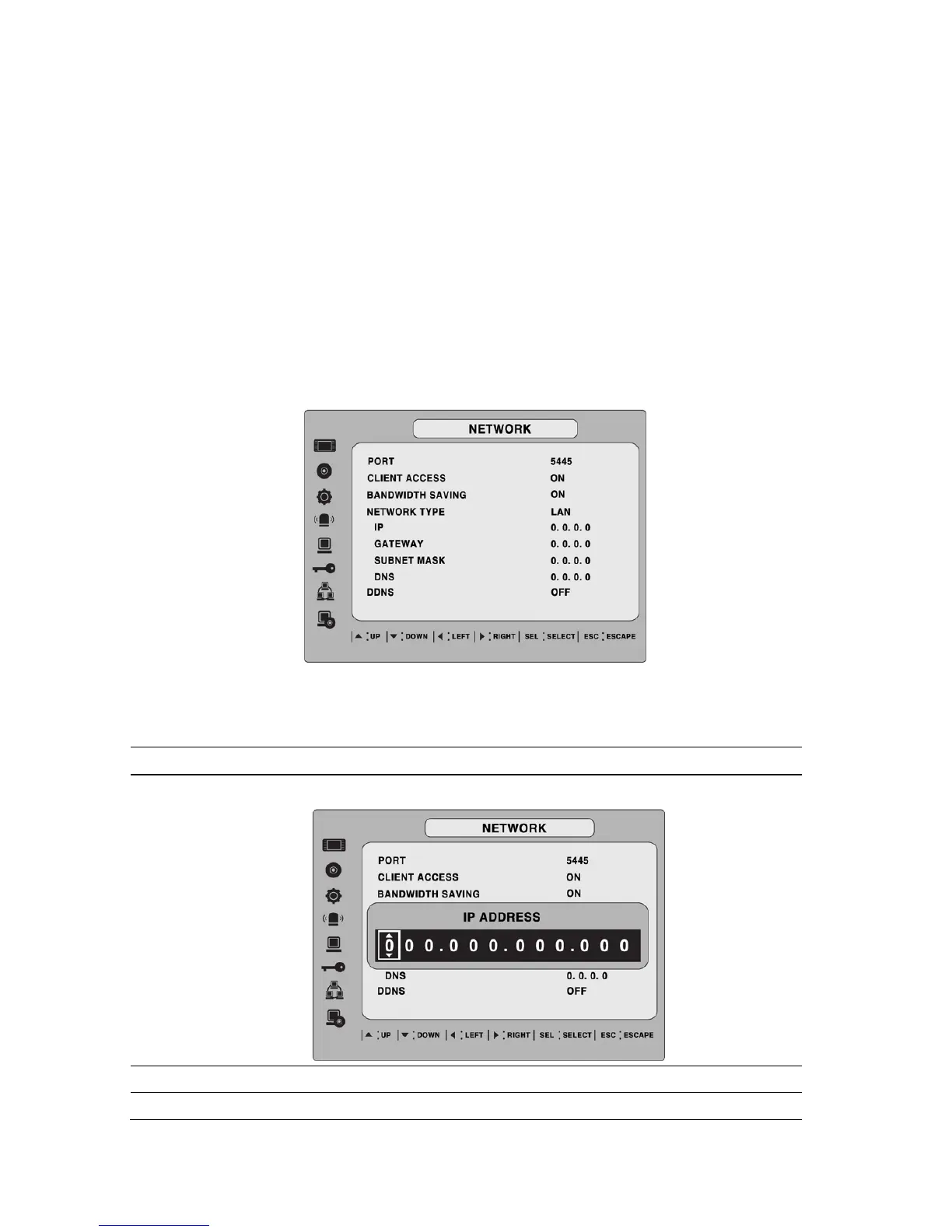

Figure 3.8.2. Network setup screen - LAN
Table 3.8.2. LAN
Item Description
IP
The fixed IP address of the DVR unit
GATEWAY
The IP address of the Gateway
SUBNET MASK
The subnet mask for the LAN
39
