NAIM Amplifiers - 11.4 NAC 282 Connected to Hi-Cap and NAPSC

8
NAC 252
9.3 NAC 252 Connected to Supercap
cable
direction
marker
NAC 252 Burndy
240° 5 to 5 pin DIN
Interconnect Cables
mains input
and fuse
Note: For best performance the Burndy and 5 pin DIN cables should be
run as close together as possible.
to stereo power
amplifiers
to mono or dual mono
power amplifiers
additional signal output
10. NAC 252/Supercap Specification
Input Sensitivities:
75mV, 47kΩ
Overload Margins:
40dB
(all inputs all audio frequencies)
Main Output Level:
0.775V, <50Ω
Tape Output Level:
75mV, 600Ω
Auxiliary Power Outputs:
For Stageline/Prefix phono stage.
Dimensions (H x W x D):
Both 87 x 432 x 314mm
Mains Supply (Supercap):
100-120V or 220-240V, 50/60Hz

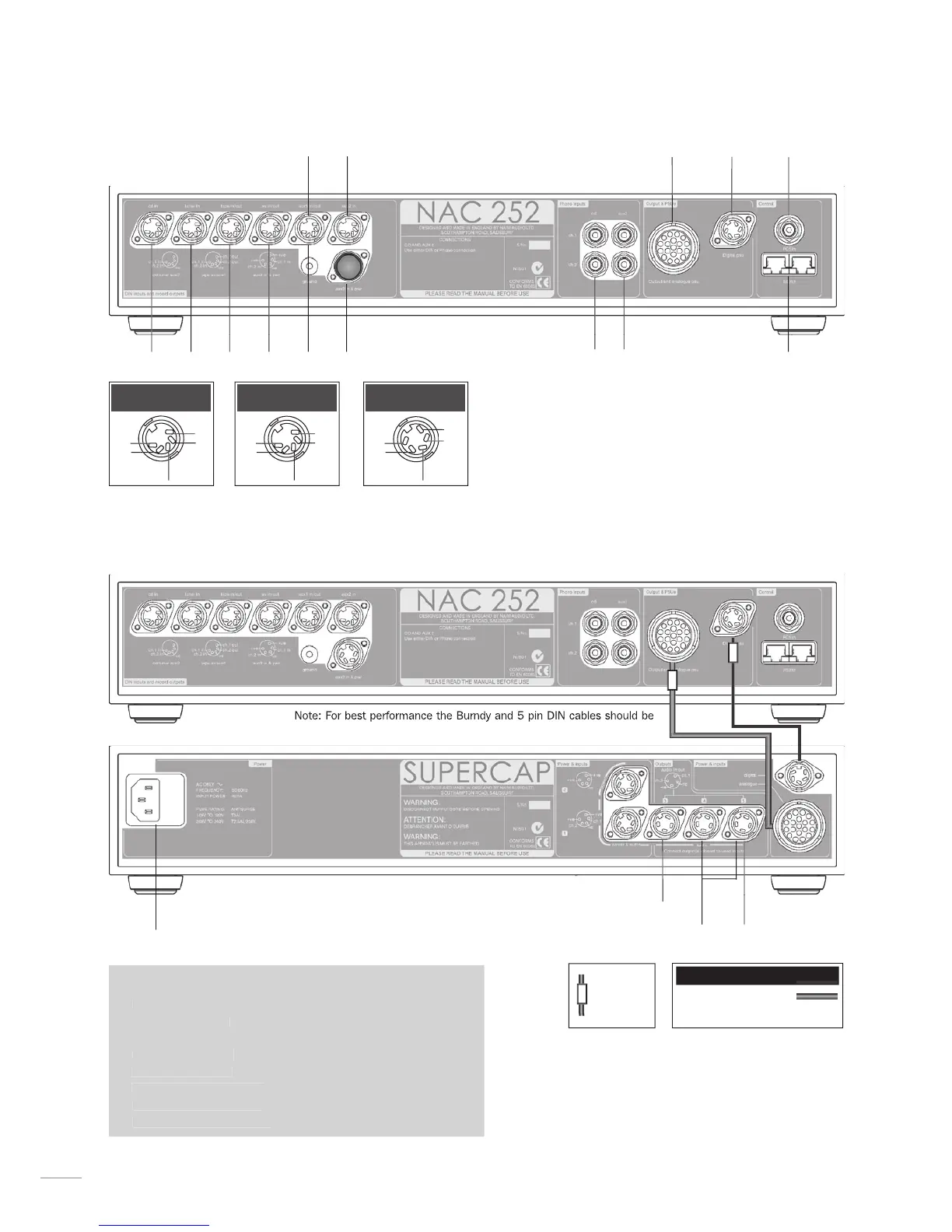

9.2 NAC 252 Rear
in 1
cd
in 2
tuner
in 3
tape
in 4
av
signal
ground
in 6 (alternative)
cd/RCA Phono
ch1
ch2
aux 2/RCA Phono
ch1
ch2
RS232
interface
supercap
RC5
control in
ch1
-ve
nc
nc
ch2
Inputs 1, 2 & 6
ch1
-ve
ch1
(out)
ch2
(out)
ch2
Inputs 3, 4 & 5
+ve
-ve
+ve
ch1
+ve
ch2
Input 6
(alternative)
in 5
aux 1
in 6
aux 2
supercap
Note:
The NAC 252 AUX 2 input is provided with two sockets. The
lower socket, fitted on delivery with a blanking cover, is intended for
use with a Stageline or Prefix RCA Phono stage and incorporates
an appropriate DC power supply. The two sockets must not be used
simultaneously.
Note:
The RS232/comms interface is an optional upgrade. It can
be specified at time of order or fitted retrospectively. Contact your
local representative or Naim Audio directly for further information.
