Power Amplifier
NAP 500

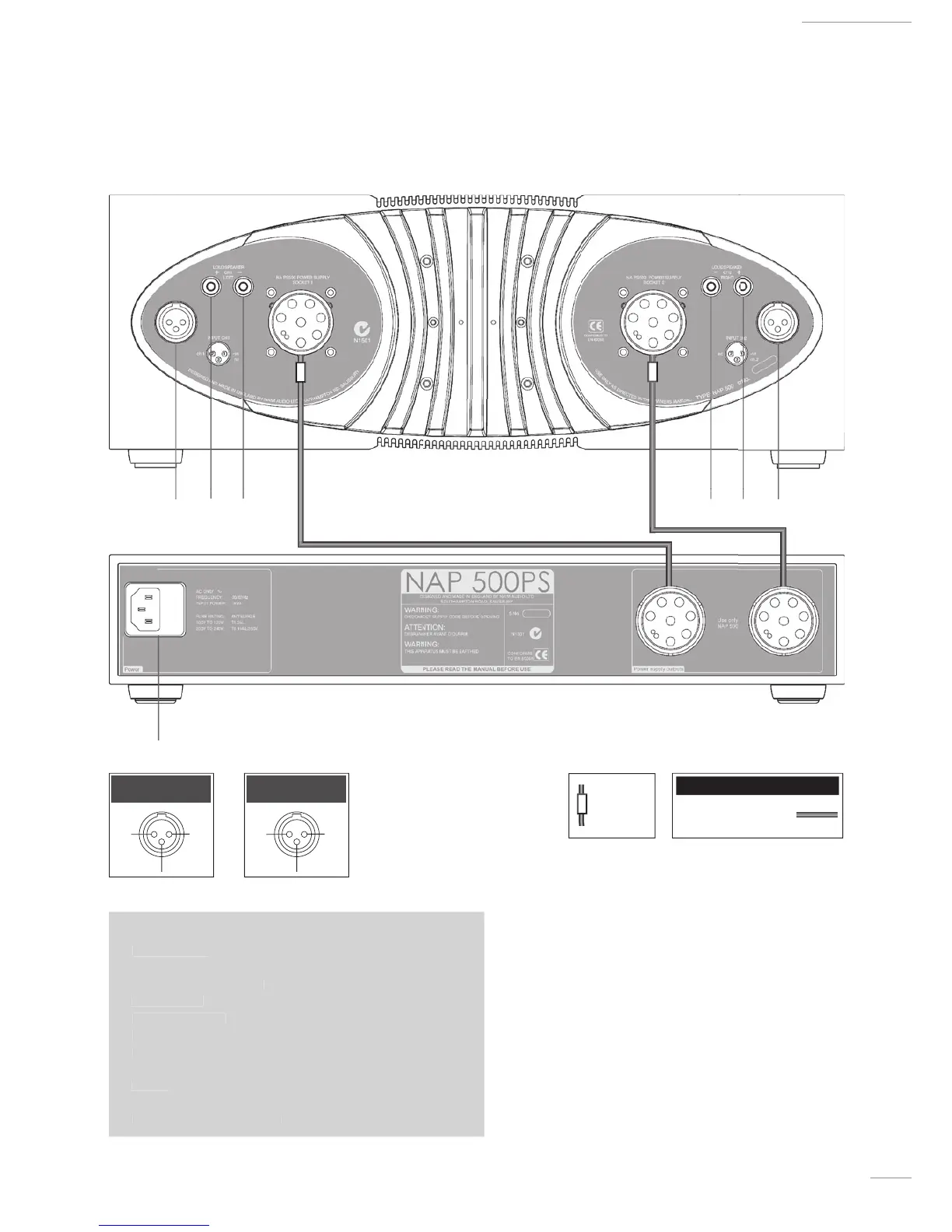

27.1 NAP 500 Connected to NAP 500PS
cable
direction
marker
NAP 500PS Burndy
Interconnect Cables
28 NAP 500/NAP 500PS Specification
Power Output:
140 Watts per channel, 8Ω
700 VA Transient
Quiescent Consumption:
60VA
Voltage Gain:
+29dB
Input Impedance:
18kΩ
Frequency Response:
-3dB @ 1.5Hz and 100kHz
Dimensionss (H x W x D):
NAP 500 - 160 x 432 x 375mm
NAP 500PS - 87 x 432 x 314mm
Weight
NAP 500 - 25kg
NAP 500PS - 15.4kg
Mains Supply (NAP 500PS):
100-120V or 220-240V, 50/60Hz
nc
-ve
ch1
Input Ch1
ch2
-ve
nc
Input Ch2
mains input
and fuse
signal
input ch1
right
speaker
left
speaker
signal
input ch2
