NAIM Amplifiers - Signal in

27
Power Amplifier
NAP 300

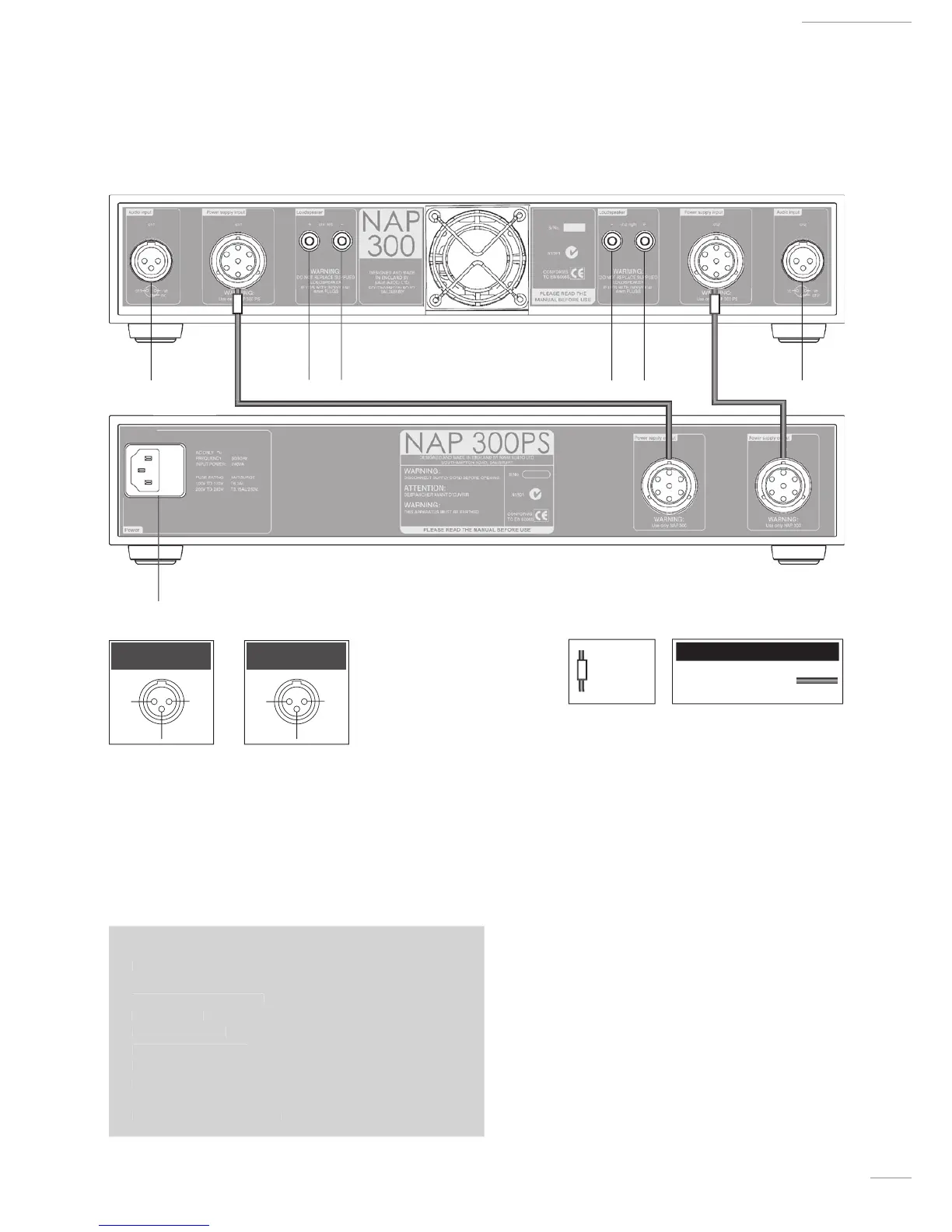

30 NAP 300 Connected to NAP 300PS
cable
direction
marker
NAP 300PS Burndy
Interconnect Cables
31 NAP 300/NAP 300PS Specification
Power Output:
90 Watts per channel, 8Ω
500 VA Transient
Quiescent Consumption:
27VA
Voltage Gain:
+29dB
Input Impedance:
18kΩ
Frequency Response:
-3dB @ 2Hz and 70kHz
Dimensions (H x W x D):
Both - 87 x 432 x 314mm
Weight
NAP 300 - 10.7kg
NAP 300PS - 14.1kg
Mains Supply (NAP 300PS):
100-120V or 220-240V, 50/60Hz
nc
-ve
ch1
Input Ch1
ch2
-ve
nc
Input Ch2
mains input
and fuse
signal
input ch1
right
speaker
left
speaker
signal
input ch2
