E5
NAC 552
source
bank
volume
balance
mute
mono
record
bank
source and
record selection
5.3 NAC 552 Front Panel Controls

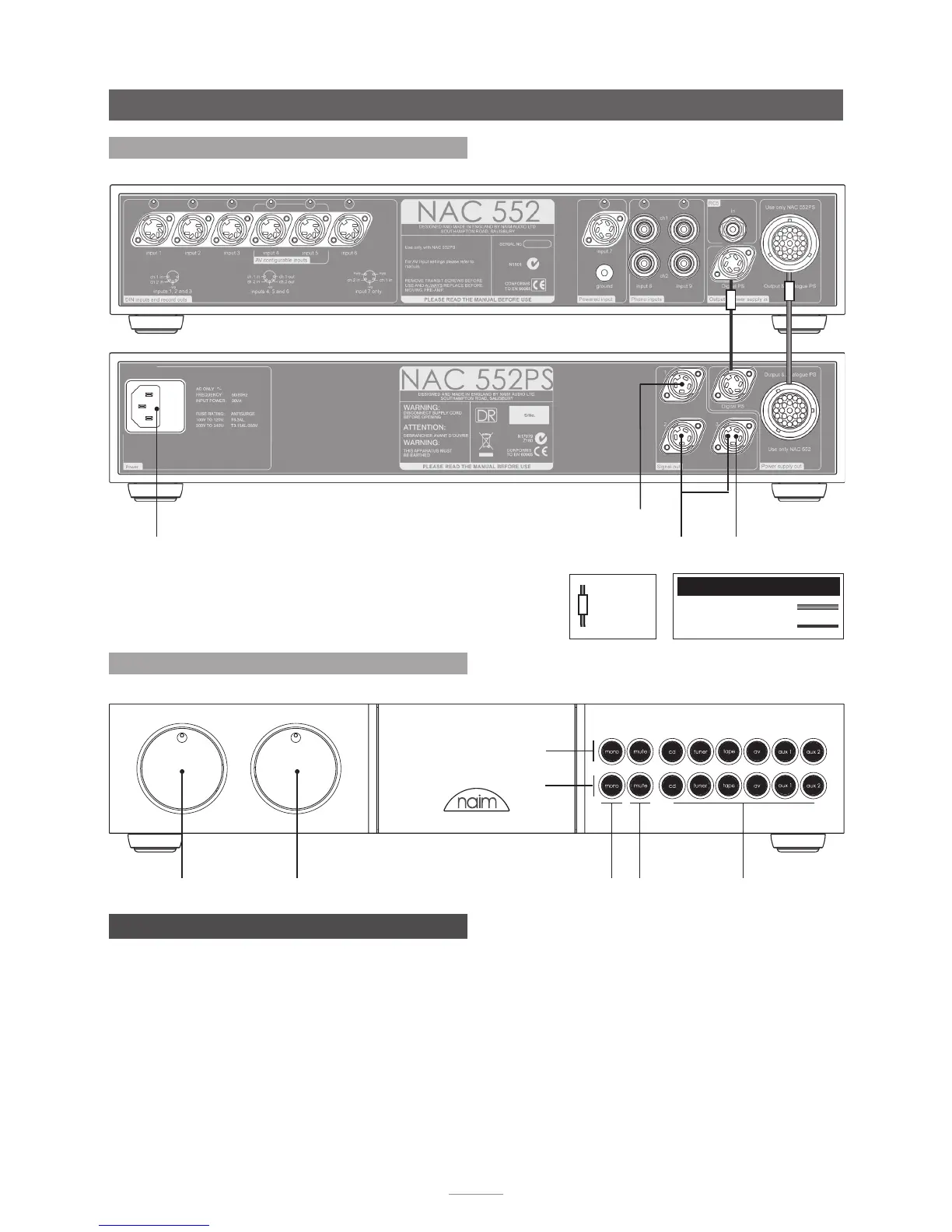

5.2 NAC 552 Connected to NAC 552PS
mains input
and fuse
Note: For best performance the Burndy and 5 pin DIN cables
should be run as close together as possible.
to stereo power
ampliers
to mono or dual mono power
ampliers
additional signal output
cable
direction
marker
NAC 552 Burndy
240° 5 to 5 pin DIN
Interconnect Cables
6 Specification
Input Sensitivities: 75mV, 47k
Overload Margins: 40dB
(all inputs all audio frequencies).
Main Output Level: 0.775V, <50
Tape Output Level: 75mV, 600
Auxiliary Power Outputs: For Naim phono stage
Power Supply: NAC 552PS
Dimensions (H x W x D): Both 87 × 432 × 314mm
Weight: NAC 552 - 12.9kg
NAC 552PS - 13.9kg
Mains Supply (NAC 552PS): 100V, 115V or 230V, 50/60Hz
