NAC 282, NAC 202 & NAC 152 XS
Note: Link plugs must only be inserted in the sockets from which
they were removed and unused power supply sockets must not
be used for any other purpose. Incorrect use of link plugs and
power supply sockets risks significant damage to the power
supply or preamplifier.

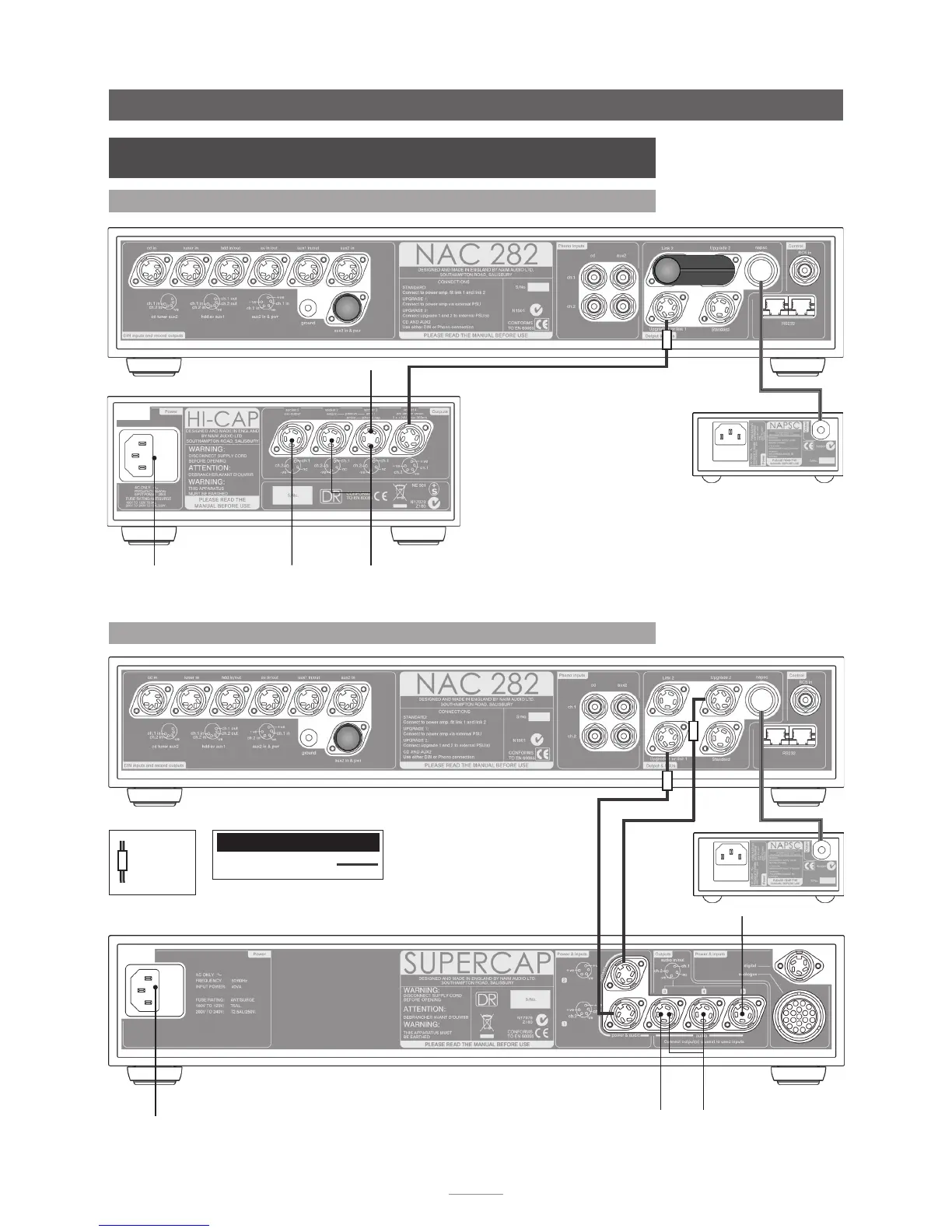

12 NAC 282, NAC 202 and NAC 152 XS
Power Supply Connections
12.1 NAC 282 Connected to Hi-Cap and NAPSC
mains input
and fuse
to stereo power
amplier
to mono or dual mono power
ampliers
additional
signal output
cable
direction
marker
Interconnect Cables
240° 5 to 5 pin DIN
12.2 NAC 282 Connected to SuperCap and NAPSC
mains input
and fuse
to mono or dual
mono power
ampliers
additional
signal output
to stereo power amplier
